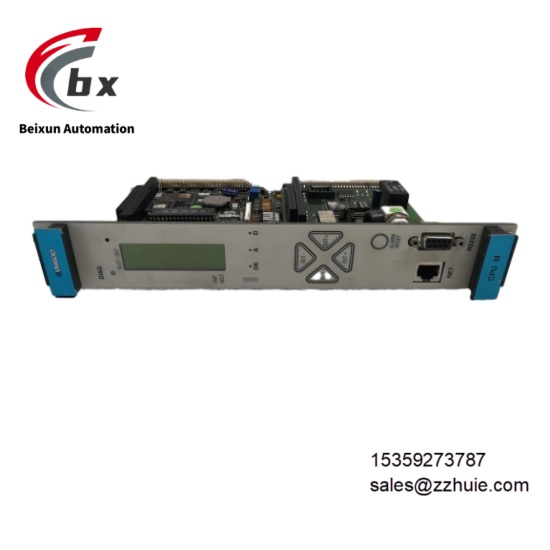

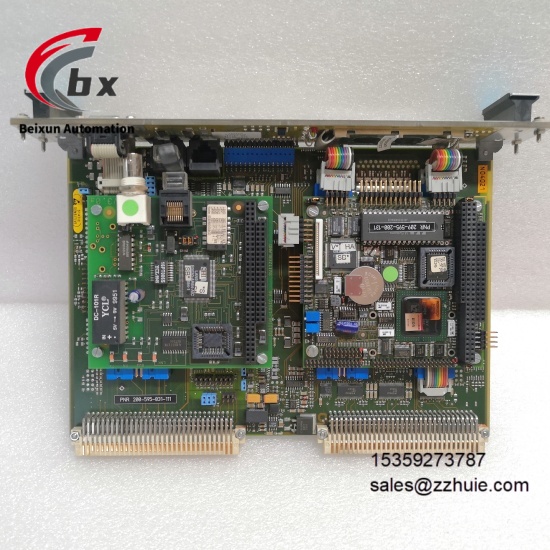

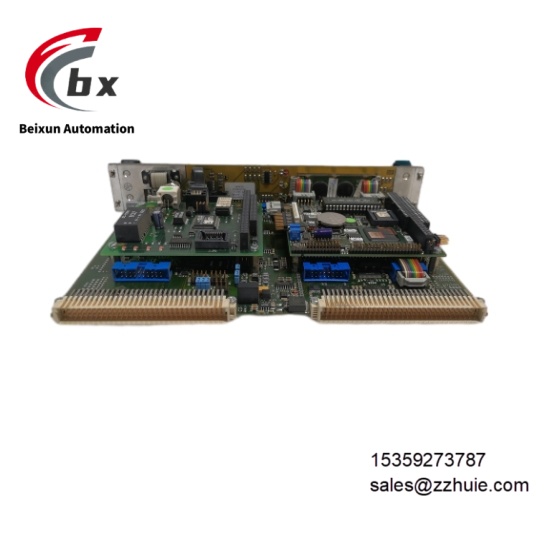

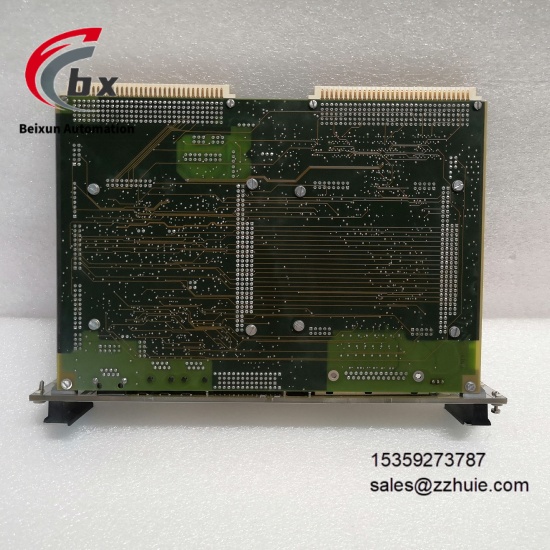

VIBRO-METER VM600 CPUM 200-595-031-111 CPU module
Specific Parameters
Brand VIBRO-METER (Affiliated to Meggitt Group, Original Authentic, Swiss Brand), Product Series VIBRO-METER VM600 Series
Product Type CPU Module, Modular CPU Card, Rack Controller, Communication Gateway, Industrial Control Unit, Core Component of VM600 System, Original Authentic Spare Part
Model VIBRO-METER VM600 CPUM 200-595-031-111
Country of Origin Switzerland
Compatible Devices VM600 Series Racks (ABE04x Series with VME Bus), IOCN Modular Input/Output Cards, MPC4/AMC8 Protection Cards, Industrial Vibration/Temperature/Pressure Sensors, DCS/PLC Systems, Turbomachinery Monitoring Equipment, Rotating Machinery Protection Systems, Computers Running VM600 MPSx Software
Core Functions System Control, Data Communication Gateway, Sensor Data Processing, Protection Card Configuration Management, Event Log Recording, Hot Swapping, Alarm Linkage, Multi-Bus Communication Redundancy, Front-Panel Status Display, Alarm Reset, Vibration Monitoring and Analysis
Product Structure Double-width modular industrial-grade enclosure, occupying 2 VM600 rack slots, equipped with front-panel LED status indicators, display and Alarm Reset (AR) button, clear terminal identification, mechanical anti-misinsertion design, color is industrial gray, some versions with conformal coating to enhance dust and moisture resistance
Processor Configuration Processor Model AMD Geode™ LX800, Processor Speed 500MHz, Memory 256MB DRAM, Module Type PFM-541I or equivalent
Power Input 24VDC (wide voltage adaptation 18-32VDC), Maximum Current 2.0A, can be uniformly powered by VM600 rack
Communication Interfaces 2 Ethernet Interfaces (Front Panel + Rear Panel), 3 Serial Interfaces (Front RS-232, 2 Rear Isolated RS-422/RS-485), supporting Gigabit Ethernet (1Gbps) communication, supporting communication redundancy
Communication Protocols Modbus RTU, Modbus TCP, Profinet, supporting communication with VibroSight® Software and VM600 MPSx Software
Data Processing Supports high signal-to-noise ratio data processing, high-resolution FFT, can process data from 12 connected I/O modules, maximum sampling rate up to 50kHz, measurement frequency range 0-5000Hz, with vibration monitoring and analysis functions, capable of long-term data recording
Output Function 5 output relays for signaling system statuses and alarms, supporting 32 programmable open-collector outputs (linked with IOCN card), configurable output channels for alarm signals or control commands
Dimensions 132mm×140mm×185mm (Height×Width×Depth), double-width design, adapting to standard VME slots of VM600 rack, compact structure for easy installation
Weight Approximately 1.2kg
System Compatibility Can be seamlessly adapted to VM600 series IOCN input/output cards, MPC4/AMC8 protection cards, IRC4/RLC16 relay cards, supports multi-bus communication redundancy, compatible with VibroSight® Software and VM600 MPSx Software, adapted to VM600 6U 19″ rack backplane (ABE04x)
Safety Certifications CE Certification, RoHS Certification, EMC Electromagnetic Compatibility Certification, Industrial-Grade High-Voltage Protection Certification
Maximum Power Consumption 8W
Operating Temperature Range -40°C to +70°C
Storage Temperature Range -40°C to +85°C
Relative Humidity 5% to 95%, Non-Condensing
Protection Class IP20 (Complies with IEC 60529 Standard, Suitable for Cabinet Installation), some versions with conformal coating to enhance dust and moisture resistance
Vibration Resistance Frequency 10-500Hz, Acceleration 15g (Sine Wave), Complies with IEC 60068-2-6 Standard
Shock Resistance Peak Acceleration 50g, Duration 11ms (Half-Sine Wave), Complies with IEC 60068-2-27 Standard
Mounting Method Rack embedded installation, occupying 2 VM600 rack VME slots, installed with IOCN card, supports hot swapping, removable for maintenance online, adapted to 35mm DIN rail for auxiliary installation
Component Standard Adopts industrial-grade high-reliability components, built-in EMI protection module and data processing module, with high-speed data processing capability and sufficient data storage capacity, complying with the reliability standards of industrial machinery protection equipment
Product Performance
Adaptability Performance: Fully compatible with VM600 series ABE04x racks and IOCN input/output cards, can be seamlessly linked with MPC4/AMC8 protection cards and IRC4/RLC16 relay cards, compatible with computers running VM600 MPSx software, adapts to various monitoring scenarios such as turbomachinery and rotating machinery, compatible with supporting software such as VibroSight®, plug-and-play, high integration efficiency, and can be adapted to VM600 rack systems with multiple module slots.
Data Processing Performance: Equipped with AMD Geode™ LX800 500MHz processor and 256MB DRAM memory, with fast data processing speed, can process data from 12 I/O modules without delay, maximum sampling rate 50kHz, measurement frequency range 0-5000Hz, high-resolution FFT ensures the accuracy of data acquisition and processing, with advanced signal analysis and diagnostic algorithms, event logs are complete and traceable, and long-term data storage is achievable.
Safety Performance: Certified by CE, RoHS, EMC and other authoritative standards, with complete EMI electromagnetic interference protection, supports multi-bus communication redundancy, can automatically switch in case of failure to avoid downtime losses, 5 alarm relays can timely feedback system status, front-panel LED indicators and display facilitate fault diagnosis, front-panel Alarm Reset button can quickly handle alarms, some versions with conformal coating enhance environmental adaptability, ensuring the stable operation of equipment and systems.
Communication and Operation Performance: Equipped with Gigabit Ethernet and multiple serial interfaces, supports various industrial protocols such as Modbus and Profinet, can realize seamless communication with third-party systems such as DCS/PLC, supports hot swapping, removable for maintenance online, front-panel display facilitates status monitoring, clear terminal identification, greatly reducing maintenance costs and downtime, and the compact structure is convenient for installation and deployment.
Environmental and Durability Performance: Manufactured with industrial-grade high-protection materials, it can operate continuously and stably for a long time in a wide temperature range of -40°C to +70°C and high humidity environments, has excellent vibration and shock resistance, stable components, strong anti-electromagnetic interference ability, adapts to harsh industrial operating environments such as petrochemical and power industries, and the conformal coating of some versions further improves the protection ability, with a long service life.
