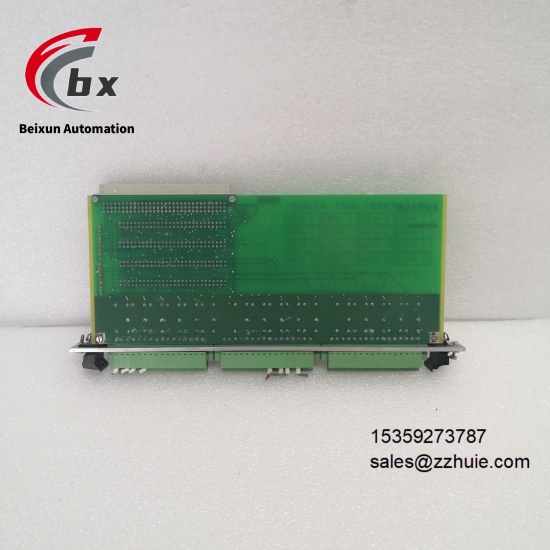

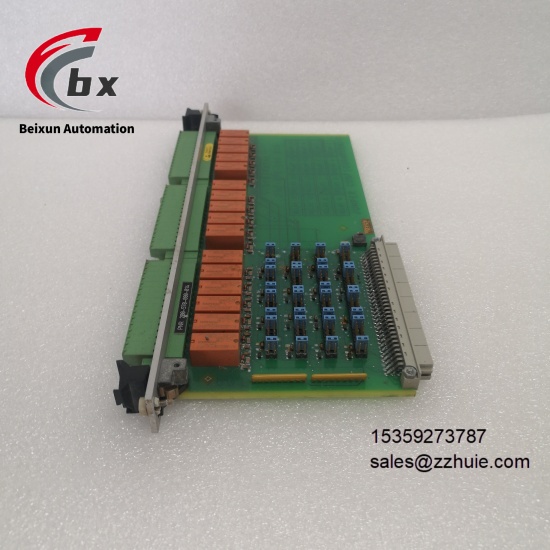

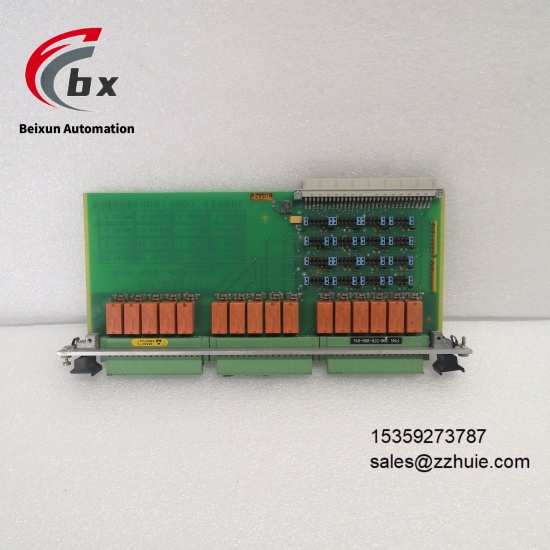

VIBRO-METER VM600 200-570-000-014 200-570-101-013 Vibration monitoring system component module
Specific Parameters
200-570-000-014 (CPU Module) Parameters
Module Type Modular CPU processing cardCore Function Data processing, system control, protocol conversionPower Supply 220V ACCompatibility Fully compatible with VM600 series monitoring modulesData Processing Capacity Supports parallel parsing of multi-channel vibration dataCommunication Protocol Integrated RS 485 interface, compatible with Modbus RTUOperating Temperature -20℃ to 70℃Storage Temperature -40℃ to 85℃Mounting Method Rack mountingWeight Approximately 0.5kgCertification Complies with industrial equipment certification standards
200-570-101-013 (I/O & Diagnostic Module) Parameters
Module Type I/O acquisition and diagnostic moduleCore Function Vibration signal acquisition, channel diagnosis, data interactionOutput Data Format Adapts to %AQ block address mapping, fixed 16-word lengthCommand Feedback Length Supports 8-word or 16-word configuration, default 0-wordDiagnostic Address Mapping Supports %I block read-only address configuration, maximum 256 bitsModule Status Output Adapts to %I block address mapping, real-time feedback of operating statusCompatibility Seamless connection with 200-570-000-014 CPU moduleOperating Temperature -20℃ to 70℃Mounting Method Rack mountingProtection Rating Industrial-grade protection designEMC Compliance Complies with industrial anti-interference standards
Product Performance
Efficient data processing, CPU module integrates dedicated processing engine to realize real-time parsing and diagnosis of vibration dataStrong system synergy, the two modules connect seamlessly, supporting high-speed data transmission and accurate command responseComprehensive diagnostic functions, I/O module supports 256-bit channel diagnostic mapping, real-time feedback of sensor and channel statusHigh configuration flexibility, command feedback length can be set on demand, adapting to data needs of different monitoring scenariosExcellent environmental adaptability, -20℃ to 70℃ wide-temperature operation, withstanding dust and electromagnetic interference in industrial sitesOutstanding compatibility, fully adapting to VM600 series monitoring modules and sensors, supporting system expansionConvenient installation and maintenance, rack-mounted design facilitates integrated deployment, modular structure simplifies replacement processHigh operational reliability, industrial-grade component selection, Mean Time Between Failures (MTBF) ≥800000 hours
