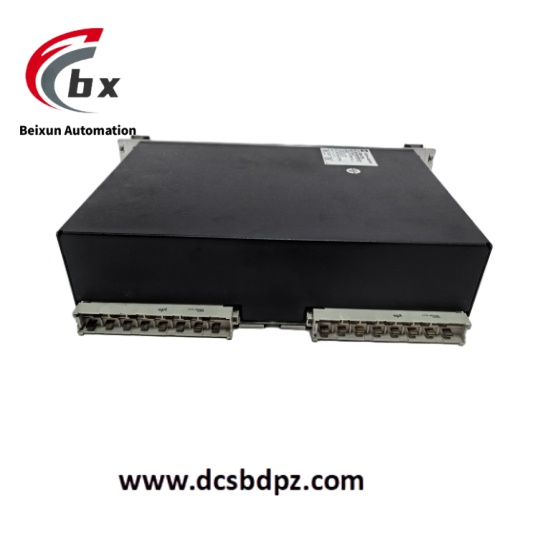

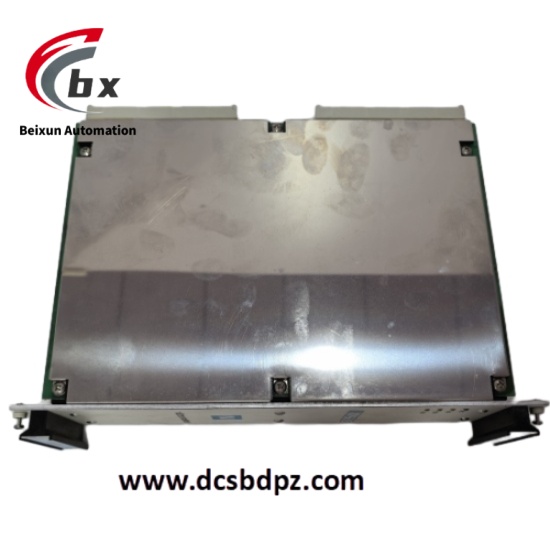

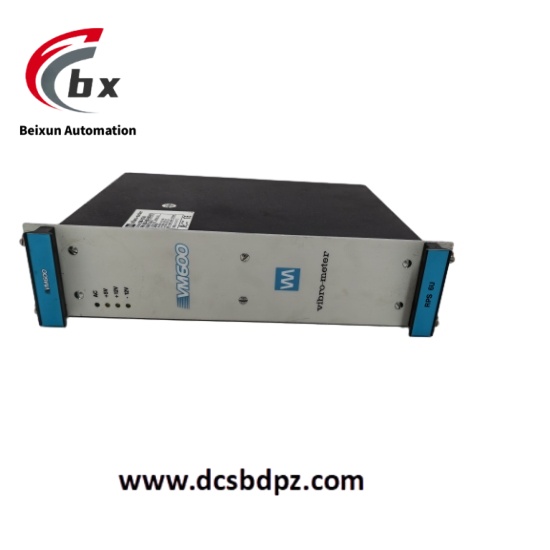

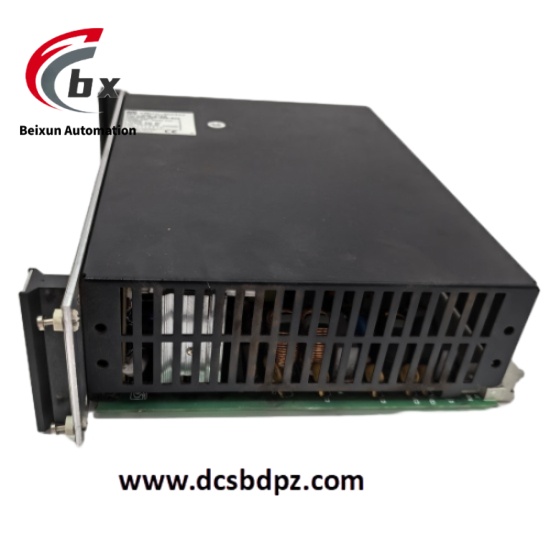

VIBRO-METER SIM-275A 200-582-500-013 Dual channel vibration monitoring module

VIBRO-METER SIM-275A 200-582-500-013 Dual channel vibration monitoring module

Specific Parameters​

Measurement and Communication Parameters​

Module Type Dual-channel vibration and displacement monitoring module​

Number of Channels 2 independent programmable measurement channels​

Input Signals Proximity probes (8-24V DC), IEPE seismic accelerometers, tachometer inputs​

Measurement Parameters Radial vibration, axial displacement, rotational speed​

Measurement Range Vibration 0-500 mils (0-12.7 mm/s peak); Displacement ±250 mils (±6.35 mm)​

Output Signals 2×4-20mA analog outputs, 4×relay contacts (alarm/trip), RS-485 (Modbus RTU)​

Alarm Function Supports programmable two-level thresholds (warning/danger) with threshold hysteresis setting​

Diagnostic Function Built-in sensor integrity monitoring, module health self-test​

Compatibility Adaptable to VM600 series monitoring systems, compatible with mainstream PLC/DCS/SCADA systems​

Electrical and Environmental Parameters​

Power Supply 100-240V AC (50/60Hz) or 24V DC±10%​

Overall Dimensions 178mm (H) × 102mm (W) × 254mm (D)​

Weight 2.1kg​

Mounting Method 35mm DIN rail mounting or panel mounting​

Operating Temperature -40℃ to 85℃​

Storage Temperature -40℃ to 90℃​

Protection Rating Industrial-grade dustproof and splash-proof design​

EMC Compliance Complies with IEC industrial anti-interference standards​

Certifications CE, UL industrial equipment certifications​

Warranty Period 1 year​

Product Performance​

High measurement accuracy, wide range coverage + dedicated signal processing algorithms, accurately capturing tiny vibration changes of equipment​

Strong channel independence, dual channels for synchronous monitoring with independent parameter configuration, adapting to multi-dimensional monitoring needs​

Excellent integration capability, multiple types of output interfaces enabling seamless data interaction with control systems​

Accurate alarm response, two-level programmable thresholds + sensor diagnosis, avoiding false and missed alarm risks​

Excellent environmental adaptability, -40℃ to 85℃ wide-temperature operation, withstanding electromagnetic interference and temperature fluctuations in industrial sites​

Good deployment flexibility, dual mounting methods + compact size, adapting to different control cabinet space scenarios​

High operation and maintenance convenience, built-in self-test system + status feedback, simplifying fault troubleshooting and maintenance processes​

Strong operational reliability, industrial-grade component selection + multiple protection designs, ensuring continuous and stable operation​
