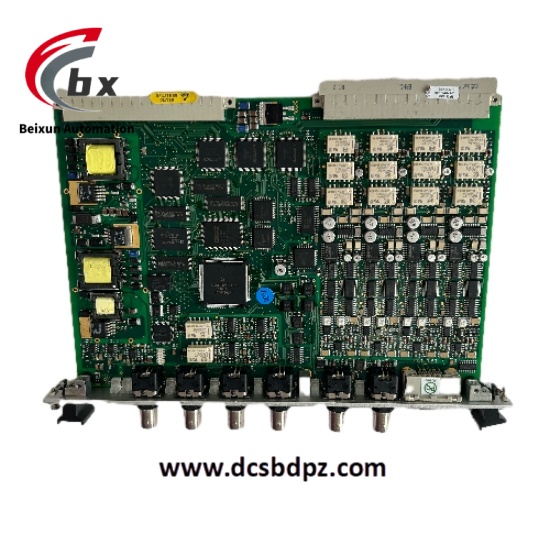

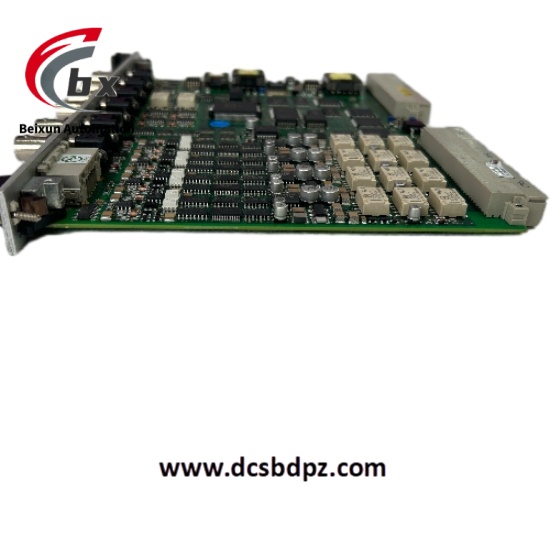

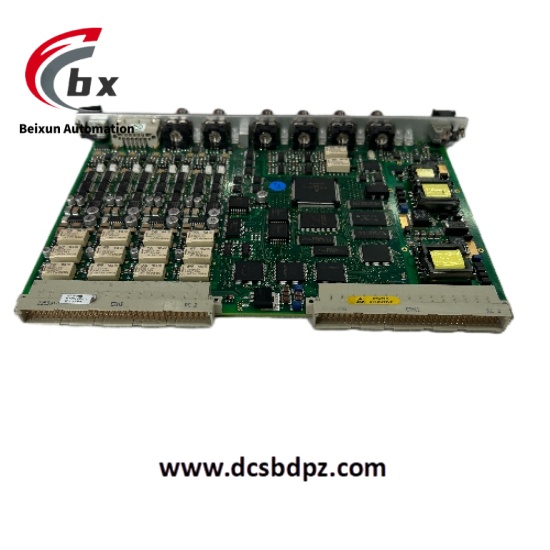

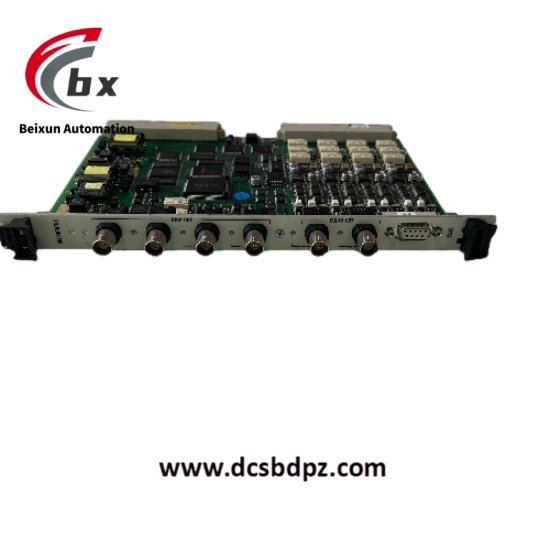

VIBRO-METER MPC4 200-510-078-115 Mechanical protection card module

VIBRO-METER MPC4 200-510-078-115 Mechanical protection card module

Specific Parameters​

Channel and Measurement Parameters​

Channel Configuration 4 dynamic signal channels + 2 speed channels​

Signal Types Supports acceleration, velocity, displacement (proximity probe), dynamic pressure signal input​

Measurement Parameters Relative/absolute vibration, Smax, eccentricity, thrust position, casing expansion, sensor gap​

Frequency Range 0.1Hz to 10kHz (vibration measurement)​

Digital Processing Functions Digital filtering, integration/differentiation, RMS/average/true peak calculation, order tracking​

Analog Output 0-10V voltage signal, 4-20mA current signal​

Speed Input Compatibility Proximity probes, magnetic pulse pick-up sensors, TTL signal systems, supporting fractional speed ratios​

Electrical and Environmental Parameters​

Power Supply 115V AC​

Sensor Power Supply Integrated power for IEPE accelerometers and proximity measurement systems, no external power required​

Alarm Function Programmable alarm/danger thresholds, supporting delay, hysteresis, lock settings, adjustable by speed​

Communication Interfaces Supports RS-232 (front panel), VME-compatible slave interface (standard version)​

Operating Temperature -40℃ to 85℃​

Storage Temperature -40℃ to 90℃​

Overall Dimensions 26cm×16cm×5cm (L×W×H)​

Weight Approximately 0.56kg​

Protection Rating Industrial-grade dustproof and waterproof housing​

EMC Compliance Complies with industrial anti-interference standards​

Mounting Method Rack-mounted (compatible with VM600 series backplanes)​

Certifications Complies with IEC 61508, ISO 13849, API670 standards​

Structural and Functional Parameters​

Version Types Available in standard, separate circuit, safety (SIL) versions​

Status Indication Front panel LED indicators (channel status, alarm prompts, hardware faults)​

Connectors Front panel BNC connectors (raw sensor signal output)​

Hot-swapping Supports real-time hot-swapping, no system shutdown required for maintenance​

Diagnostic Functions Power-on self-test, continuous measurement chain monitoring (sensor/transmission line fault detection)​

Product Performance​

High measurement accuracy, supported by DSP technology + wide frequency range coverage, ensuring signal acquisition accuracy and real-time performance​

Flexible channel configuration, multi-channel independent programming + multi-signal type compatibility, adapting to different mechanical monitoring needs​

Fast protection response, programmable alarm thresholds + millisecond-level signal processing, timely triggering protection actions​

Comprehensive diagnostic capabilities, built-in OK system + self-test program, real-time feedback of equipment and measurement chain status​

Strong integration, supporting integrated sensor power supply + standard analog output, seamless connection to DCS/SCADA systems​

Excellent environmental adaptability, -40℃ to 85℃ wide-temperature operation, withstanding industrial dust, moisture and electromagnetic interference​

Convenient operation and maintenance, hot-swappable design + front panel operation interface, simplifying installation and replacement processes​

High operational reliability, industrial-grade structural design + multiple certifications, excellent Mean Time Between Failures (MTBF)​
