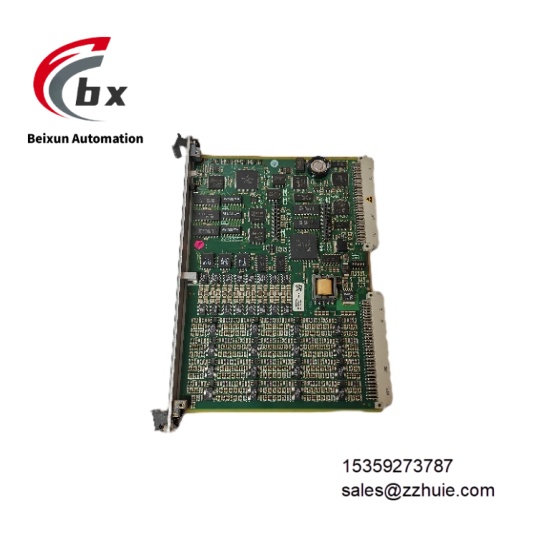

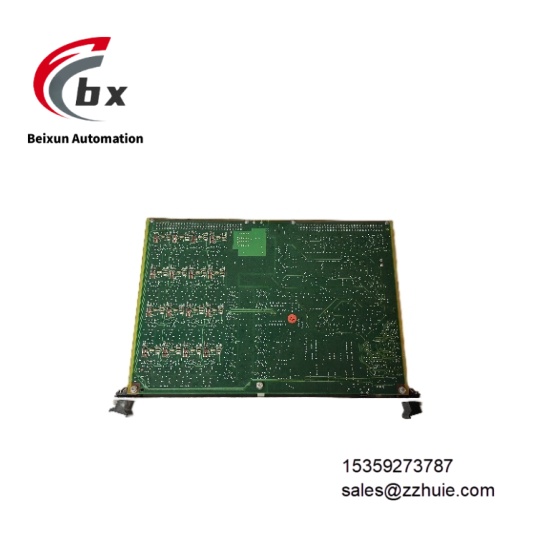

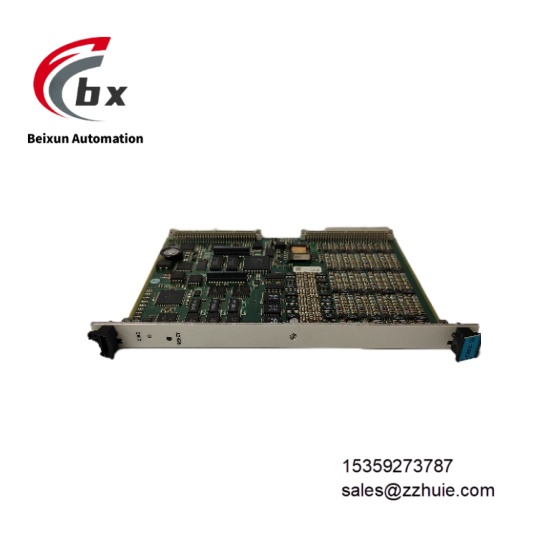

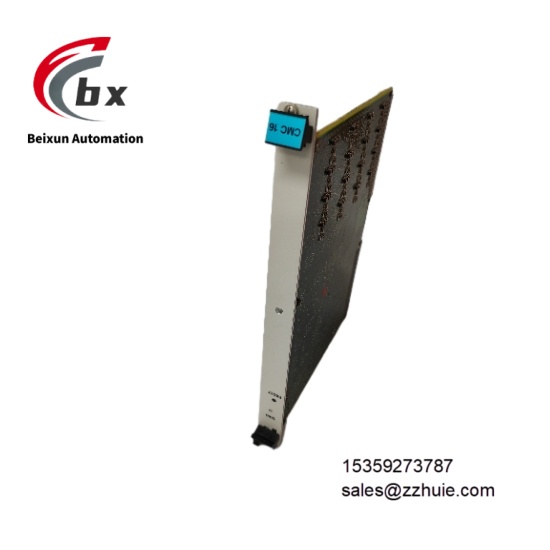

VIBRO-METER CMC16 200-530-111-013 Industrial grade 16 channel status monitoring card

VIBRO-METER CMC16 200-530-111-013 Industrial grade 16 channel status monitoring card

Specific Parameters​

Channel and Measurement Parameters​

Channel Configuration 16 independent programmable dynamic channels​

Channel Function First 4 channels configurable as tacho inputs, last 12 channels as process value inputs​

Input Signal Types Vibration (acceleration/velocity/displacement), rotational speed, phase reference, dynamic pressure, rotor air gap, quasi-static signals​

ADC Specification 1 ADC per channel, 14-bit resolution, data transmission as 12-bit + sign (1/4096 resolution)​

Sampling Function Supports programmable synchronous/asynchronous sampling, maximum sampling rate 1024Hz​

Signal Processing 3200-line high-resolution FFT, 10 configurable processed outputs per channel (frequency/time domain)​

Input Voltage Range 1-24V pulse, AC coupled in -24V/+24V range​

Measurement Accuracy ±1%​

Vibration Resolution 0.025mm/s​

Frequency Range 200Hz to 530Hz​

Electrical and Environmental Parameters​

Power Supply 24V DC​

Communication Interfaces Ethernet, RS-485 (supports protocols like Modbus)​

Alarm Function 6 configurable alarms per processed output, with hysteresis dead bands​

Storage Function On-board buffer storage, supports scheduled/alarm-triggered/exception-triggered logging​

Overall Dimensions 163×38×58mm​

Weight Approximately 0.5kg​

Mounting Method VME architecture compatible, rack-mounted​

Operating Temperature -20℃ to +70℃​

Storage Temperature -40℃ to +80℃​

Status Indication 3-colour LED indicator on front panel​

Protection Features EMC protection provided via IOC16T module​

Hot-swapping Supports live insertion/removal with automatic configuration​

System Compatibility Parameters​

System Affiliation Compatible with VM600 Series Condition Monitoring System​

Connected Modules Compatible with MPC4 machinery protection card, IOC16T signal conditioning module, CPUM central processing module​

Upper-level Communication Supports data transmission via VM600 CPU module Ethernet controller or direct serial link​

Software Compatibility Requires VM600 CMS software for operation​

Product Performance​

High channel integration, 16 independent channels + multi-function configuration, meeting multi-parameter synchronous acquisition needs​

Accurate signal processing, 14-bit ADC + 3200-line FFT, ensuring analysis accuracy of vibration and dynamic parameters​

Flexible triggering mechanism, supporting multiple logging trigger modes for precise capture of key data​

Strong communication scalability, dual communication interfaces adapting to different industrial network architectures with stable data transmission​

Excellent operation and maintenance convenience, hot-swappable design + automatic configuration, no system shutdown required for module replacement​

Good system compatibility, seamlessly connecting with VM600 series protection cards and controllers to build a complete monitoring system​

Strong environmental adaptability, wide temperature operating range, adapting to harsh industrial scenarios with EMC protection​

Reliable alarm response, multi-level configurable alarms + hysteresis design, avoiding false and missed alarms​
