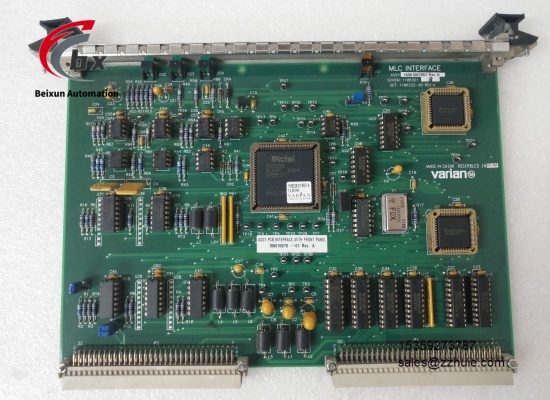

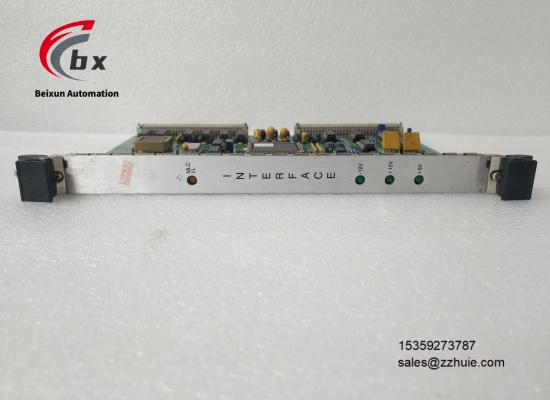

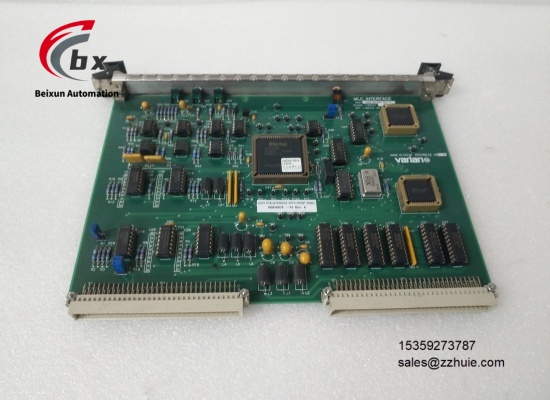

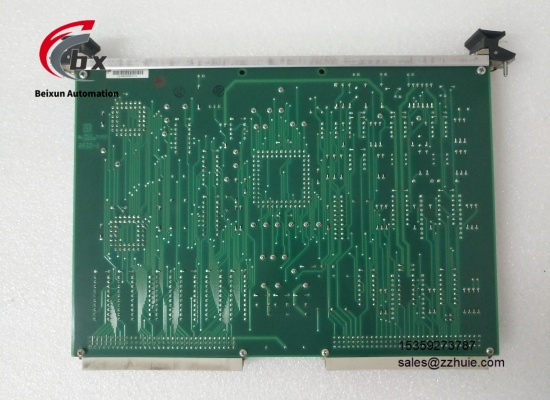

VARIAN 100010078-01 Interface plugin board module

VARIAN 100010078-01 Interface plugin board module

Specific Parameters

Brand VARIAN

Product Series 110531004 Series

Product Type MLC Interface Plug-In Board, Radiation Therapy Equipment Interface Component

Model 100010078-01

Physical Dimensions 23mm×25mm×28mm

Physical Weight 1.05kg

Core Components 2 PC16552D Transceivers (with FIFO), ACT 1 Series FPGA

Interface Type Plug-In Connector

Compatible Equipment VARIAN Radiation Therapy Linear Accelerator, VARIAN Millennium MLC

Rated Power Supply 24VDC

Operating Temperature Range 0℃ to 50℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Level IP20

Certification Standards CE, FDA, IEC 60601-1

Core Functions Control Command Transmission, MLC Status Feedback, Signal Conversion, MLC Leaf Motion Control Adaptation

Mounting Method Plug-In Installation (Compatible with Accelerator Dedicated Slot)

Warranty Period 12 Months

Country of Origin United States (USA)

Product Performance

Adopting a dedicated interface design, it can be seamlessly connected to the Varian radiation therapy linear accelerator control system and MLC hardware, realizing accurate transmission of control commands and status signals, ensuring stable and delay-free communication, and guaranteeing the normal operation of the MLC system.

Integrated with 2 PC16552D transceivers (with FIFO) and an ACT 1 series FPGA, it has efficient data processing capability, can quickly respond to control system commands, accurately drive MLC leaf movement, realize precise shaping of the radiation beam, and meet the needs of precise tumor treatment.

Manufactured with high-quality medical-grade components, it has passed strict quality inspection and reliability testing, operates stably without vulnerable components, can adapt to the long-term operation needs of medical radiation therapy scenarios, and ensure the safety and continuity of the treatment process.

Adopting a plug-in design, it is easy to install and disassemble without professional and complex tools, enabling quick module replacement and maintenance, minimizing the downtime of radiation therapy equipment, and improving the work efficiency of medical institutions.

It has complete signal anti-interference capability, can resist electromagnetic interference generated during the operation of radiation therapy equipment, avoid signal transmission errors, ensure the movement accuracy of MLC leaves, and guarantee the accuracy of radiation therapy.

The operating temperature range covers 0℃ to 50℃, adapting to the conventional operating environment of medical equipment, and the storage temperature range reaches -40℃ to 85℃, facilitating the transportation and long-term storage of equipment without temperature and humidity adaptability issues.

Certified by CE, FDA and IEC 60601-1 medical equipment safety standards, it fully complies with global medical equipment safety standards and can be directly applied to radiation therapy scenarios of various medical institutions without additional safety testing.

Compatible with multiple Varian radiation therapy linear accelerators and MLC multi-leaf collimators, it has strong versatility, can be seamlessly integrated into existing Varian radiation therapy systems, and does not require large-scale modification of the system.

The rated power supply is 24VDC with low power consumption, no obvious heat generation during operation, does not affect the overall operational stability of the radiation therapy equipment, and conforms to the energy conservation and consumption reduction needs of medical equipment.
