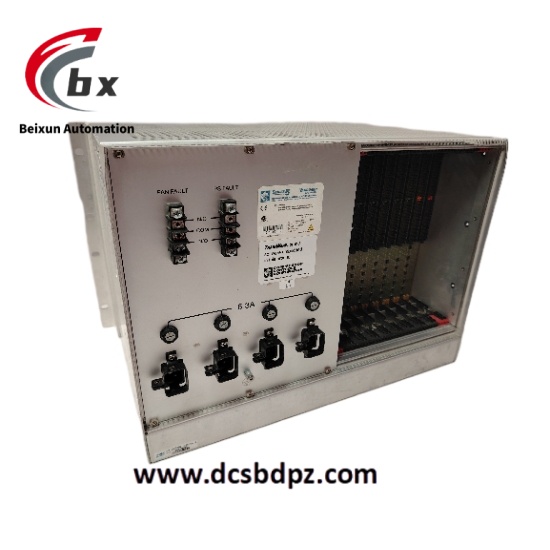

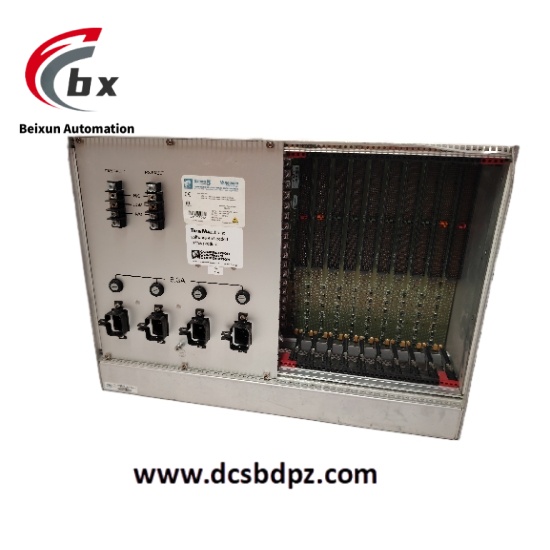

Vanguard CPCI-10-D2 System chassis

Power Supply Type: Redundant power supply system

Rated Power: Supports 250W/500W two configurations

Input Voltage: AC 100-240V, 50/60Hz

Slot Configuration: 10 Compact PCI standard slots (including 1 system slot + 9 expansion slots)

Bus Standard: Compatible with CPCI 32-bit/64-bit bus, supporting 66MHz operating frequency

Cooling Control: Intelligent temperature-controlled fan, supporting automatic speed adjustment

Monitoring Function: Built-in power status monitoring and fan fault alarm circuit

Operating Temperature Range: 0°C to +55°C (no condensation)

Storage Temperature Range: -40°C to +85°C

Relative Humidity: 5% to 95% RH (no condensation at 40°C)

Vibration Resistance: Complies with IEC 60068 standard (10Hz-500Hz, 5g acceleration)

EMC Compliance: Complies with EN 55022 Class A standard

Protection Class: IP20 (protection against solid foreign objects)

Mounting Method: 19-inch standard rack mounting, wall-mounted mounting, desktop mounting

Overall Dimensions: 3U specification (132.3mm×482.6mm×220mm)/6U specification (264.6mm×482.6mm×220mm) (H×W×D)

Housing Material: High-strength aluminum alloy (surface anodized)

Weight: 3U version ≤5kg, 6U version ≤8kg

Front Panel: Metal material with ventilation holes and status indicators (power, fan, system operation)

Backplane Design: Adopts 2mm density pin connector, supporting hot-swap function

High Expandability: 10-slot architecture supports system-level expansion, allowing simultaneous access to CPU modules, data acquisition cards, communication interface cards, etc. A single chassis supports up to 64 digital I/O channels expansion, meeting the needs of complex industrial control scenarios.
Redundant Reliability: Dual redundant power supply design ensures uninterrupted system operation in case of single power failure, with Mean Time Between Failures (MTBF) ≥150,000 hours, meeting the reliability requirements of key industrial systems.
Intelligent Cooling: Directional air duct design improves heat dissipation efficiency by 30%. Fan speed is automatically adjusted (2000-5000rpm) according to the internal temperature of the chassis, and the module temperature can be controlled within ambient temperature +15°C during full-load operation.
Environmental Adaptability: -40°C to +85°C storage temperature range and IEC 60068 vibration resistance standard ensure stable operation in harsh environments such as rail transit and field communication stations without additional protective measures.
Easy Maintenance: Supports hot-swap of CPCI modules, no need to power off when replacing faulty modules, and maintenance time is reduced to less than 5 minutes. Front panel status indicators can display power, fan and bus status in real time, facilitating fault location.
