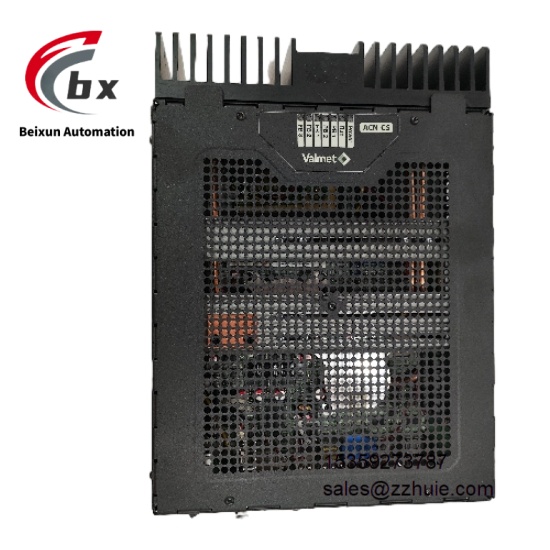

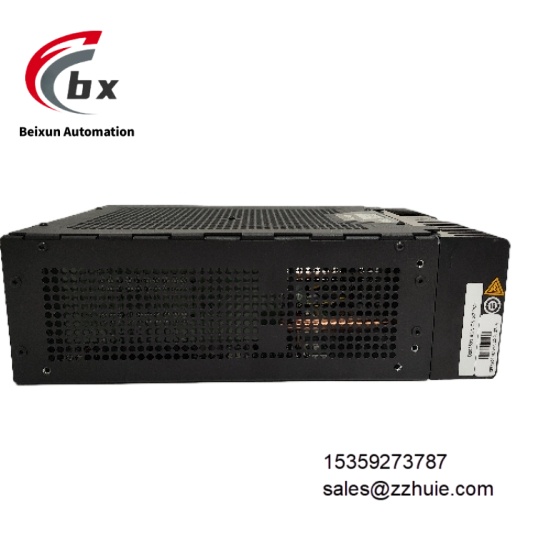

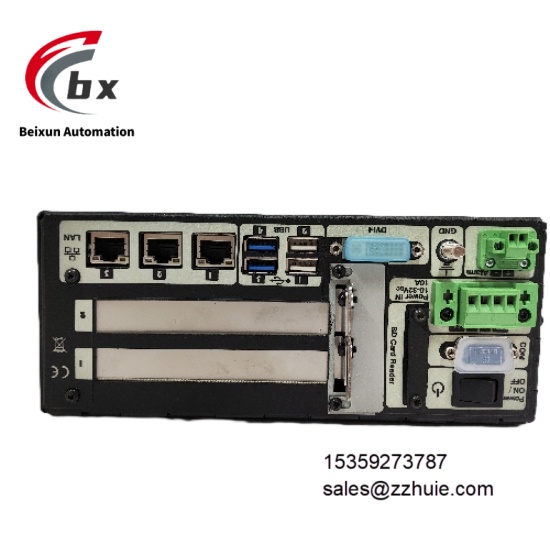

Valmet D202593 controller module

Specific Parameters

Electrical Parameters
Bus Type: Profibus DP
Transmission Rate: Up to 12 Mbaud
Power Supply: 10-32V DC
Interface Configuration: Ethernet interface, Serial interface
Connection Capacity: Up to 24 I/O modules connectable
Protection Functions: Integrated overload protection, short-circuit protection
Signal Processing: Supports real-time data acquisition and logic control signal output
Environmental Parameters
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 10% to 95% (non-condensing)
Protection Rating: IP67
EMI Immunity: Complies with industrial-grade EMC standards
Vibration Resistance: 5-150Hz, 1g acceleration (IEC 60068-2-6 standard)
Mechanical Parameters
Dimensions: 85mm×30mm×25mm
Weight: 150g
Mounting Method: DIN rail mounting
Housing Material: Flame-retardant engineering plastic (UL 94 V-0 grade)
Connector Type: Industrial-grade pluggable connector
Indicators: Power status (green), communication status (yellow), fault alarm (red)

Product Performance

Adopting high-performance processor, it can efficiently execute complex control algorithms and real-time data processing. Combined with Profibus DP transmission rate up to 12 Mbaud, the data response time is ≤10ms. The modular design supports flexible system expansion and upgrade, enabling I/O module addition/removal without shutdown, adapting to control scenarios of different scales.

Supports remote monitoring and fault diagnosis functions, enabling real-time status visualization and abnormal early warning through Valmet DNA system, improving maintenance efficiency. IP67 protection rating and wide-temperature design ensure stable operation in humid, dusty, high and low temperature environments, with MTBF ≥500,000 hours.

The integrated overload and short-circuit protection mechanisms can cut off abnormal circuits within 0.1ms, protecting the module and connected equipment. Compatible with Valmet full range of I/O modules, it supports cross-device collaborative control, meeting complex control requirements of process industry.
