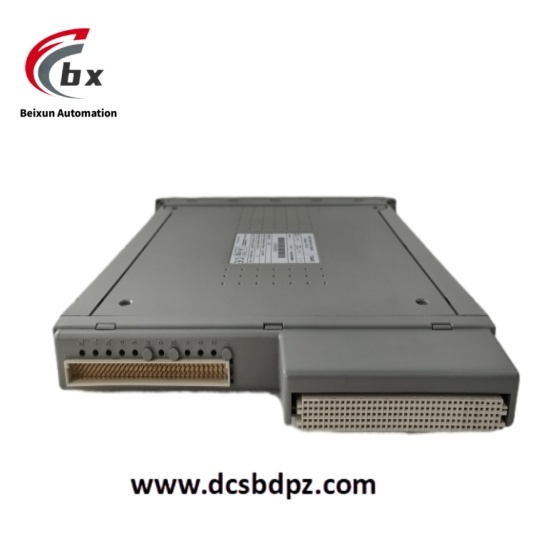

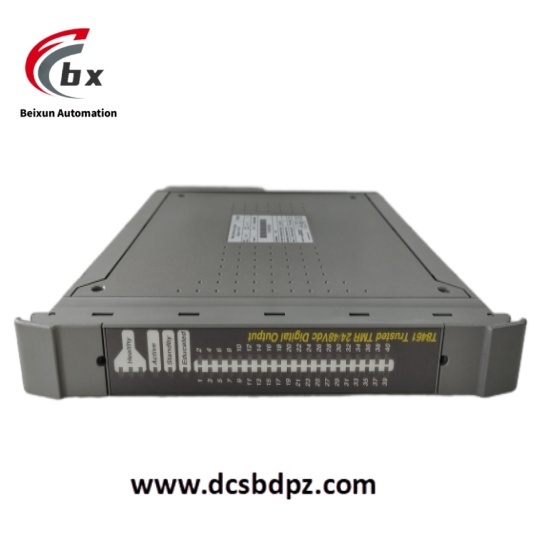

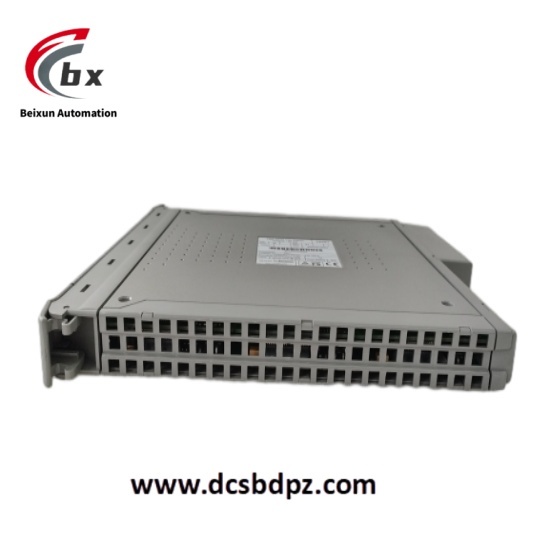

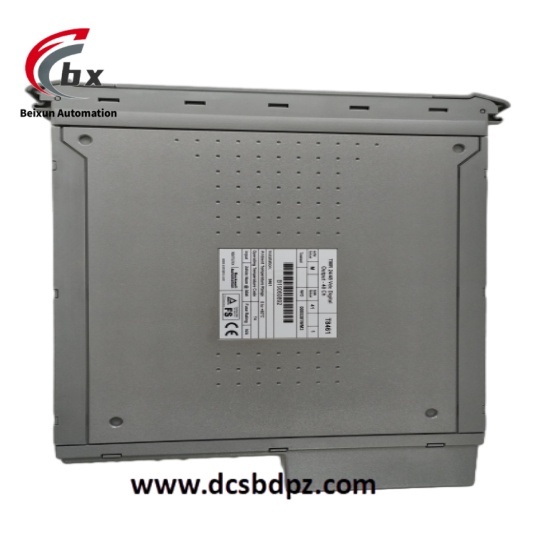

TRICONEX T8461 High performance digital output module
Specific parameters
System power supply voltage range: 20 to 32Vdc.
Output quantity: 40 channels.
Independent power pack: 8 outputs, 5 each.
Work output/on-site voltage range: 18 to 60V DC.
Output voltage measurement range: 0 to 60V DC, with a tolerance of -1 to 60V DC.
Rated output current (continuous): 0.75A per channel, 6A per power pack.
Load current in conducting state: 25mA.
Output off state resistance (effective leakage current): 33k Ω.
Output conduction state resistance: 0.6 Ω.
Power consumption: The on-site power supply of 24V (0.75A per channel) is 18W, and the system power supply (24V) is 22W.
Dimensions: 170x100x30mm.
Weight: 1.32kg.
Working temperature range:- 20 ° C to+70 ° C, capable of withstanding extreme temperatures from -40 ° C to+85 ° C.
Environmental compliance: CE, UL, CSA certification.
Performance characteristics
High reliability: Adopting triple modular redundancy (TMR) design, each output point has three independent output channels to ensure the reliability of the output signal, prevent single point failures, and improve the system’s fault tolerance.
Flexible configuration: Supports multiple output types and configuration options, and can be flexibly set according to different application needs to meet diverse control requirements.
Automatic diagnosis: With automatic diagnosis function, it can continuously monitor the health status of the system, timely detect potential problems, and provide real-time visual feedback through the LED on the front panel, displaying the output status and module health status.
Line monitoring: It can detect open circuits, short circuits, and on-site wiring faults to ensure the stable operation of the system.
Safety certification: Compliant with relevant safety standards, such as IEC 61508, suitable for SIL 3 applications, providing assurance for safety critical applications.
