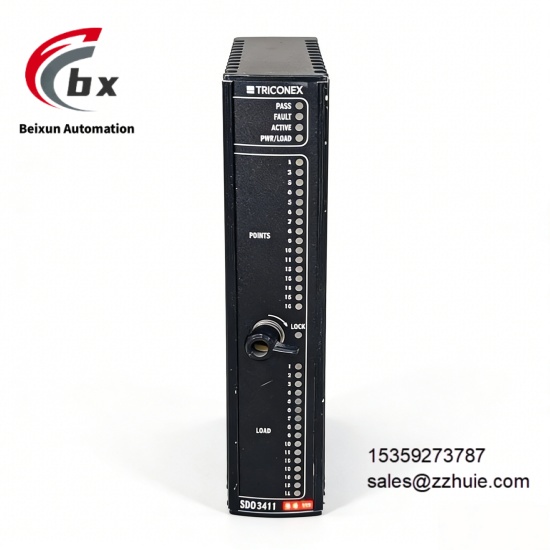

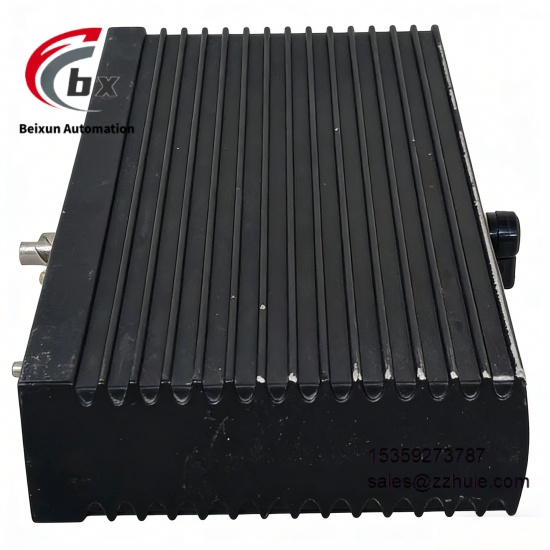

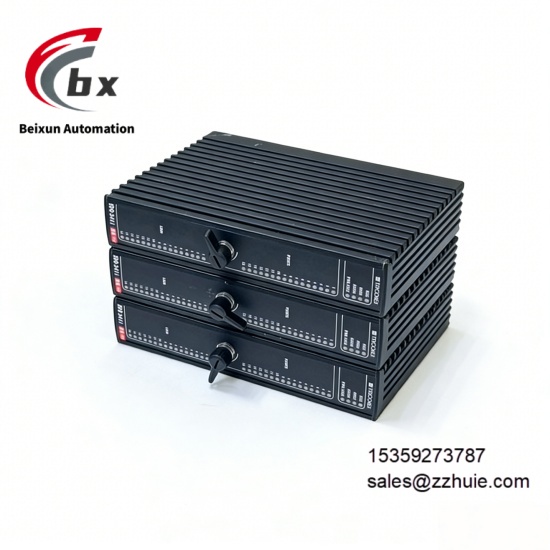

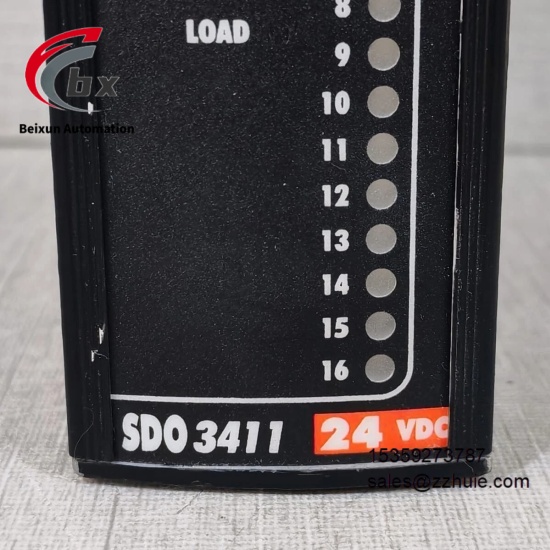

TRICONEX SDO3411 Digital output control module
Specific Parameters
Rated Operating Voltage 24VDC
Voltage Range 20-30VDC
Operating Temperature Range -40℃ to +70℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Output Type Relay Output
Channel Number 8 Independent Digital Outputs
Output Current Maximum 5A per Channel
Output Voltage Maximum 250VAC/30VDC
Protection Class IP20
Mounting Type Standard 35mm DIN Rail Mounting
Power Consumption ≤10W
Communication Protocols Supports Modbus RTU, TCP/IP Protocols
Safety Certification Complies with IEC 61508 SIL 3 Certification, ATEX Explosion-Proof Certification
Overall Dimensions 175mm×105mm×85mm
Response Time ≤1ms
Product Performance
High Redundancy and Fault Tolerance Performance: Adopts TMR triple redundant microprocessor hardware technology, with a complete redundant design architecture, no single point of failure, can automatically detect and isolate faults, and does not affect the overall operation of the system when a fault occurs, ensuring the continuity and stability of the industrial safety control process.
High Safety Performance: Complies with IEC 61508 SIL 3 certification and ATEX explosion-proof certification, with overvoltage, overcurrent, short-circuit and overload protection functions, which can effectively prevent module damage and equipment misoperation, meeting the safety requirements of high-risk industrial scenarios.
High-Speed Response Performance: The output response time is ≤1ms, which can quickly execute system control commands, accurately complete digital signal output without delay or lag, meeting the real-time requirements of industrial safety control.
Stable Output Performance: The output current of each channel can reach 5A, supporting a wide voltage output range, the output signal is stable without jitter or attenuation, and can directly drive various industrial actuators to ensure the accurate implementation of control commands.
Easy Maintenance Performance: Supports online hot swapping, the module can be replaced without stopping the system operation, equipped with complete self-diagnostic functions and remote monitoring tools, which can quickly locate fault points, shorten maintenance time and reduce operation and maintenance costs.
Wide Environmental Adaptability Performance: The operating temperature covers -40℃ to +70℃, which can operate stably in extremely cold or high-temperature environments, adapts to various harsh industrial sites, no constant temperature control required, and trouble-free operation all-weather.
Communication Compatibility Performance: Supports Modbus RTU and TCP/IP protocols, can be seamlessly connected to DCS and PLC systems, supports remote equipment diagnosis and parameter configuration, ensuring smooth system linkage and centralized management and control.
