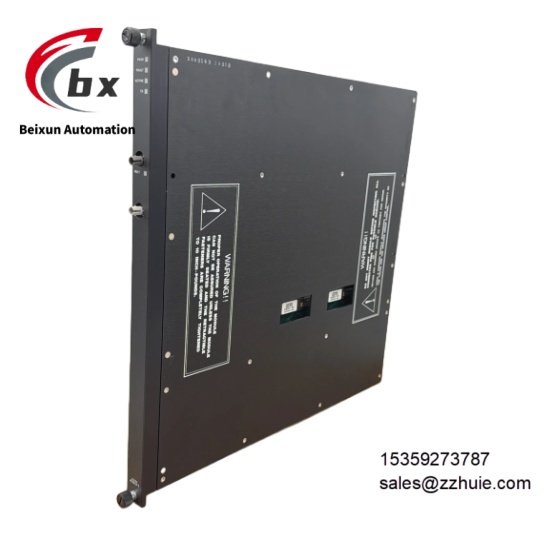

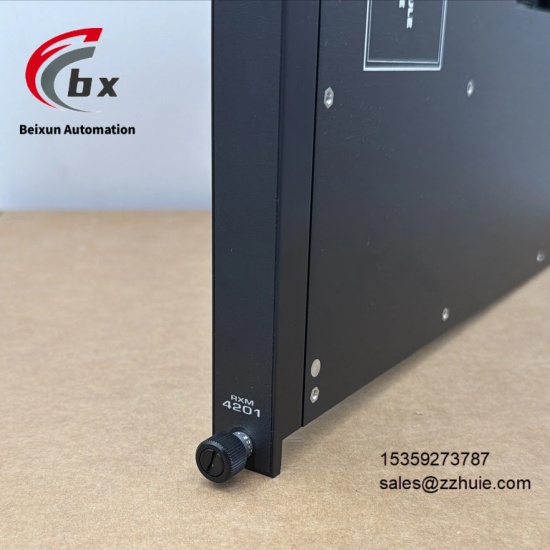

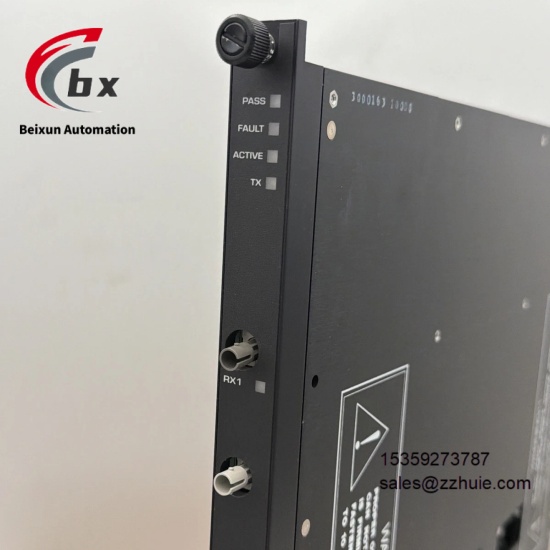

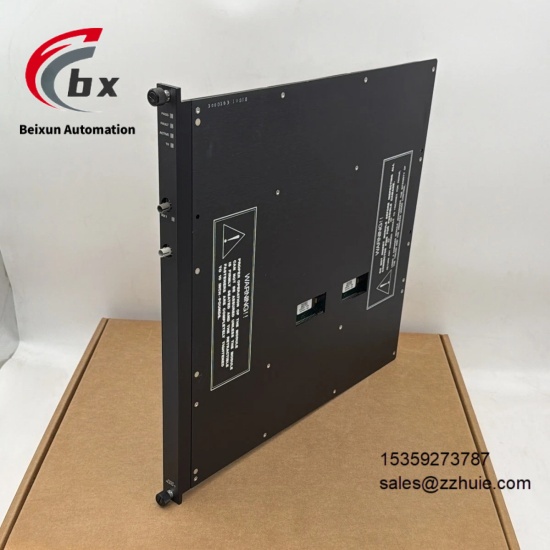

TRICONEX RXM4201 7400089-100 Triple redundant remote I/O module

TRICONEX RXM4201 7400089-100 Triple redundant remote I/O module

Specific Parameters

Operating Voltage 24VDC

Power Consumption ≤5W

Net Weight 1.8kg

Dimensions 19-inch 3U rack-mount specification

Operating Temperature Range -40℃ to +71℃

Storage Temperature Range -40℃ to +85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP65

Communication Interfaces Optical fiber interface, RS-232, RS-485, Ethernet

I/O Points Scalable up to 256 points

Processing Capacity 800 MIPS

Input Signal Types Various analog signals such as voltage, current, thermocouple

Output Signal Types Analog output, digital output

Communication Distance Supports remote expansion, up to 2km

Certification Standards IEC61508, SIL 3

HS Code 8537101190

Product Performance

Communication Performance: Supports optical fiber communication and multiple communication interfaces including RS-232, RS-485 and Ethernet, with strong anti-interference ability and fast transmission rate. It can realize remote I/O expansion with a maximum communication distance of 2km, ensuring stable transmission between on-site signals and the main controller, and guaranteeing the accuracy and real-time performance of data transmission.

Adaptability Performance: Specifically designed for the TRICONEX TMR fault-tolerant Safety Instrumented System, it can be seamlessly integrated into TRICONEX Trident and other safety control systems. The number of I/O points can be expanded to 256, supporting various analog and digital signal types, adapting to the signal processing needs of different industrial scenarios, supporting hot-swapping, and allowing online module replacement without interrupting production operations.

Safety Performance: Adopts the TMR redundancy design concept, meets SIL 3 safety integrity requirements, complies with IEC61508 standards, has complete fault tolerance, and a single component failure will not affect the normal operation of the module. It can effectively protect the safe and stable operation of the system and associated on-site equipment, adapting to safety-critical application scenarios.

Stability Performance: Uses industrial-grade high-quality components with strong wide-temperature adaptability, ensuring long-term stable operation in the range of -40℃ to +71℃ without frequent faults. The protection class reaches IP65, with good environmental adaptability, which can meet the long-term continuous operation needs of harsh industrial environments.

Operation and Maintenance Performance: Modular structure design enables easy installation and disassembly, supports online module replacement and maintenance. Equipped with built-in fault diagnosis function, it can quickly locate fault points, facilitating timely troubleshooting and problem solving. It is matched with special debugging tools to reduce daily operation and maintenance costs and improve operation and maintenance efficiency.
