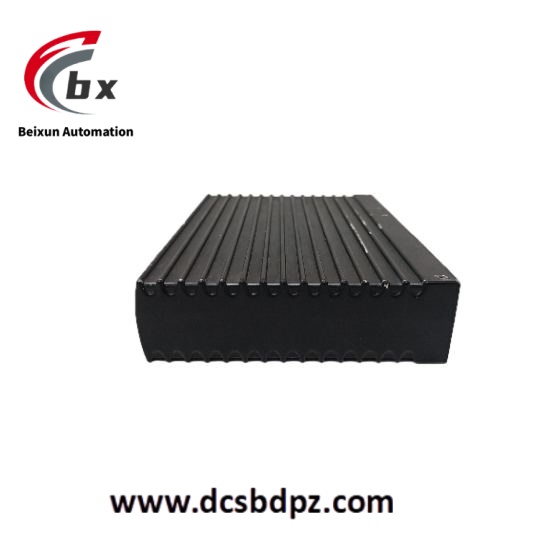

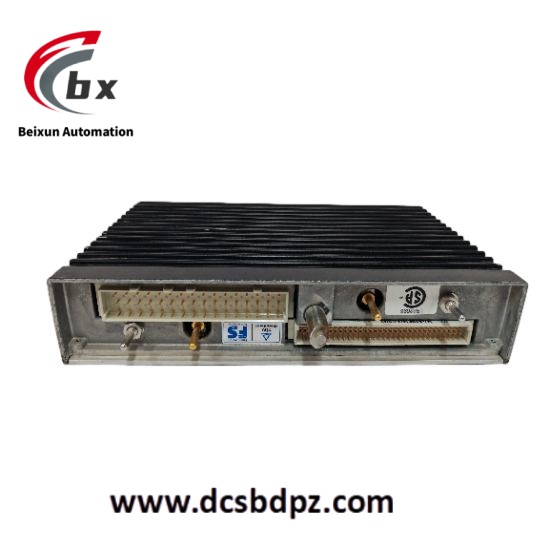

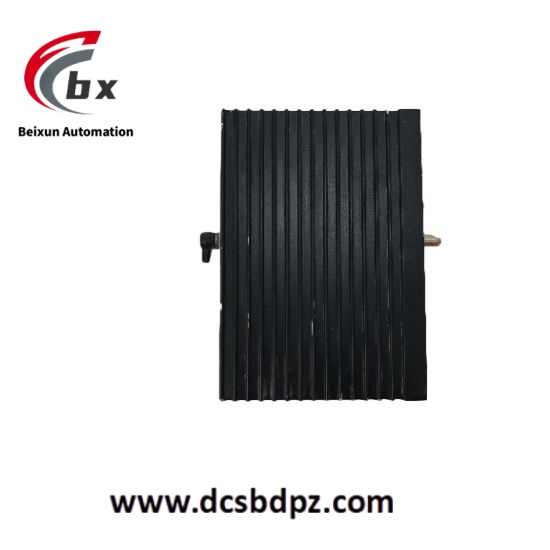

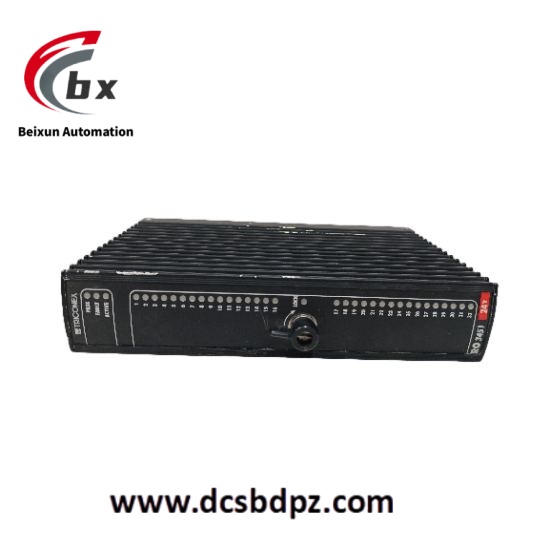

TRICONEX RO3451 High reliability relay output module

Specific parameters
Output capability
-Number of channels: 8 independent relays (Form C contact: 1NO/1NC)
-Load: 2A @ 230VAC/5A @ 30VDC (resistive)
safety performance
-Certification standard: SIL 3 (IEC 61508/61511)
-Fault coverage rate:>99.99% (including contact adhesion detection)
Electrical characteristics
-Insulation strength: 4kV AC between channels, channels
-Backboard 2.5kV AC
-Power consumption: ≤ 1.8W/channel (full load)
Environmental tolerance
-Working temperature: -40 ° C~+85 ° C (extended industrial grade)
-Vibration resistance: 5g @ 10-500Hz (IEC 60068-2-6)
Communication interface: Supports HART 7.6 signal transmission (requires cooperation with Tricon CX v12.5+)

Product Performance
Innovation in Security Architecture
Triple redundant contact (T-TMR):
Each output is connected in parallel by 3 independent contact groups, using 3-2-0-0 voting logic (any 2 groups are normal to maintain function).
Built in contact status feedback loop, real-time detection of adhesion/open circuit (diagnostic coverage>99.99%).
Breakthrough in lifespan and reliability
Intelligent contact protection:
Arc suppression technology (patent number SE-2024-ARC-X) reduces contact erosion and has a mechanical lifespan of over 1 million cycles.
Load adaptive driving reduces misoperation caused by electromagnetic interference (EMI).
Zero downtime operation and maintenance
Hot swappable 3.0 technology:
Module replacement time ≤ 60 seconds (system maintains SIL 3 operation), supports disassembly of live terminal boards (MTB 3.0 design).
Digital Twin Preview:
Through EcoStruxure ™ Process Safety Advisor simulates load switching shocks and optimizes maintenance plans.
