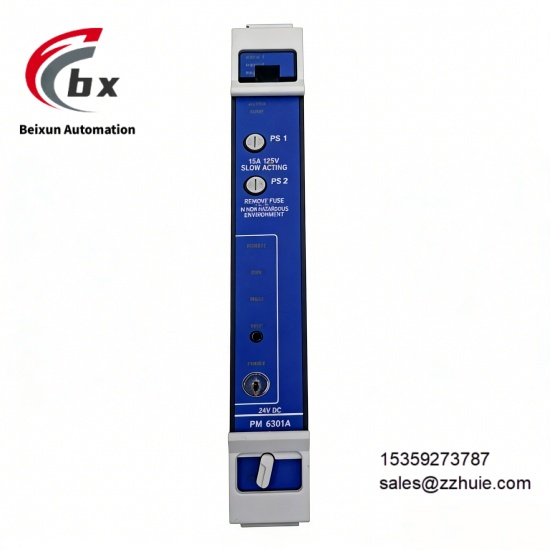

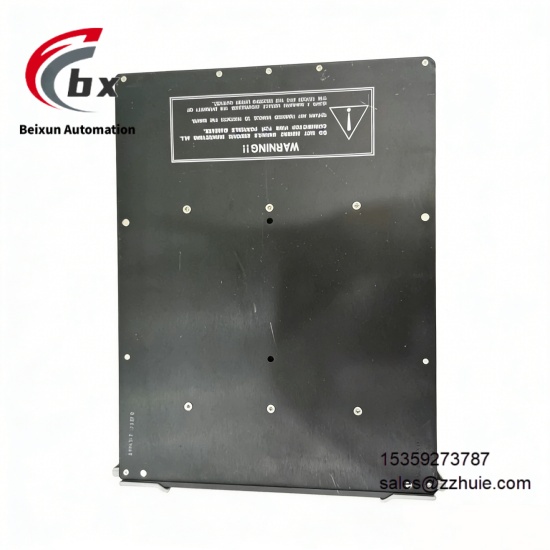

TRICONEX PM6301A Redundant power module
Specific Parameters
Input Voltage 110-240VAC/125-250VDC wide range adaptation
Output Voltage 24VDC
Output Power 200W
Operating Temperature Range -40℃ to +70℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Class IP20
Protection Functions Overload protection, short circuit protection, over temperature protection, over voltage protection, under voltage protection
Redundancy Mode Fully Automatic Bumpless Redundant Switching
Installation Method 19-inch standard cabinet rack mounting
Isolation Voltage 2500VAC between input and output
Certification Standards IEC61508, IEC61511, SIL 3, CE
HS Code 8537101190
Product Performance
Power Supply Performance: Supports 110-240VAC/125-250VDC wide range input, stably outputs 24VDC standard industrial control voltage, with output power up to 200W, which can meet the full-load power supply demand of all TRICONEX series chassis and modules. It has high power supply efficiency and low output ripple, ensuring the long-term stable operation of all system hardware.
Redundancy Performance: Adopts fully automatic bumpless redundant switching design. In case of single power supply failure, it can instantly switch to the standby power channel without voltage fluctuation, system interruption or data loss during switching. It has complete fault tolerance, comprehensively ensuring the continuity of system power supply and eliminating hidden dangers of unplanned shutdown.
Protection Performance: Built-in multiple safety protection mechanisms including overload, short circuit, over temperature, over voltage and under voltage. It can quickly start protection actions under abnormal working conditions, which not only protects the power module itself from damage, but also effectively protects the back-end controlled hardware, greatly improving the overall operation safety of the system.
Adaptability Performance: Customized for TRICONEX TMR triple redundant safety control system, perfectly compatible with all series of main control chassis, communication modules and I/O modules. It supports hot-swappable function, and can install, replace and debug modules online without interrupting system operation and production process, adapting to various industrial site deployment and maintenance needs.
Stability Performance: Adopts industrial-grade high-durability components and strict manufacturing process, with strong adaptability to wide temperature and humidity range, can operate continuously and uninterruptedly for a long time in extreme industrial environments, resistant to vibration, dust and electromagnetic interference, no frequent faults, suitable for all-weather operation needs of harsh working conditions such as petrochemical and electric power.
Operation and Maintenance Performance: Modular standardized structure design, simple installation and disassembly process, built-in power status indicator and fault diagnosis function, which can intuitively view the module working status, quickly locate power supply abnormalities, simplify daily operation and maintenance and fault troubleshooting process, reduce operation and maintenance costs and downtime risks.
