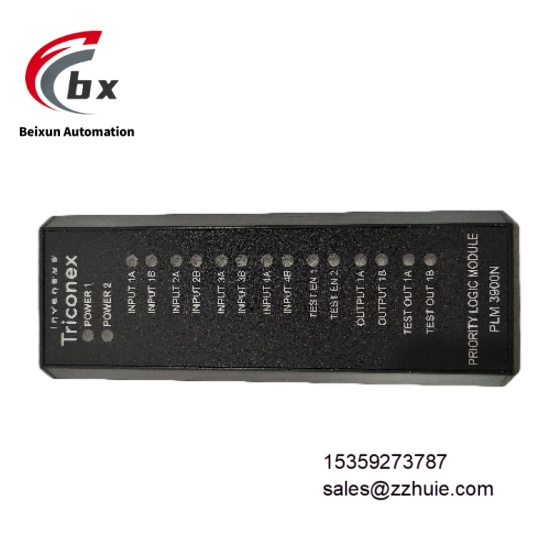

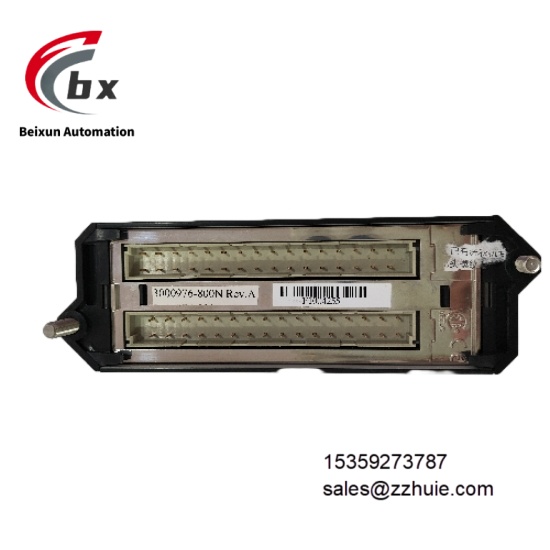

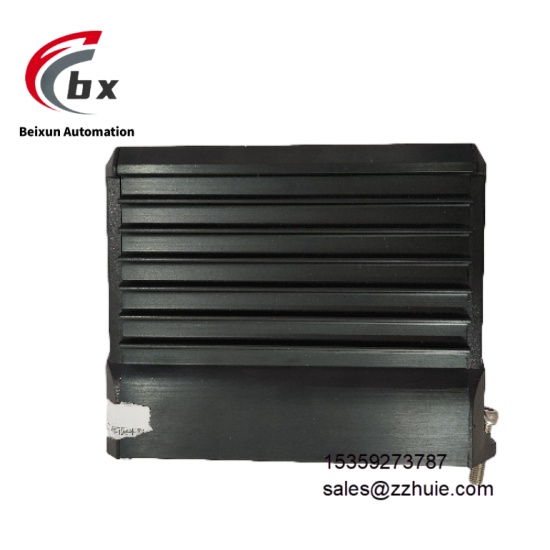

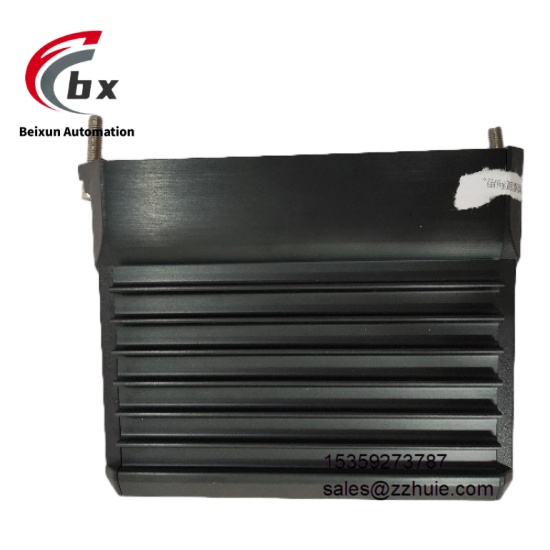

TRICONEX PLM3900N Safety redundant I/O module

Specific Parameters

Electrical Parameters
Input Voltage: 24V DC, supporting 20V DC rated voltage range
Output Voltage: 5V DC (power supply for internal circuits)
Current Requirement: 100-400mA
Channel Configuration: 32 digital I/O channels, each channel independently isolated
Communication Protocols: Modbus, TCP/IP, Ethernet/IP, RS-485, DNP3.0
Memory Capacity: 8MB
Isolation Level: 2.5kV AC between channels and between channels and system (1 minute)
Protection Functions: Overcurrent protection, overvoltage protection, undervoltage protection, reverse polarity protection
Frequency Output: 50Hz
Power Consumption: ≤10W under normal operation
Environmental Parameters
Operating Temperature: -40°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 industrial grade standard
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Protection Class: IP20 (module itself)
Mechanical Parameters
Dimensions: 150mm×75mm×50mm
Weight: Approximately 500g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Housing Material: Flame-retardant aluminum alloy (UL 94 V-0 grade)
Terminal Type: Spring-loaded crimp terminals, compatible with 14-22 AWG wires

Product Performance

PLM3900N adopts a triple modular redundant signal processing and voting circuit. Each I/O signal is synchronously collected, processed and logically voted through three independent channels, achieving 100% signal transmission accuracy. The system can continue to operate in case of single-point failure, completely avoiding safety risks. Integrated with independent isolation and power amplification circuits, each output channel has signal enhancement function with common mode rejection ratio ≥120dB, effectively resisting electromagnetic interference in industrial sites and ensuring stable signal transmission.

Built-in real-time self-diagnostic system, it can monitor channel open circuit, short circuit, overvoltage and module power supply abnormalities, with fault diagnosis coverage >99.9% and fault response time ≤1ms. It intuitively feeds back channel status through dual-color LED indicators (green for normal, red for fault). Supports parallel operation of multiple industrial communication protocols, with protocol conversion delay ≤2ms, meeting the real-time requirements of safety interlocks. Fully compatible with Tricon series controllers, parameters can be adjusted online through configuration software, enabling system expansion without shutdown.

The module has a mean time between failures (MTBF) of ≥400,000 hours, and can operate stably for a long time in a wide temperature range of -40°C to 70°C, adapting to various harsh industrial working conditions.
