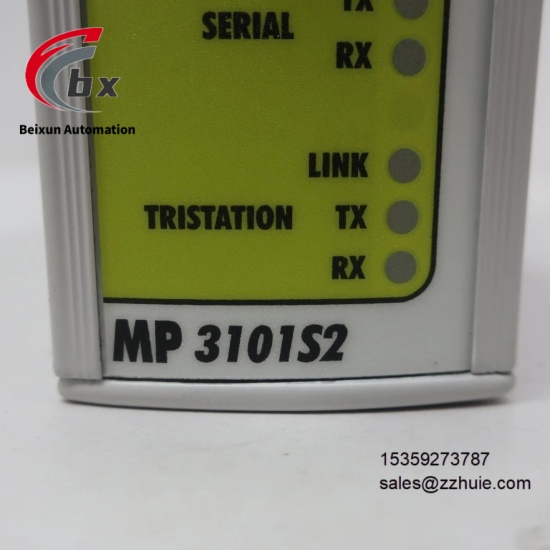

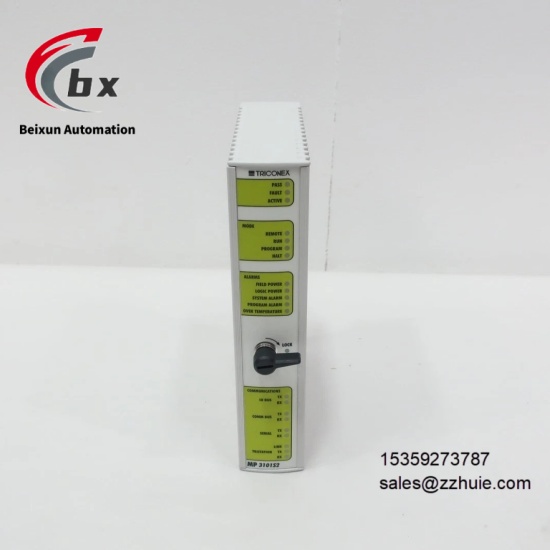

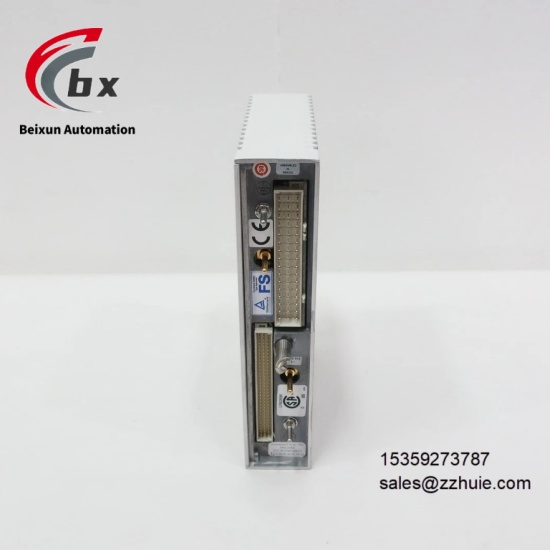

TRICONEX MP3101S2 Redundant main processor module
Specific Parameters
Operating Voltage 24VDC (19.2-30VDC wide range adaptation)
Power Consumption ≤8W
Operating Temperature Range -40℃ to +70℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Class IP20
Processor Architecture 32-bit high-performance processing unit
Memory Configuration 512MB SDRAM, 128MB Flash
Communication Interfaces Ethernet, RS-232, RS-485
Redundancy Mode TMR triple redundancy, fully automatic bumpless switching
Installation Method 19-inch standard cabinet rack mounting
Certification Standards IEC61508, IEC61511, SIL 3, CE
HS Code 8537101190
Product Performance
Operation and Control Performance: Equipped with 32-bit high-performance processing unit, matched with large-capacity running and storage memory, with fast operation speed and strong processing capacity. It can accurately execute complex safety logic operations and real-time control instructions, efficiently coordinate the operation of all I/O modules and communication modules in the system, ensuring timely response of control instructions and accurate data processing.
Redundancy and Fault Tolerance Performance: Adopts TMR triple redundant architecture, three channels independently execute control programs in parallel, complete data verification through special hardware voting mechanism. Single point failure does not affect the operation of the whole module, supports fully automatic bumpless switching, with strong fault self-healing ability, completely eliminating system shutdown caused by module failure, and comprehensively improving system operation reliability.
Adaptation and Compatibility Performance: Customized for TRICON 3000/4000 series safety control systems, perfectly compatible with all TRICONEX series main control chassis, communication modules and various I/O modules. Supports hot-swappable function, can install, replace and debug modules online without interrupting system operation and production process, adapting to system expansion and upgrade needs of various industrial sites.
Safety and Compliance Performance: Strictly complies with IEC61508 and IEC61511 core industrial safety standards, meets SIL 3 highest safety integrity level requirements. Built-in comprehensive fault self-diagnosis function, can monitor module operation status in real time, quickly locate hardware faults and issue alarms, fully ensuring the compliant and stable operation of industrial safety systems.
Environmental Adaptation Performance: Adopts industrial-grade high-durability components and strict manufacturing process, with strong adaptability to wide temperature and humidity range, can operate continuously and uninterruptedly for a long time in extreme industrial environments, resistant to vibration, dust and electromagnetic interference, no frequent faults, suitable for all-weather operation needs of harsh working conditions such as petrochemical and electric power.
Operation and Maintenance Convenience Performance: Modular standardized structure design, simple installation and disassembly process, built-in status indicator and fault diagnosis interface, can quickly view module working status and fault information, simplify daily operation and maintenance and fault troubleshooting process, support online maintenance, greatly reducing operation and maintenance costs and unplanned downtime risks.
