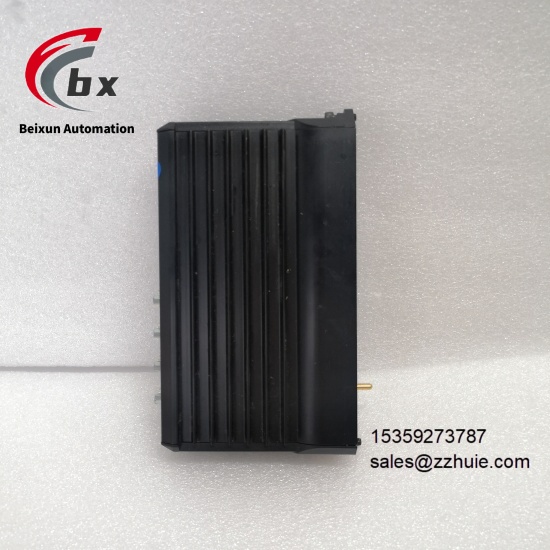

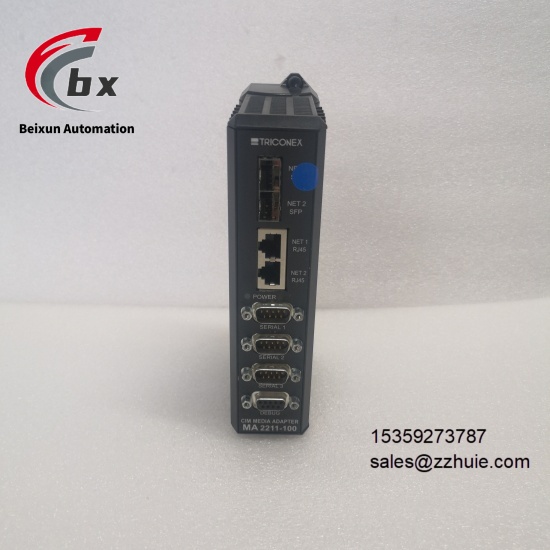

TRICONEX MA2211-100 CIM Media Adapter
Specific Parameters
Electrical Parameters
Operating Voltage 24V DC (±10%), single power supplyCommunication Interface Dedicated CIM network interface supporting CIM protocol data transmissionCommunication Rate Standard 19.2 Kbps, with support for high-speed modeIsolation Level 500V DC electrical isolation to prevent inter-system interferenceProtocol Support Dedicated CIM communication protocol, compatible with Tricon system communication standardsDiagnostic Function Built-in fault detection circuit with status indicators (green: normal, red: fault)
Mechanical Parameters
Dimensions 178mm×102mm×51mm (7″×4″×2″), matching Tricon standard rack dimensionsWeight Approximately 0.8kg, lightweight design for easy installation and maintenanceMounting Method Tricon system standard slot installation with hot-swap capabilityConnection Method Dedicated CIM network interface connector supporting shielded cablesProtection Rating IP20, suitable for installation in control cabinets
Environmental Parameters
Operating Temperature -40℃ to 70℃, adapting to extreme industrial environmentsStorage Temperature -55℃ to 85℃, withstanding extreme conditions during transportation and storageRelative Humidity 5% to 95% (non-condensing), suitable for humid industrial environmentsVibration Resistance Compliant with IEC 60068-2-6 standard, tolerating industrial site vibrationsShock Resistance Compliant with IEC 60068-2-27 standard, resisting accidental impactsEMC Compliance Meeting industrial standards for protection against electromagnetic (EMI) and radio frequency (RFI) interference
Product Performance
High-reliability design with TMR architecture ensuring single-fault tolerance and 99.9999% availabilitySafety Integrity Level SIL 3 (certified by TÜV Rheinland), suitable for safety-critical applicationsPlug-and-play capability with hot-swap support for convenient maintenance without system shutdownEfficient data transmission ensuring real-time information exchange between Tricon and CIM networksComprehensive diagnostic functions for quick fault localization, reducing maintenance timeIndustrial-grade design for harsh environments with extended temperature range (-40℃~70℃)Seamless integration with Tricon systems as a bridge between safety and information management systemsModular structure facilitating system expansion and upgrades
