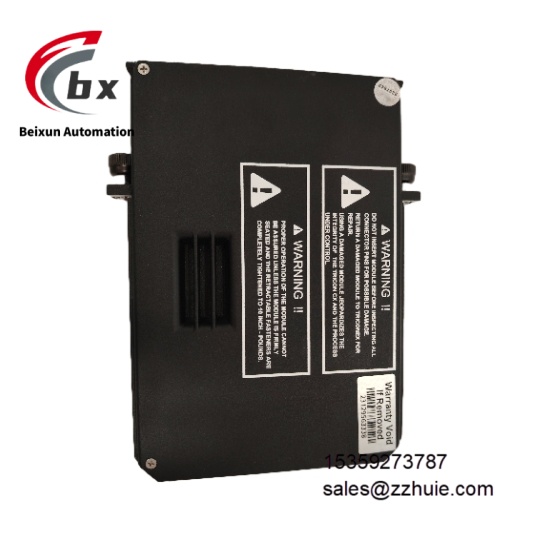

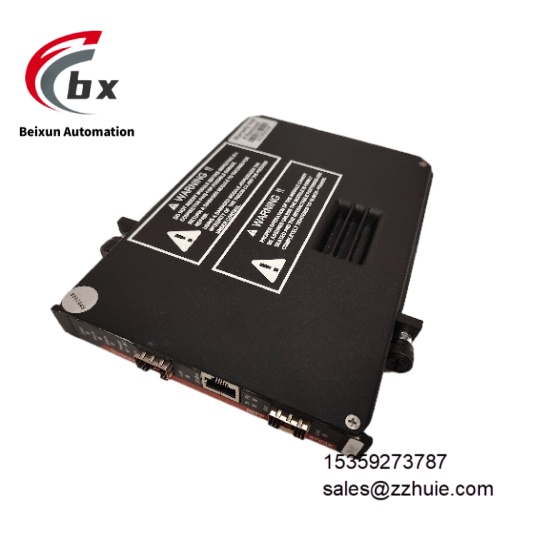

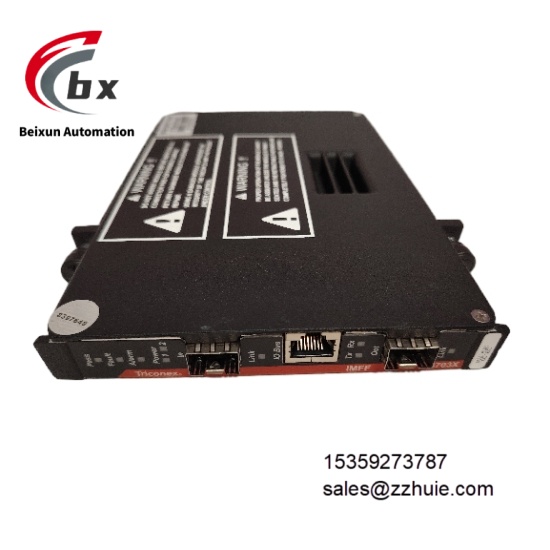

TRICONEX IMFF4703x Multi functional interface module

Specific Parameters

Electrical Parameters
Power Supply: Powered by Tricon CX system backplane, standard 5V DC ±5%
Signal Types: Compatible with digital input, digital output, analog signal processing
Communication Interfaces: Supports Modbus, Ethernet/IP and other industrial protocols, integrated with system bus interface
Isolation Level: 2.5kV AC between signal channels and system (1 minute)
Protection Functions: Signal channel overvoltage protection, ESD protection (±15kV contact discharge)
Diagnostic Circuit: Built-in dual fault monitoring circuits at module and channel levels
Power Consumption: ≤5W under normal operation
Environmental Parameters
Operating Temperature: -40°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 industrial grade standard
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 202mm×153.4mm×19.6mm
Weight: 436g
Mounting Method: Installed on I/O chassis backplane, fixed with special screws
Protection Class: IP20 (module itself)
Housing Material: Stainless steel main body, flame-retardant plastic accessories (UL 94 V-0 grade)
Terminal Type: On-board integrated terminals, compatible with 16-22 AWG wires

Product Performance

IMFF4703x adopts a triple modular redundant communication and signal processing architecture. Data between the main processor and I/O modules is synchronously transmitted and voted through three independent channels, achieving 100% data interaction accuracy and completely eliminating the risk of single-point communication interruption. It supports parallel processing of multi-type signals, with analog signal conversion delay ≤2ms and digital signal response time ≤1ms, meeting the real-time requirements of safety systems.

Integrated with comprehensive self-diagnostic functions, it real-time monitors module power supply status, communication link integrity and signal channel abnormalities, with fault diagnosis coverage ≥99%. It completes status reporting within 10ms after a fault occurs, and feeds back operating status through dual channels of system bus and indicator lights. It has strong anti-interference ability, which can maintain stable signal transmission in the electromagnetic environment of industrial sites and adapt to various harsh working conditions.

Seamlessly compatible with Tricon CX series systems, it supports online adjustment of communication parameters and signal types through configuration software, enabling function expansion without shutdown. The mean time between failures (MTBF) is ≥350,000 hours, complying with SIL 3 safety integrity level requirements, and can operate stably for a long time in high-safety demand scenarios.
