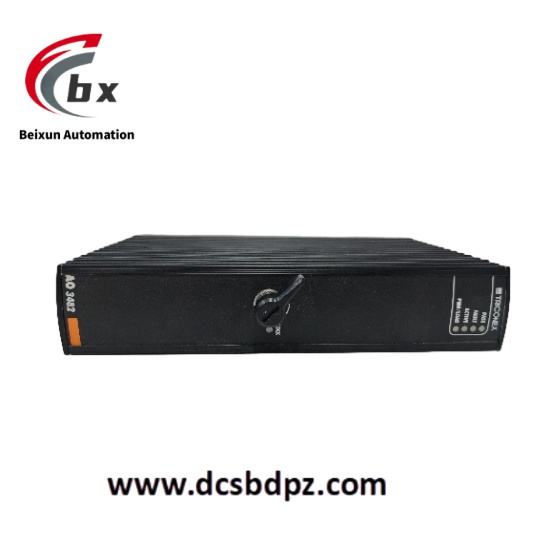

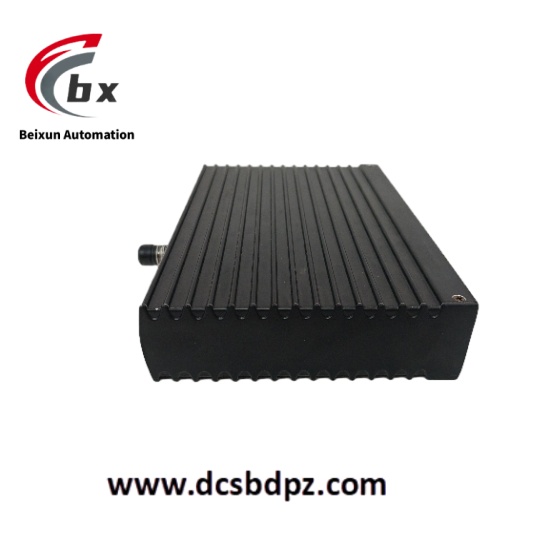

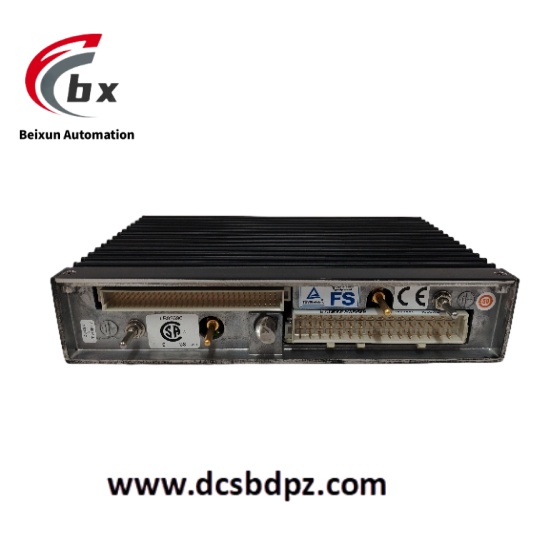

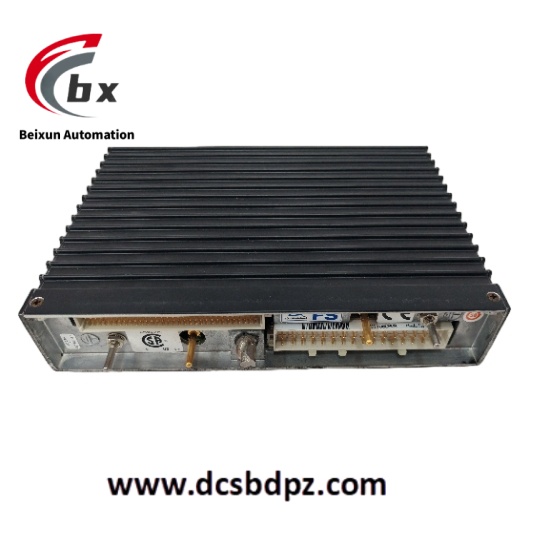

TRICONEX AO3082 Analog Output Module
TRICONEX AO3082 is an analog output module and an important part of the Triconex Safety Instrumented System (SIS). This module is mainly used to convert the digital signals of the control system into accurate analog output signals to drive various actuators, such as control valves and frequency converters, thus achieving precise control of analog parameters such as flow, pressure, and temperature in industrial production processes. It adopts advanced circuit design and manufacturing processes, with high reliability and stability, and can operate continuously and reliably in complex and harsh industrial environments.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
TRICONEX AO3082 Analog Output Module
Specific Parameters
- Number of Channels: 8
- Output Signal Types: 4 – 20mA current signal, 0 – 10V voltage signal
- Output Accuracy: ±0.1% full scale
- Resolution: 16 bits
- Load Capacity: For current output, the maximum load is 500Ω; for voltage output, the minimum load is 1kΩ
- Update Rate: 100 times per second per channel
- Isolation Characteristics: Electrical isolation between channels and between channels and the system, with isolation voltage up to 2500Vrms
- Operating Voltage: 24V DC (allowable deviation ±10%)
- Power Consumption: Less than 1W per channel, and the overall power consumption of the module is about 6W
- Operating Temperature: -40°C to 70°C
- Storage Temperature: -55°C to 85°C
- Humidity: 5% to 95% (non – condensing)
Product Performance
- High Reliability: Certified with SIL 3, compliant with IEC 61508 standard, it can operate reliably in high – risk industrial environments. The module adopts redundant design and fault – diagnosis mechanism inside, which can automatically detect and isolate faulty channels, ensuring the stable operation of the system under harsh conditions, effectively reducing system failure risks and ensuring production safety.
- High – Precision Output: The 16 – bit resolution combined with high accuracy of ±0.1% can output analog signals precisely, meeting the industrial application scenarios with extremely high requirements for control accuracy, such as the reaction process control in chemical production and the process parameter control in the pharmaceutical industry, helping to improve product quality and production efficiency.
- Fast Response: The update rate of 100 times per second enables the output signal to quickly follow the changes of the control system commands and adjust the production process in a timely manner. It is especially suitable for dynamic process control with strict real – time requirements, improving the response speed and control effect of the system.
- Strong Compatibility: It can be seamlessly integrated with a variety of controllers and other I/O modules in the Triconex series and supports multiple communication protocols, facilitating the construction of a flexible and complete automation control system. It can be easily expanded and upgraded according to different industrial production requirements.
- Wide Temperature Adaptability: It can work normally in the extreme temperature environment from -40°C to 70°C, adapting to various complex industrial environments. Whether in the cold polar regions or the hot desert areas, it can ensure the stable operation of the module and ensure that industrial production is not affected by ambient temperature.
