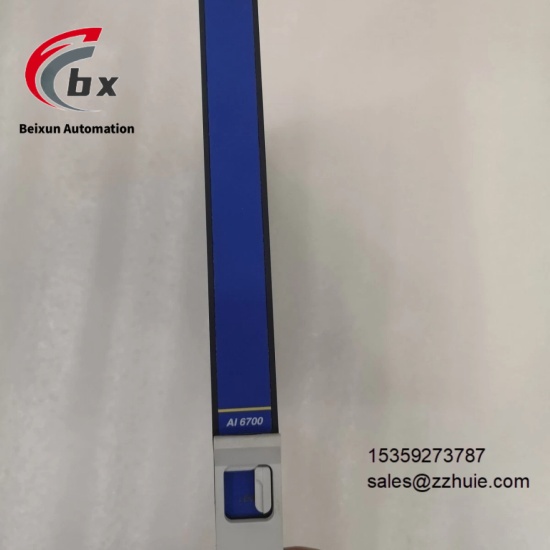

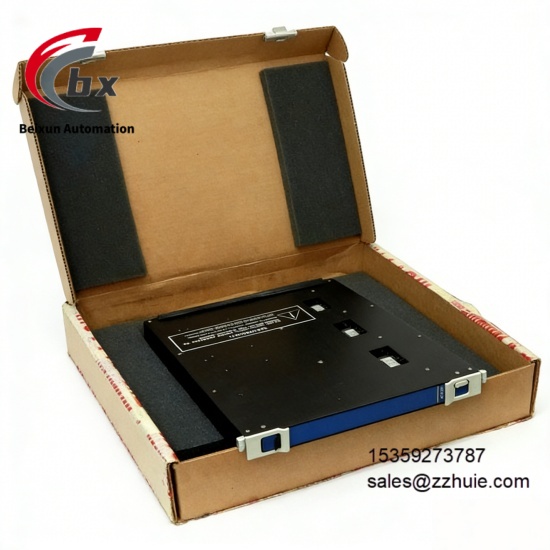

TRICONEX AI6700 Analog input control module
Specific Parameters
Rated Operating Voltage 24VDC
Voltage Range 20-30VDC
Operating Temperature Range -40℃ to +70℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Input Type 4-20mA, 0-10V, Thermocouple, RTD
Channel Number 16 Differential Inputs
Measurement Accuracy ±0.1%FS
Protection Class IP20
Mounting Type Standard 35mm DIN Rail Mounting
Power Consumption ≤8W
Communication Protocols Supports Modbus RTU, HART 7.0 Protocol
Safety Certification Complies with IEC 61508 SIL 2/3 Certification, ATEX Explosion-Proof Certification
Overall Dimensions 160mm×100mm×80mm
Product Performance
High Precision Acquisition Performance: Adopts 16-bit A/D converter and digital filtering technology, combined with automatic cold junction compensation function, the measurement accuracy reaches ±0.1%FS, which can accurately collect analog signals in industrial field without distortion or drift, meeting the strict accuracy requirements of industrial safety control scenarios.
High Redundancy and Fault Tolerance Performance: Adopts TMR microprocessor hardware technology, with a complete redundant design architecture, which can automatically detect and isolate faults, and does not affect the overall operation of the system when a fault occurs, ensuring the continuity and stability of the industrial safety control process.
High Safety Performance: Complies with IEC 61508 SIL 2/3 certification and ATEX explosion-proof certification, with overvoltage, overcurrent and short-circuit protection functions, which can effectively prevent module damage and meet the safety requirements of high-risk industrial scenarios.
Flexible Adaptability Performance: Supports multiple analog input types, can be customized according to customer needs, adapts to the signal acquisition needs of different industrial scenarios, and can be quickly integrated without replacing existing sensors.
Easy Maintenance Performance: Equipped with easy-to-operate interface and maintenance tools, supports remote status monitoring and fault troubleshooting, can quickly locate fault points, shorten maintenance time and reduce operation and maintenance costs.
Wide Environmental Adaptability Performance: The operating temperature covers -40℃ to +70℃, which can operate stably in extremely cold or high-temperature environments, adapts to various harsh industrial sites, no constant temperature control required, and trouble-free operation all-weather.
Communication Compatibility Performance: Supports Modbus RTU and HART 7.0 protocols, can be seamlessly connected to DCS and PLC systems, supports remote equipment diagnosis and parameter configuration, ensuring smooth system linkage.
