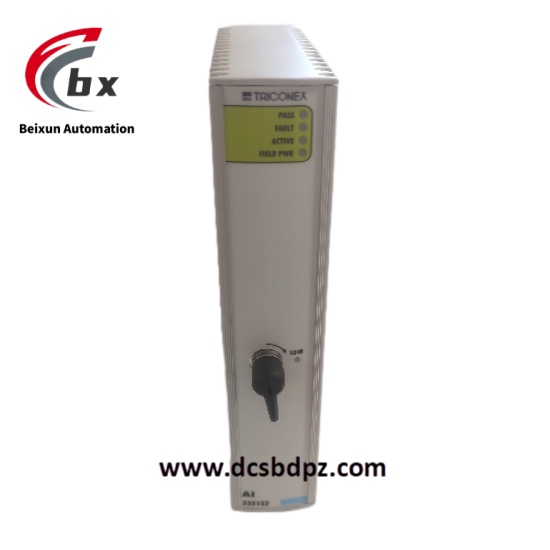

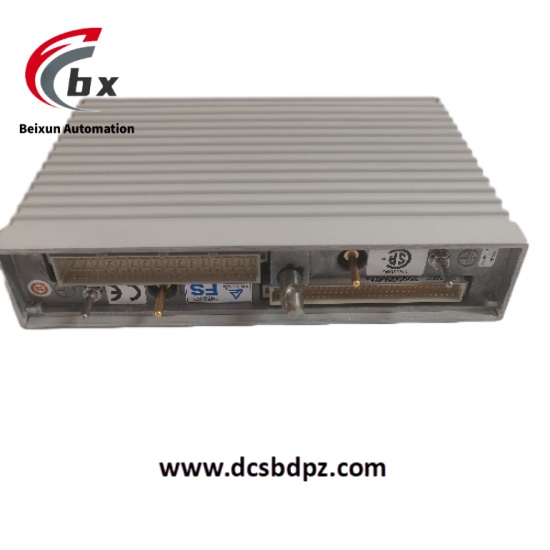

TRICONEX AI3351S2 Analog input module

Specific Parameters

Electrical Parameters
Supply Voltage: 5V DC ±5% (provided by Tricon CX backplane)
Channel Configuration: 8-channel differential analog input, each channel independently isolated
Signal Types:
Current: 4-20mA, 0-20mA (accuracy ±0.05% full scale)
Voltage: 0-5V DC, 1-5V DC, 0-10V DC (accuracy ±0.05% full scale)
Temperature: PT100/PT1000 (accuracy ±0.1°C), Thermocouple (J/K/T/E/R/S, accuracy ±0.2°C)
Resolution: 24-bit (A/D conversion)
Sampling Rate: 10Hz per channel, supporting synchronous sampling
Isolation Level: 2.5kV AC between channels (1 minute), 5kV AC between channels and system (1 minute)
Protection Functions: Overvoltage protection (≤30V DC), overcurrent protection (≤50mA), short circuit protection
Power Consumption: ≤8W under normal operation
Environmental Parameters
Operating Temperature: -40°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 (industrial grade), IEC 61000-4-2/4/6
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 32mm (W) × 130mm (H) × 190mm (D)
Weight: Approximately 450g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant aluminum alloy (UL 94 V-0 grade)
Terminal Type: Spring-loaded crimp terminals (compatible with 14-22 AWG wires)

Product Performance

AI3351S2 adopts a triple modular redundant signal acquisition circuit and 24-bit high-precision A/D converter, with measurement error ≤0.1% over the full temperature range, ensuring accuracy and reliability of process parameter acquisition. Independent isolation design for each channel combined with differential input structure provides common mode rejection ratio ≥120dB, effectively resisting strong electromagnetic interference and ground loops in industrial sites.

Integrated with comprehensive self-diagnosis functions, it can real-time detect channel open circuit, short circuit, sensor faults and module power abnormalities, with fault diagnosis coverage ≥99.9% and fault response time ≤1ms, feeding back fault status via LED indicators (red-green dual-color per channel) and system bus. Supports online calibration and configuration, enabling parameter adjustment without module disassembly.

Seamlessly compatible with Tricon CX series controllers, data transmission delay ≤5ms, meeting the real-time requirements of safety interlocks, with mean time between failures (MTBF) ≥300,000 hours, complying with SIL 3 safety integrity level requirements.
