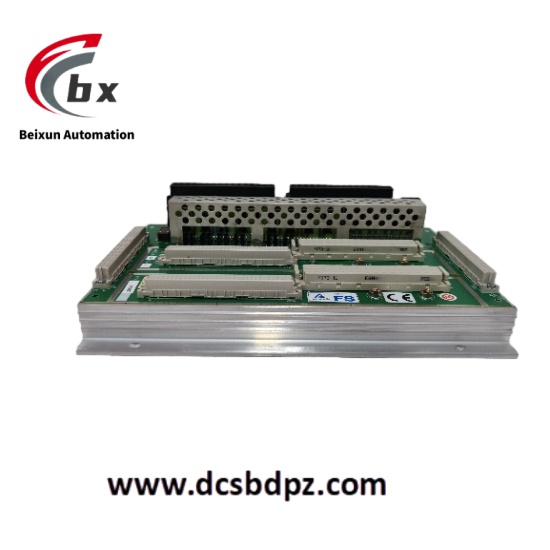

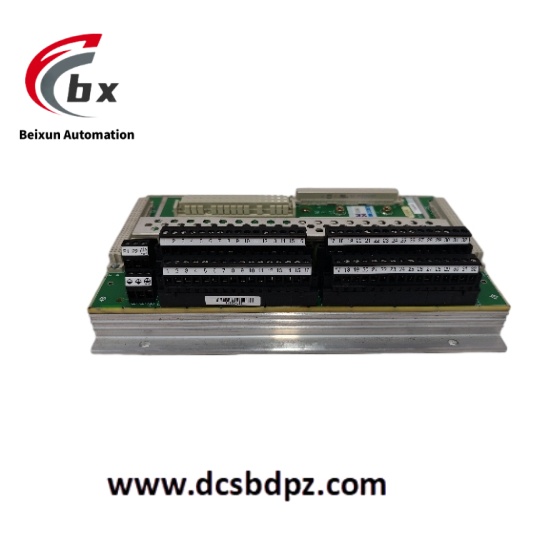

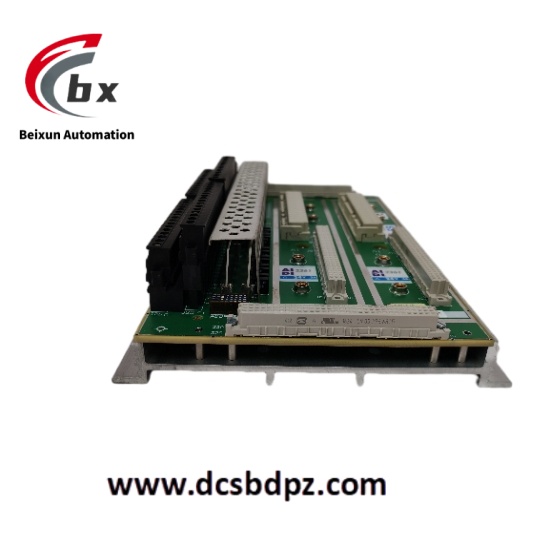

TRICONEX AI2361 7400210-020 Analog input module
The TRICONEX AI2361 7400210 - 020 is a powerful analog input module. As an important part of the Triconex Safety Instrumented System (SIS), it is specifically designed for critical production processes in industries such as oil and gas, chemicals, and power. This module adopts advanced technology and high - reliability design, which can accurately collect various analog signals and stably transmit them to the control system, providing key support for the safety monitoring and control of industrial production processes.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
TRICONEX AI2361 7400210-020 Analog input module
Specific Parameters
- Number of Channels: 8
- Input Signal Types: Supports a variety, such as 4 – 20mA current signal, 0 – 5V voltage signal, etc.
- Input Range: 4mA to 20mA for current signal; for voltage signal, according to specific specifications, such as 0V to 5V, 0V to 10V, etc.
- Accuracy: ±0.1% (within full – scale range)
- Resolution: 16 bits
- Sampling Rate: 1000 times per second (typical value)
- Response Time: Less than 100ms
- Isolation Characteristics: Electrical isolation between channels and between channels and the system, with isolation voltage up to 2500Vrms
- Operating Voltage: 24VDC (allowable deviation ±10%)
- Power Consumption: Less than 1W per channel, and the overall power consumption of the module is about 5W
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -55°C to +85°C
- Humidity: 5% to 95% (non – condensing)
Product Performance
- High Reliability: It has passed the strict Safety Integrity Level 3 (SIL 3) certification and complies with the international safety standard IEC 61508:2010. The module adopts redundant design and fault – diagnosis mechanism inside, which can automatically detect and isolate faulty channels, ensuring stable operation in harsh industrial environments, effectively reducing system failure risks and ensuring production safety.
- High – Precision Acquisition: The 16 – bit resolution combined with high accuracy of ±0.1% can accurately capture the subtle changes of analog signals, providing accurate data for the control system. It meets the application scenarios with extremely high requirements for the monitoring and control accuracy of process parameters, helping to optimize the production process and improve product quality.
- Fast Response: With a response time of less than 100ms, it can promptly feedback the changes of on – site analog signals to the control system, enabling the system to make corresponding control decisions quickly. It is especially suitable for emergency handling and dynamic process control with strict real – time requirements, improving the emergency response ability of the system.
- Strong Compatibility: It can be seamlessly integrated with a variety of controllers and other I/O modules in the Triconex series and supports multiple communication protocols, facilitating the construction of a flexible and complete automation control system. It can be easily expanded and upgraded according to different industrial production requirements.
- Wide Temperature Adaptability: It can work normally in the extreme temperature environment from -40°C to +70°C, adapting to various complex industrial environments. Whether in the cold polar regions or the hot desert areas, it can ensure the stable operation of the module and ensure that industrial production is not affected by ambient temperature.
