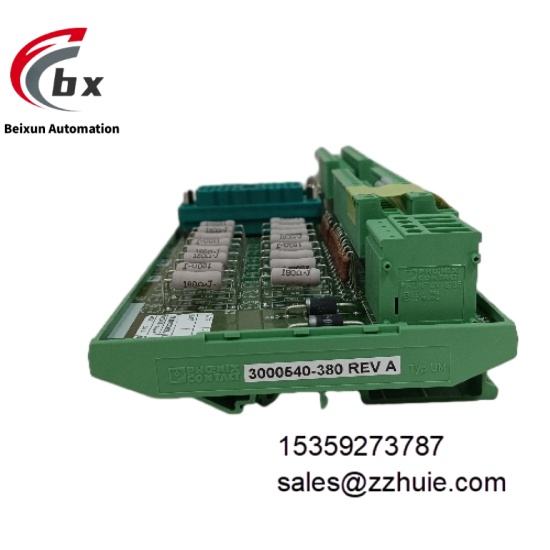

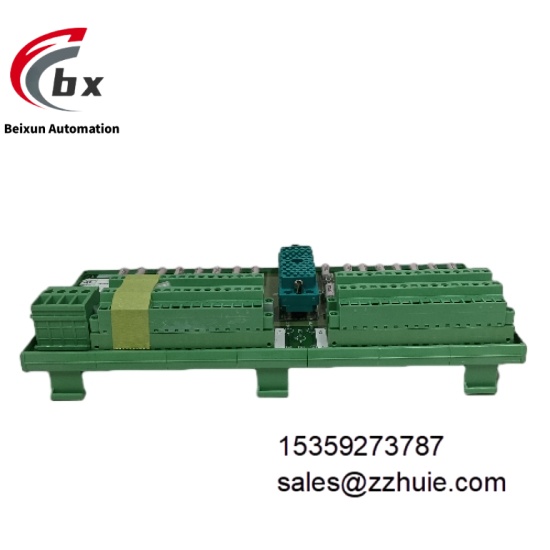

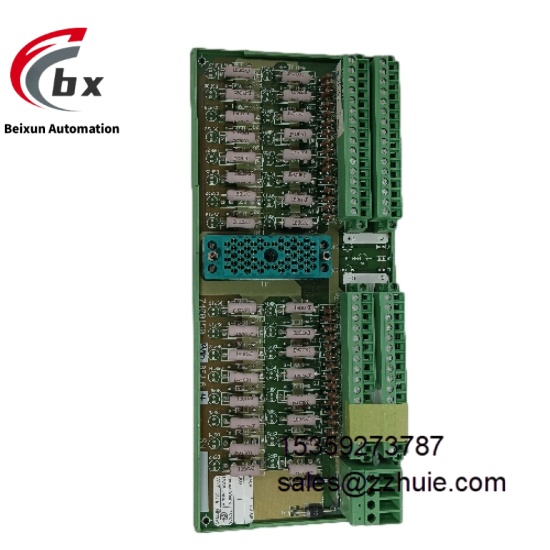

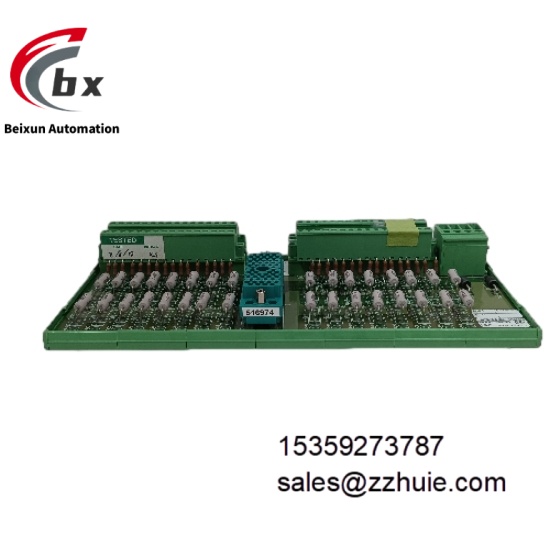

TRICONEX 9566-810 7400150-370 3000540-380 Security Control Core Suite
Specific Parameters
- 9566-810 (Main Controller Module)
- Electrical Parameters
- Supply Voltage: 5V DC ±5% (provided by redundant power module)
- Processor: 3 sets of 1.2GHz industrial-grade dual-core CPUs (TMR architecture)
- Memory: 1GB DDR4 RAM, 8GB Flash storage
- Communication Interfaces: 2×Ethernet (10/100/1000Base-T), 2×RS485 (Modbus RTU)
- Backplane Bus Rate: 1Gbps (TMR synchronous transmission)
- Isolation Level: 5kV AC between modules (1 minute)
- Power Consumption: ≤25W under normal operation
- Environmental Parameters
- Operating Temperature: -40°C to 70°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% (non-condensing, no dew formation)
- EMC Immunity: Compliant with EN 61326-1 (industrial grade), IEC 61000-4-2/4/6
- Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
- Mechanical Parameters
- Dimensions: 44mm (W) × 130mm (H) × 220mm (D)
- Weight: Approximately 650g
- Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
- Protection Class: IP20 (module itself)
- Housing Material: Flame-retardant aluminum alloy (UL 94 V-0 grade)
- 7400150-370 (Redundant Power Module)
- Electrical Parameters
- Input Voltage: 100-240V AC (50/60Hz) or 24-48V DC
- Output Voltage: 5V DC (main output), 24V DC (auxiliary output)
- Output Current: 5V DC ≤10A, 24V DC ≤5A
- Redundancy Mode: N+1 redundancy, automatic current sharing
- Protection Functions: Overvoltage protection, overcurrent protection, short circuit protection, overtemperature protection
- Isolation Level: 4kV AC between input and output (1 minute)
- Power Consumption: ≤40W under normal operation
- Environmental Parameters
- Operating Temperature: -25°C to 65°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% (non-condensing, no dew formation)
- EMC Immunity: Compliant with EN 61000-6-2 (industrial grade)
- Vibration Resistance: 10-500Hz, 5g acceleration (compliant with IEC 60068-2-6)
- Mechanical Parameters
- Dimensions: 44mm (W) × 130mm (H) × 200mm (D)
- Weight: Approximately 550g
- Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
- Protection Class: IP20 (module itself)
- Housing Material: Flame-retardant ABS plastic (UL 94 V-0 grade)
- 3000540-380 (Communication Interface Module)
- Electrical Parameters
- Supply Voltage: 5V DC ±5% (provided by main controller module)
- Communication Protocols: Profinet IO, EtherNet/IP, Modbus TCP
- Interface Quantity: 4×Ethernet (10/100/1000Base-T, POE supported)
- Data Transmission Rate: 1Gbps
- Isolation Level: 2.5kV AC between interface and backplane (1 minute)
- Protection Functions: Network storm suppression, port isolation
- Power Consumption: ≤15W under normal operation
- Environmental Parameters
- Operating Temperature: -40°C to 70°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% (non-condensing, no dew formation)
- EMC Immunity: Compliant with EN 61326-1 (industrial grade)
- Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
- Mechanical Parameters
- Dimensions: 44mm (W) × 130mm (H) × 210mm (D)
- Weight: Approximately 500g
- Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
- Protection Class: IP20 (module itself)
- Housing Material: Flame-retardant aluminum alloy (UL 94 V-0 grade)
Product Performance
The suite adopts TMR architecture design. The 9566-810 main controller implements triple CPU synchronous operation and voting mechanism, with logic operation cycle as low as 1ms and 100% safety logic execution accuracy. The 7400150-370 power module supports automatic switching of dual input channels, with switching time ≤10ms and output voltage ripple ≤50mVp-p, ensuring continuous system power supply. The 3000540-380 communication module adopts hardware-level network redundancy, with data transmission delay ≤2ms, supporting automatic network fault recovery.
Integrated with full-link self-diagnosis functions, it can real-time monitor CPU faults, power abnormalities, communication interruptions and I/O channel faults, with diagnostic coverage ≥99.9% and fault response time ≤1ms, feeding back status via LED indicators and bus. The suite operates stably within the wide temperature range of -40°C to 70°C, with mean time between failures (MTBF) ≥500,000 hours, complying with SIL 3 safety integrity level requirements, supporting online configuration and firmware upgrade without shutdown for maintenance.
