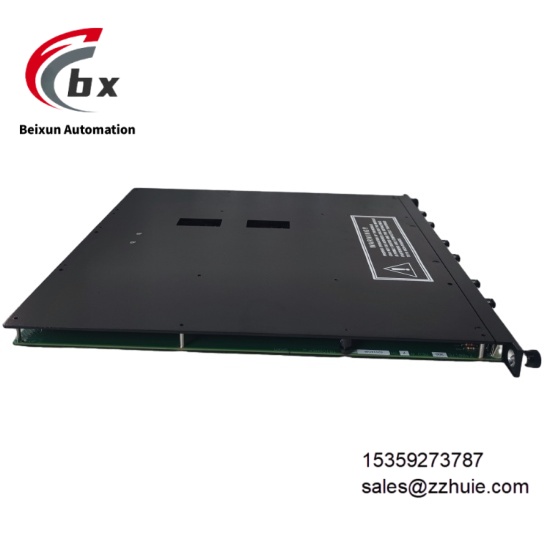

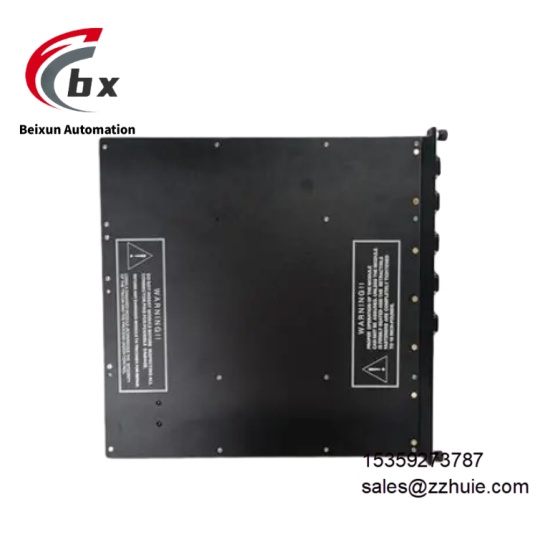

TRICONEX 4409 Security management communication module
Specific Parameters
Brand TRICONEX (Original Authentic, a subsidiary of Schneider Electric), Product Series TRICONEX Safety Instrumented System (SIS) Series
Product Type Industrial-Grade Safety Manager Module (SMM), Original Authentic Spare Part
Model TRICONEX 4409
Country of Origin United States
Compatible Devices Tricon Series Controllers, TRICON System Racks, Honeywell TDC-3000 Systems, DCS Systems, Industrial Control Consoles, Printers
Core Functions Real-Time Data Transmission, UCN Network Docking, Alarm Synchronization, Fault Self-Diagnosis, Communication Status Monitoring, Port Isolation Protection, Hot Standby Ready
Product Structure Standard rack-mounted industrial module, compact design, front wiring and multi-status LED indicators, mechanical anti-misinsertion design
Communication Interfaces 2 isolated AC-coupled UCN ports
Port Isolation 500VDC
Data Transmission Rate 5 Megabytes per second
Supported Protocols Compatible with Honeywell TDC-3000 System UCN Network Protocol, TRICONEX Proprietary Communication Protocol
Safety Level SIL3 (Certified by TÜV Rheinland)
Operating Voltage 24VDC±10%
Maximum Power Consumption No more than 20W
Operating Temperature Range 0℃ to +60℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Class IP20 (Complies with IEC 60529 Standard)
Mounting Method Tricon rack embedded installation, supporting online hot swapping
Dimensions Regular size 12.5cm×5.0cm×15.0cm (Height×Width×Depth), rack-adapted size 49cm×45.3cm×6.8cm
Weight Regular version 0.8kg, rack-adapted version 4.8kg
Product Performance
Adaptability Performance: Fully compatible with Tricon series controllers and TRICON system racks, can seamlessly dock with the UCN network of Honeywell TDC-3000 systems, compatible with Tricon v9.0 and above systems, no additional adaptation required, high integration efficiency.
Communication Performance: Equipped with 2 isolated UCN ports, data transmission rate up to 5 Megabytes per second, can transmit system variables and diagnostic information at full rate, realize synchronous transmission of Tricon alarms and DCS systems, with stable and efficient communication.
Stability Performance: Adopting TMR triple modular redundancy architecture, made of industrial-grade components, with port isolation design, strong anti-electromagnetic interference capability, safety level up to SIL3, can operate stably and continuously for a long time in harsh industrial environments, ensuring reliable communication links.
Operation and Maintenance Performance: Modular design, supporting online hot swapping, no need to shut down the machine during maintenance, multi-status LED indicators can intuitively feedback module operation status and fault information, fault self-diagnosis function can quickly troubleshoot problems, reducing downtime.
Structural Performance: Compact rack-mounted design, reasonable layout, mechanical anti-misinsertion design to prevent misinsertion, two size versions adapt to different installation scenarios, occupy reasonable space in the control cabinet, and are easy to install in combination with other modules.
