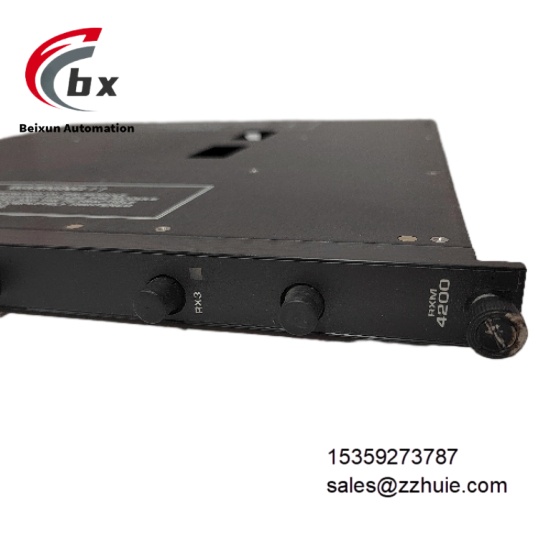

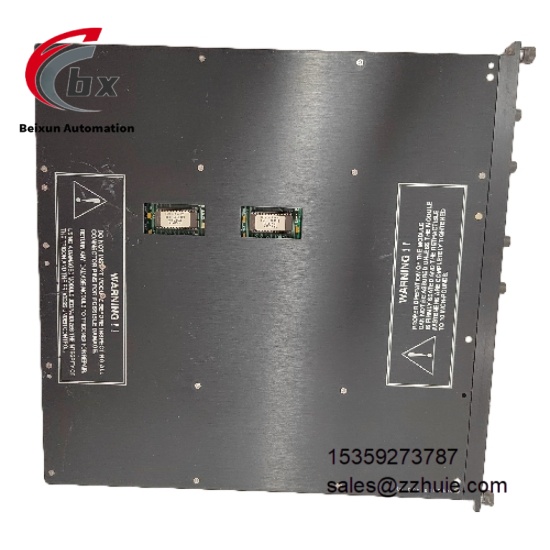

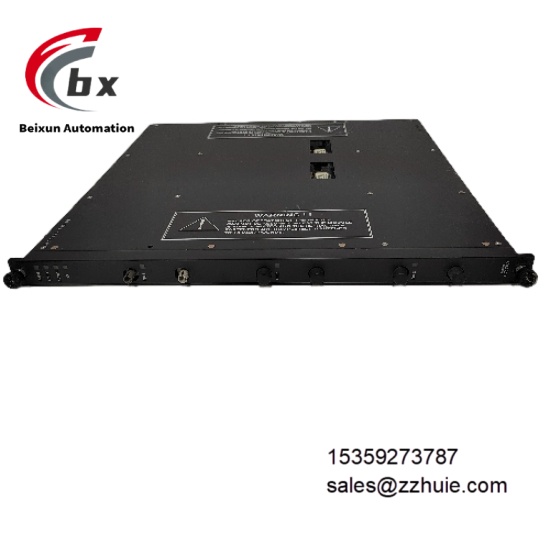

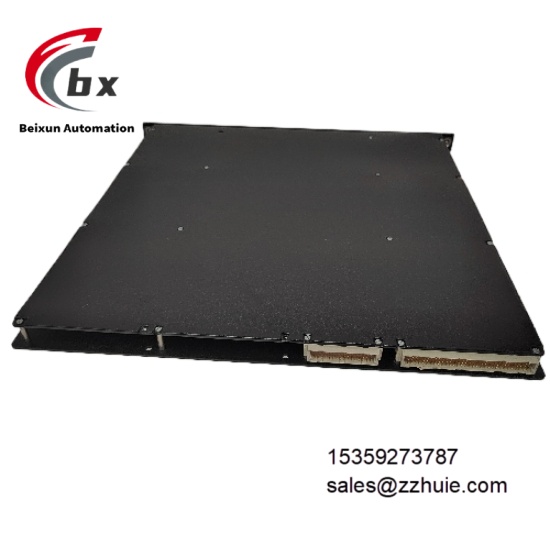

TRICONEX 4200 Remote Expansion Module
Specific Parameters
- Electrical Parameters
Supply Voltage: 24V DC, supporting 20-28V DC wide voltage input
Communication Interfaces: 1 single-mode fibre optic interface (ST connector), 1 Ethernet interface (10/100Mbps, RJ45), 1 RS485 serial port (supports Modbus RTU)
Data Transmission: Fibre optic link rate 375kbps, Ethernet port rate 10/100Mbps auto-negotiation
Channel Configuration: Supports 16-channel I/O signal access, compatible with dry contact, wet contact, NAMUR, PNP/NPN signal types
Redundancy Design: Triple Modular Redundancy (TMR) architecture, dual communication channels with automatic fault switching
Power Consumption: ≤15W under normal operation, ≤20W under full-load data transmission
Isolation Level: Electrical isolation between power supply and communication interfaces, dielectric test voltage 2.5kV AC (1 minute)
Protection Functions: Built-in overvoltage protection (32V DC threshold), short-circuit protection (self-recovery), surge protection (compliant with IEC 61000-4-5)
- Environmental Parameters
Operating Temperature: -40°C to 70°C (non-condensing, no derating during startup from -40°C to 0°C)
Storage Temperature: -55°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, continuous operation for 72 hours at 90% humidity and 40°C without failure)
EMC Immunity: Complies with EN 61326-1 industrial standard, ESD protection ±15kV (air discharge), ±8kV (contact discharge)
Vibration Resistance: 10-500Hz, 2g acceleration (IEC 60068-2-6 standard, sinusoidal vibration)
Shock Resistance: 30g acceleration, 11ms duration (IEC 60068-2-27 standard, half-sine shock)
Protection Class: IP20 (module itself), up to IP65 with protective enclosure
Certification Standards: TÜV Rheinland SIL 3 certification, IEC 61508 standard, CE (EMC and safety), UL 508C
- Mechanical Parameters
Dimensions: 225mm (L) × 175mm (W) × 100mm (H)
Weight: Approximately 3kg
Mounting Method: 35mm DIN rail snap-on mounting (compliant with EN 60715 standard)
Housing Material: Flame-retardant reinforced aluminum alloy (anodized surface treatment, UL 94 V-0 grade)
Terminal Type: Power and RS485 with spring-loaded crimp terminals (compatible with 16-24 AWG wires), fibre optic with ST fixed connector
Indicators: Power Status (PWR, green, steady on for normal), Operation Status (RUN, green, 1Hz blinking for normal), Fibre Link (FIBER, green, steady on for link connection), Fault Status (ERR, red, steady on for module fault)
Product Performance
The data transmission delay of the fibre optic link is ≤50ms, and the communication delay of the Ethernet port is ≤10ms, meeting the real-time requirements of remote control; the TMR architecture achieves single-point fault tolerance, with a fault switching time ≤10ms, ensuring uninterrupted data transmission when communication is interrupted.
It supports interconnection between controllers and remote I/O modules 12 kilometers away, and a single module can manage 16 channels of mixed signals (digital/analog), adapting to distributed equipment layout scenarios. The online diagnostic module can monitor power abnormalities, link interruptions, module faults and other states, with a diagnostic coverage of ≥99%, and fault information is uploaded to the Triconex system monitoring platform in real time via the communication interface.
The hot-swappable design allows live module replacement without affecting system operation; the industrial-grade wide-temperature and anti-EMC performance ensure stable operation in high-temperature and strong electromagnetic environments, with a Mean Time Between Failures (MTBF) ≥1,000,000 hours (MIL-HDBK-217F, 25℃ environment).
