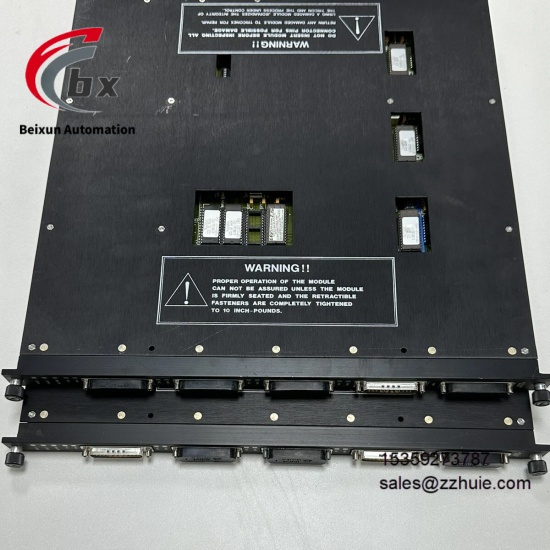

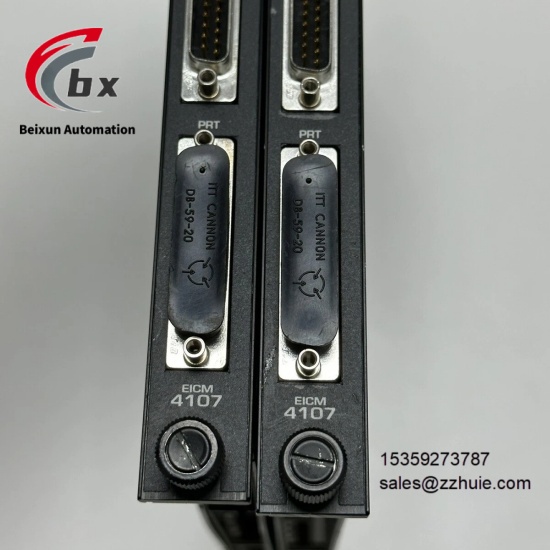

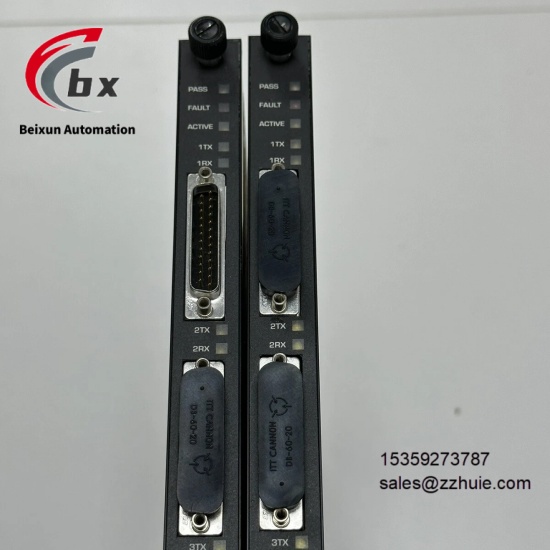

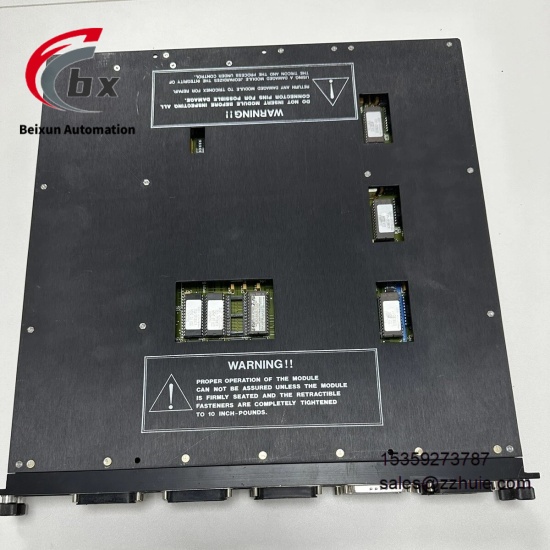

TRICONEX 4107 Expand intelligent communication module

TRICONEX 4107 Expand intelligent communication module

Specific Parameters

Operating Voltage Backplane bus power supply (5VDC logic power supply, 24VDC auxiliary power supply)

Power Consumption ≤12W

Net Weight 0.35kg

Dimensions 160mm×107mm×32mm

Operating Temperature Range -40℃ to +70℃

Storage Temperature Range -40℃ to +85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20

Serial Ports 4 channels, supporting RS-232/RS-422/RS-485 interfaces

Parallel Port 1 channel

Supported Protocols Modbus RTU, Modbus ASCII

Maximum Baud Rate 38400bps

Maximum Number of RS-485 Slaves 32

Maximum RS-485 Transmission Distance 1200m

Isolation Voltage Port-backplane ≥2500V AC; Inter-port ≥1500V AC

Vibration Resistance 5-150Hz, 1g rms

Certification Standards CE, IEC61508/61511, SIL 3

HS Code 8537101190

Product Performance

Communication Performance: Integrates 4 independent serial ports and 1 parallel port, supports RS-232/RS-422/RS-485 interfaces, the maximum baud rate reaches 38400bps, the maximum RS-485 transmission distance is 1200m, supports Modbus RTU/ASCII protocols, can be configured as master or slave mode, realizes stable two-way data interaction between the controller and third-party equipment, and ensures the certainty and accuracy of data transmission.

Adaptability Performance: Specifically designed for the TRICONEX TMR triple modular redundant fault-tolerant control system, it can be seamlessly integrated into TRICONEX TS3000 and other safety control systems, with a maximum of 2 modules per chassis, supports hot-swappable function, and can replace modules online without interrupting production operation, suitable for various safety-critical industrial control scenarios.

Safety Performance: Adopts TMR redundancy design concept, meets the requirements of SIL 3 safety integrity level, has complete fault tolerance, a single component failure will not affect the normal operation of the module, the ports have high-level isolation from the backplane and between ports, with strong anti-electromagnetic interference ability, which can effectively protect the safe and stable operation of the communication link and associated systems.

Stability Performance: Adopting industrial-grade high-quality components, it has strong adaptability to wide temperature environments, can operate stably for a long time in the range of -40℃ to +70℃, without frequent faults, has good vibration resistance, can adapt to the long-term continuous operation needs of harsh industrial environments, and ensures that the communication link is not interrupted.

Operation and Maintenance Performance: Equipped with built-in fault self-diagnosis function, it can real-time monitor the module operation status, quickly locate fault points, facilitating timely troubleshooting and problem solving; modular structure design, convenient for installation and disassembly, supports online module replacement and maintenance, matched with special debugging tools to reduce daily operation and maintenance costs.
