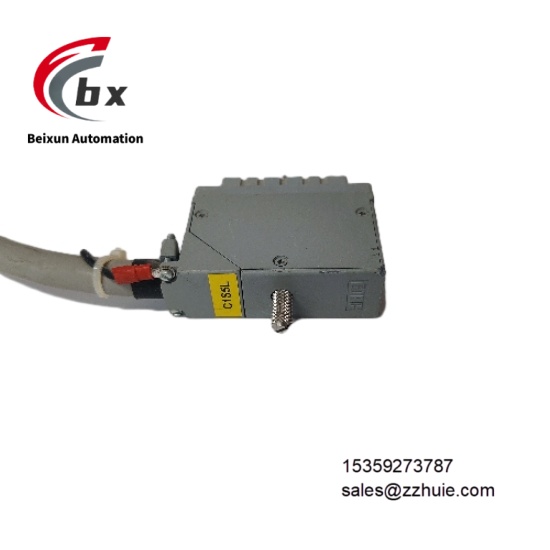

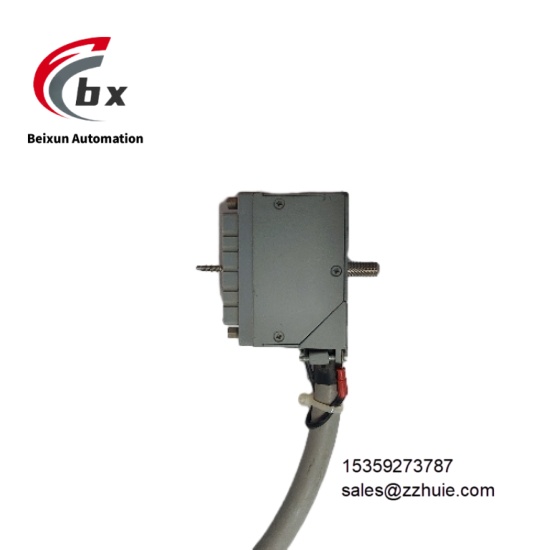

TRICONEX 4000103-513 Digital Security Input Module

TRICONEX 4000103-513 Digital Security Input Module

Specific Parameters​

Electrical Parameters​

Operating Voltage: 24V DC±10%, compatible with standard power supply for industrial safety circuits​

Input Channels: 32 digital safety inputs, supporting dry contact (passive)/wet contact (active) signals​

Input Signal Type: Dry contact input supports contact on-off signals, wet contact input supports 5-30V DC active signals​

Safety Integrity Level: SIL 3 (compliant with IEC 61508), Performance Level PL e (compliant with ISO 13849-1)​

Response Time: Input signal detection response ≤10ms, signal transmission delay to controller ≤5ms​

Diagnostic Coverage: ≥99.5%, supporting channel open circuit, short circuit, overvoltage/undervoltage fault diagnosis​

Electrical Isolation: 250V AC isolation between channels and between channels and backplane to avoid signal interference​

Insulation Resistance: ≥100MΩ between contacts and between contacts and housing (measured with 500V DC megohmmeter, normal temperature and state)​

Voltage Withstand Strength: ≥2500V AC between contacts and between contacts and housing (1 minute no breakdown, leakage current ≤1mA)​

Electrical Life: Input channels ≥10 million signal switches, no contact wear risk​

Power Consumption: Typical power consumption per module ≤5W, full-load operation power consumption ≤8W​

Mechanical Parameters​

Overall Dimensions: 160mm (W) × 100mm (H) × 220mm (D), standard rack-mounted module design​

Weight: Approximately 0.9kg, compatible with TRICONEX 4100/4200 series I/O rack installation​

Mounting Method: Plug-in installation (compatible with TRICONEX standard I/O rack rails), supporting online hot-swapping​

Housing Material: Die-cast aluminum alloy (main body) + flame-retardant engineering plastic (interface panel), anti-Electromagnetic Interference (EMI)​

Connection Method: 2 sets of 50-pin D-Sub high-density connectors (input signals independently grouped), compatible with shielded twisted-pair cables​

Protection Rating: IP20 (module itself), relying on the overall dust protection of the I/O rack​

Status Indication: 1 green LED shared by every 4 channels (normal signal), module-level red LED (fault), yellow LED (communication)​

Environmental Parameters​

Operating Temperature: -40℃ to +70℃, operation without derating (accuracy maintained over the entire temperature range)​

Storage Temperature: -40℃ to +85℃, meeting extreme storage and long-distance transportation requirements​

Relative Humidity: 5% to 95% (non-condensing), suitable for high-humidity industrial scenarios (e.g., coastal petrochemical plants)​

Vibration Resistance: 10-500Hz frequency range, 1.5g acceleration (sine wave), no structural loosening or signal drift​

Shock Resistance: 20g acceleration (half-sine wave, duration 11ms), withstanding shocks in rack-mounted scenarios​

EMC Compliance: Meets EN 55014-1 (emission limits) and EN 55014-2 (immunity), compatible with industrial strong electromagnetic environments​

Installation Altitude: ≤2000m (normal operation), power derating 10% for every 1000m increase from 2000m to 5000m​

Product Performance​

High safety and reliability: TMR redundancy architecture can tolerate single-channel faults, system spurious trip rate ≤1×10⁻⁹/h, meeting high-risk scenario requirements​

Optimized channel density: 32-channel input design reduces rack space occupation (each channel occupies only 5mm width), lowering system hardware costs​

Fast fault response: Millisecond-level signal detection and transmission, enabling ≤50ms emergency interlock action with safety controllers​

Excellent maintenance convenience: Supports online hot-swapping replacement without interrupting the safety system operation, maintenance time ≤15 minutes​

Comprehensive diagnostic capability: Channel-level fault self-diagnosis can accurately locate abnormal channels, and fault information is uploaded to the controller in real time via the backplane bus​

Wide compatibility: Seamless integration with TRICON and TRICON CX series safety controllers, supporting data interaction with DCS systems (requires gateway module)​

Strong environmental adaptability: Wide temperature, high humidity, and anti-vibration design, adapting to harsh industrial working conditions such as chemical workshops, offshore platforms, and mines​
