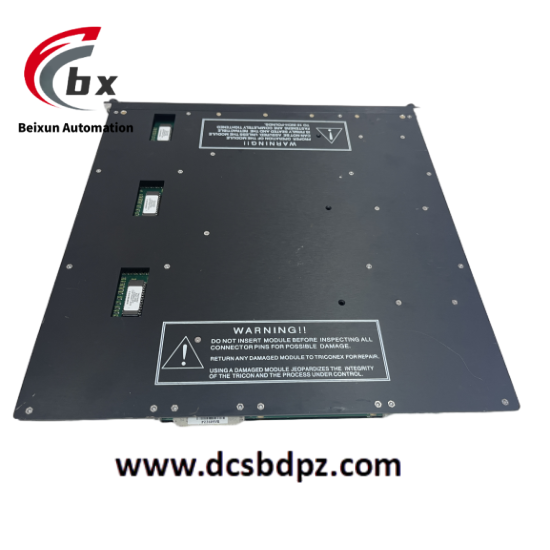

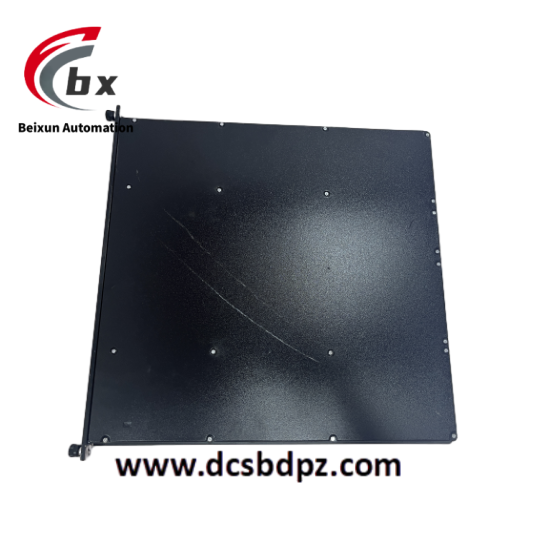

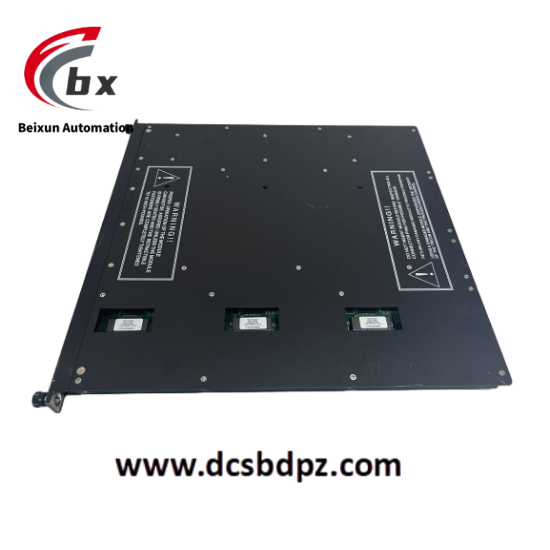

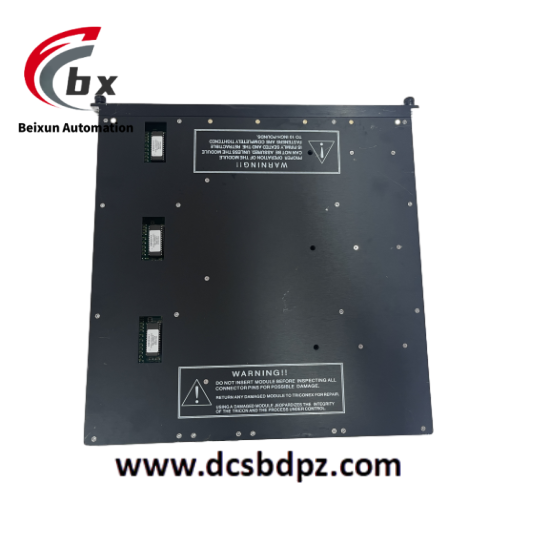

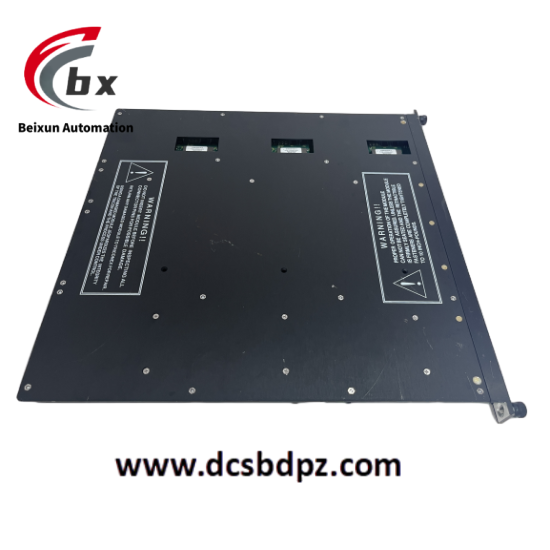

TRICONEX 3805H analog output module

Specific parameters
Output current loop: 8, output current range 4-20mA, DC coupling.
Output accuracy: less than 0.25%.
Working temperature range: 32-140 degrees Fahrenheit (0-60 degrees Celsius).
System power requirements: 24VDC (19.2-28.8VDC), with current limitation and reverse polarity protection.
On site power requirement: 24VDC (11-28.8VDC).
Indicator lights: have module status, network status, and I/O status indicator lights.
Bus length: up to 500 meters (depending on baud rate).
Number of supported nodes: 64.
Support for expanding I/O count: 10.
Transport weight: approximately 3 kilograms.

Product Performance
High precision output: It can provide high-precision analog output signals with an output accuracy of less than 0.25%, ensuring the accuracy of controlling the actuator. It is suitable for industrial scenarios that require high control accuracy.
Wide temperature range operation: It can work stably in the temperature range of 0-60 degrees Celsius, adapt to temperature changes in different industrial environments, and has strong environmental adaptability.
Multiple protection functions: It has functions such as short circuit protection, over temperature protection, and over-current limitation, effectively protecting modules and other equipment from the effects of overload, overheating, and other faults, improving the stability and reliability of the system.
Good compatibility: It can be integrated with various PLCs/DCS and secure networks, and can be easily integrated into different industrial automation control systems, providing convenience for system integration and expansion.
