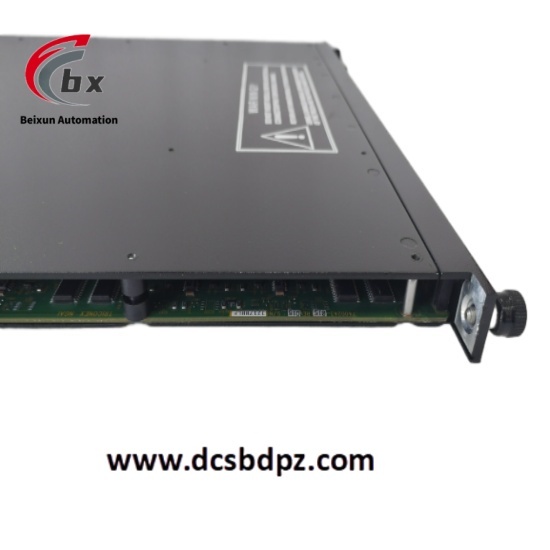

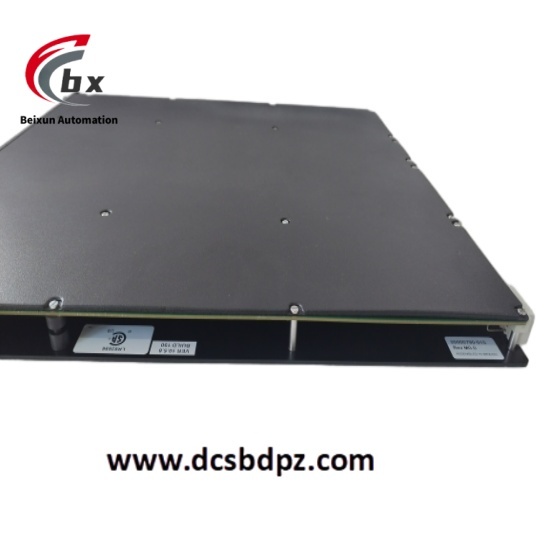

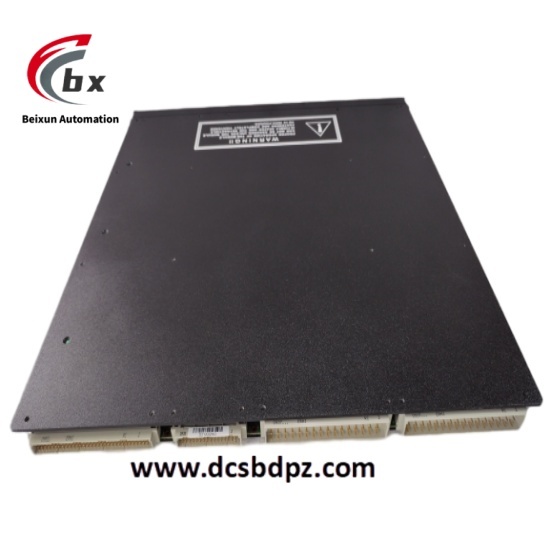

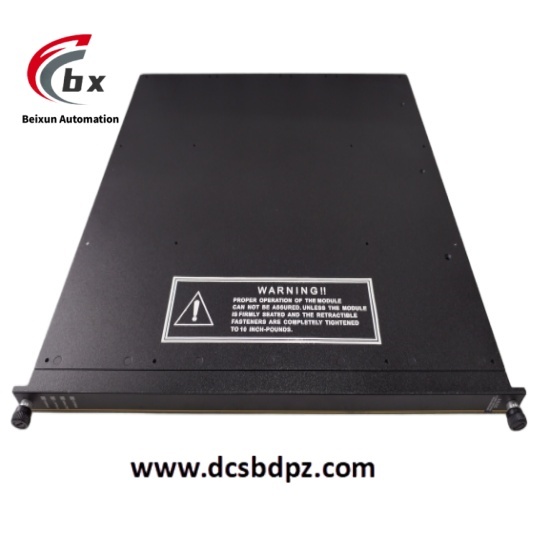

TRICONEX 3721 Analog Input Module

TRICONEX 3721 Analog Input Module

Specific parameters
Input range: 0-5VDC or -5-+5Vdc.
Input points: 32 differential channels, DC coupling.
Input update rate: 10ms.
Resolution: 12 bit or 14 bit programmable.
Accuracy: less than 0.15% of full scale between 0 ℃ and 60 ℃.
Common mode rejection:- 85dB (DC -100Hz).
Input over range protection: 150Vdc/115Vac continuous.
Weight: 1.36kg.

application area
Petrochemical industry: used for process control and status monitoring in the petrochemical production process, monitoring various process parameters to ensure production safety and stability.
Electricity: can be applied to process control and status monitoring of power plants and substations, such as monitoring the operating status parameters of power equipment.
Metallurgy: In the metallurgical production process, process variables are controlled and equipment status is monitored, such as temperature and pressure control of blast furnaces.
Pharmaceutical: Used for process control and status monitoring in the pharmaceutical production process to ensure that drug production meets quality standards.
