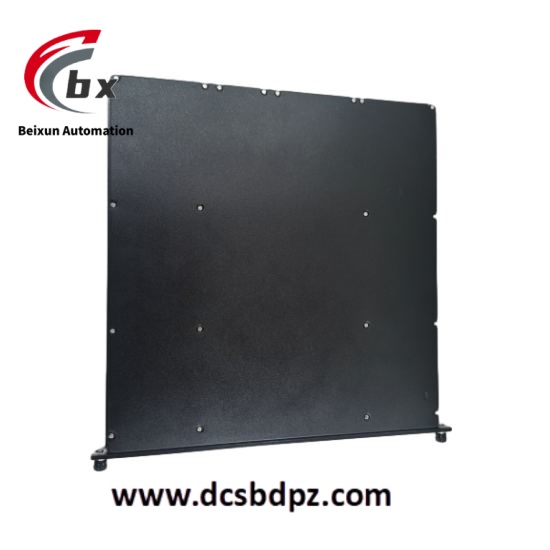

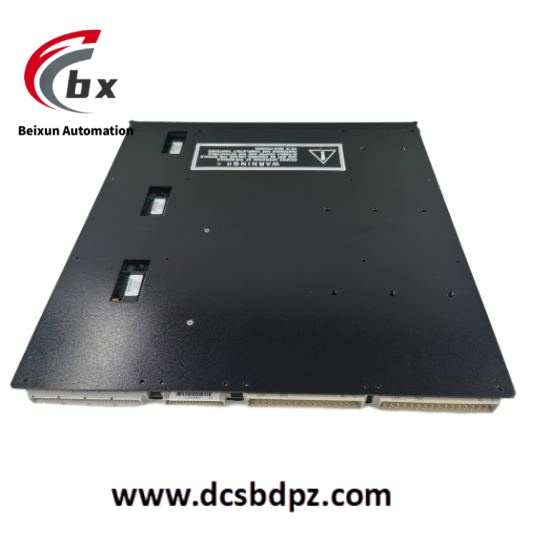

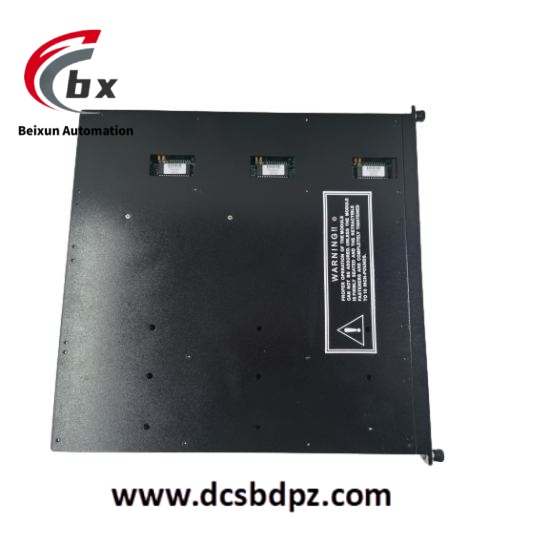

TRICONEX 3704E Analog I/O module
Specific parameters
Voltage: 0-5V or 0-10V, can be selected through TriStation software.
Input points: 64 (commonly used).
Input update rate: 75 milliseconds.
Resolution: 12 bits.
Accuracy: From 0 ° C to 60 ° C, the full-scale range (FSR) is less than 0.25%.
Power off resistance: 30k Ω (DC), typical value.
Branch to branch isolation: 200k Ω, typical.
Input out of range protection: 150VDC/115VAC continuous.
Diagnostic indicator lights: PASS, FAILT, ACTION.
Product Performance
High reliability: As a module of TMR (Triple Modular Redundancy) structure, it has high reliability and fault tolerance. Adopting a triple redundancy design, it can automatically detect and correct faults in individual modules, ensuring stable and continuous operation of the system even in harsh industrial environments, and reducing system downtime caused by module failures.
High precision signal processing: With 12 bit resolution and high accuracy, it can accurately collect and process analog signals from 0 ° C to 60 ° C, with an accuracy controlled within FSR less than 0.25%. It can accurately reflect the actual physical quantity changes in the industrial field and provide accurate data support for the control system.
Flexible configuration: Through TriStation software, the input voltage range (0-5V or 0-10V) can be flexibly selected to adapt to the output signals of different types of sensors and field devices, meeting the needs of various industrial application scenarios.
Powerful diagnostic function: equipped with PASS, FAULT, and ACTION diagnostic indicator lights, it can quickly and intuitively display the working status of the module, making it easy for maintenance personnel to detect and locate faults in a timely manner, improving the maintainability and troubleshooting efficiency of the system.
