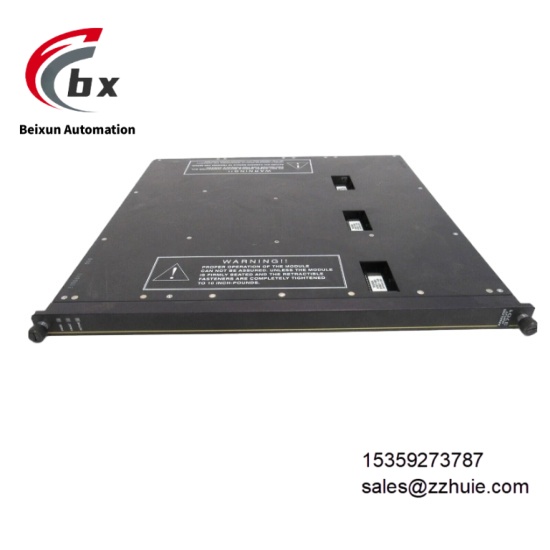

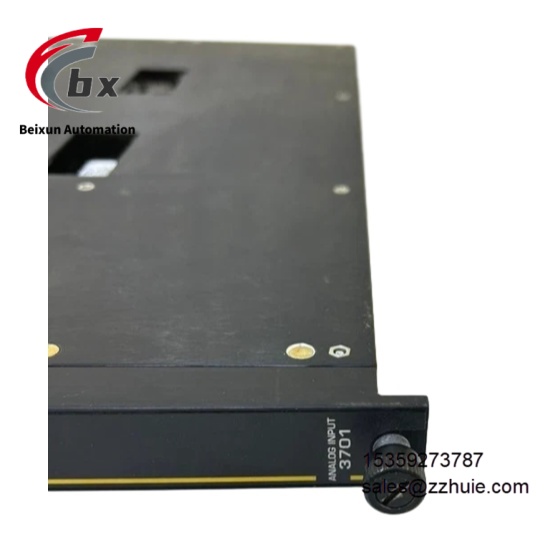

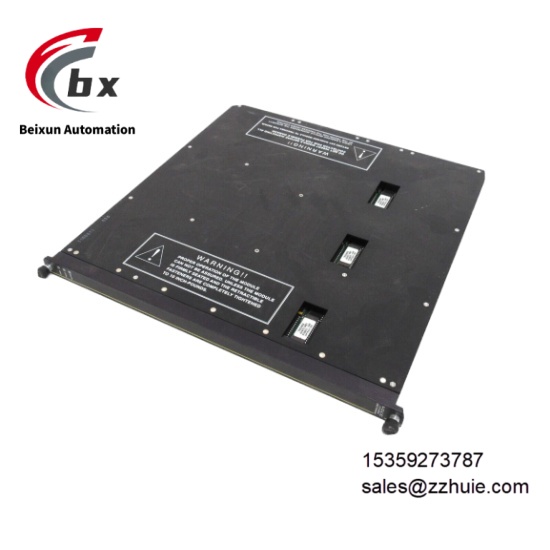

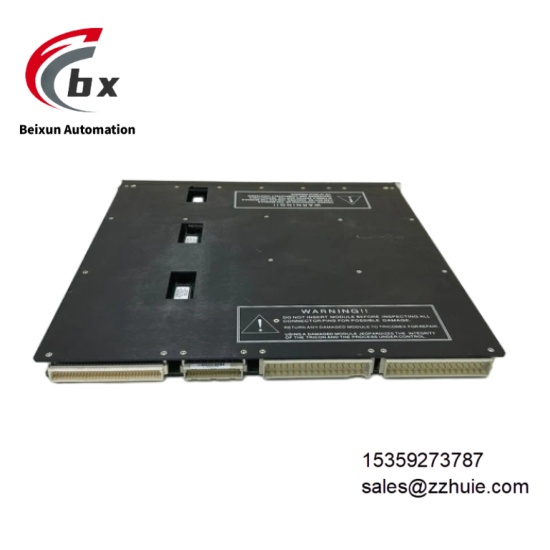

TRICONEX 3701 Analog input module
Specific Parameters
Brand TRICONEX (Original Authentic), Product Series TRICONEX Safety Instrumented System (SIS) Series
Product Type Industrial-Grade Analog Input Module, Original Authentic Spare Part
Model TRICONEX 3701
Country of Origin United States
Compatible Devices TRICON System Racks, TRICONEX Main Processors, Industrial Analog Sensors, Industrial Control Cabinets
Core Functions Analog Signal Acquisition, Differential Signal Processing, Stable Signal Transmission, Channel Status Monitoring
Product Structure Standard rack-mounted industrial module, compact design, front wiring and status indicators
Input Type Differential, DC-coupled
Input Channels 32 independent analog input channels
Input Voltage Range 0~10V DC
Operating Voltage 24V DC (11VDC to 28.8VDC)
Operating Temperature Range -40℃ to +85℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Class IP20
Mounting Method Rack embedded installation, compatible with TRICON system standard racks
Dimensions 99mm×45mm×70mm
Weight 0.4kg
Product Performance
Adaptability Performance: Fully compatible with TRICON system racks and TRICONEX main processors, supporting seamless rack integration, no additional adaptation required, high integration efficiency.
Acquisition Performance: 32 independent differential channels can perform analog signal acquisition simultaneously, with DC-coupled design, stable input range and high acquisition accuracy.
Stability Performance: Made of industrial-grade components, anti-electromagnetic interference, wide temperature operating range, differential input effectively suppresses common-mode interference, and can operate stably and continuously for a long time in complex industrial environments.
Operation and Maintenance Performance: Modular design, easy installation and disassembly, clear status indicators, which can quickly troubleshoot channel and module faults, reducing downtime.
Structural Performance: Compact rack-mounted design, reasonable layout, small space occupation in control cabinets, easy to install in combination with other I/O modules, adapting to high-density installation needs.
