TRICONEX 3700A TMR AI Module – Efficient Investment Solution

TRICONEX 3700A TMR AI Module – Efficient Investment Solution

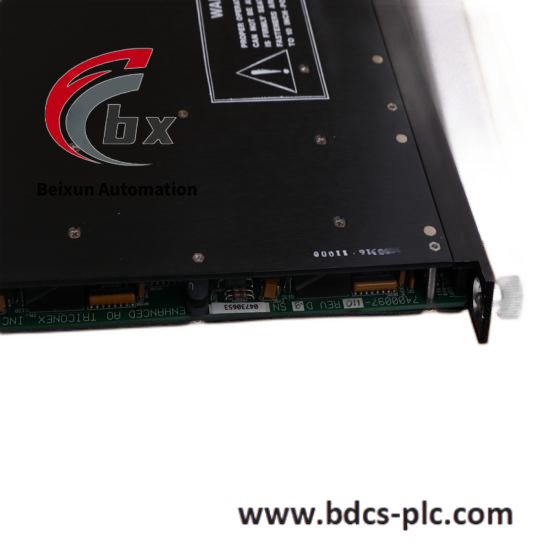

    The TRICONEX 3700A Analog I/O Module is designed for industrial automation systems requiring high precision and reliability. With its TMR (Triple Modular Redundancy) technology, it ensures continuous operation even in the event of a single module failure. Ideal for manufacturing plants looking to minimize downtime and maintain high operational efficiency.

Model Type:Analog I/O Module

Model Number:Triconex 3700a

Manufacturer:Triconex

Voltage:0-5V, + 6%

Type:TMR, AI

No. of Input Points:32, diff, DC coupled

Isolated Points:No

Input Update Rate:55 ms

Resolution:12 bits

Accuracy:< .15% of FSR, from 0° to 60°C

Input Resistance (load):30 MΩ (DC), min.

Power-Off Resistance:30 KΩ (DC), typical

Common Mode Rejection:-80 dB (DC-100Hz), typical

Common Mode Range:-12V to +12V peak

Leg-to-Leg Isolation:200 KΩ, typical

Normal Mode Rejection @ 8Hz:-3 dB

Normal Mode Rejection @ 60Hz:-17 dB

Normal Mode Rejection @ 120Hz:-23

    The TRICONEX 3700A Analog Input Module is specifically designed for high-reliability applications requiring triple modular redundancy (TMR). With its advanced features, this module ensures accurate and stable data acquisition under various conditions. Its ability to handle up to 32 differential input points makes it highly versatile for different industrial processes. The high resolution of 12 bits and accuracy of less than 0.15% of Full Scale Range (FSR) guarantee precise measurements across a wide temperature range. This model is certified and proven to enhance operational efficiency by reducing downtime and maintenance costs. Perfect for integration into existing systems or new installations, the TRICONEX 3700A AI Module provides a cost-effective solution without compromising on performance.
