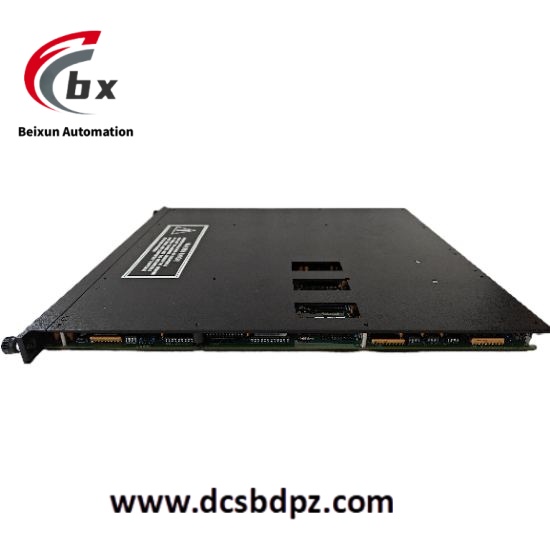

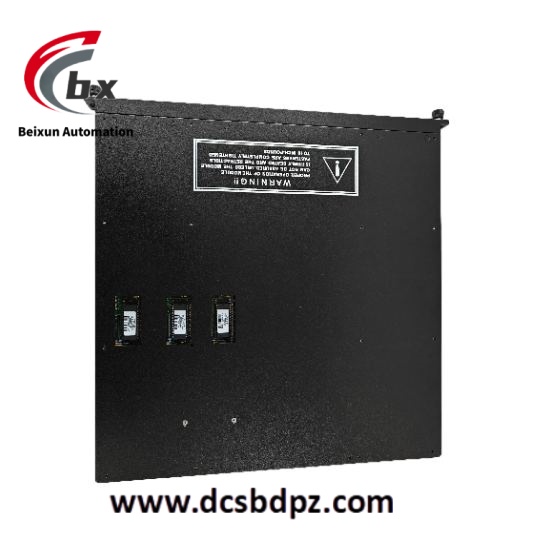

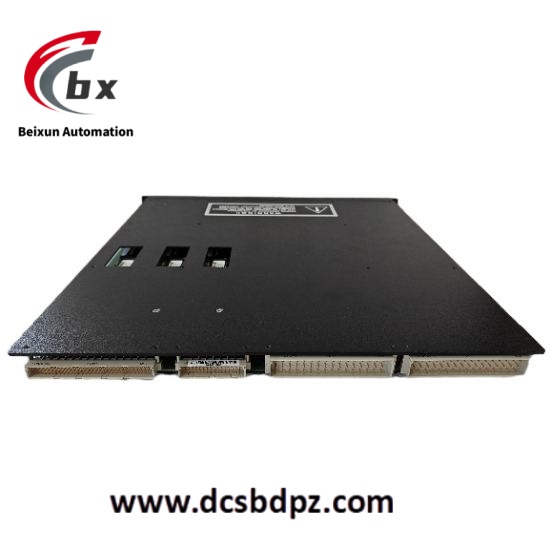

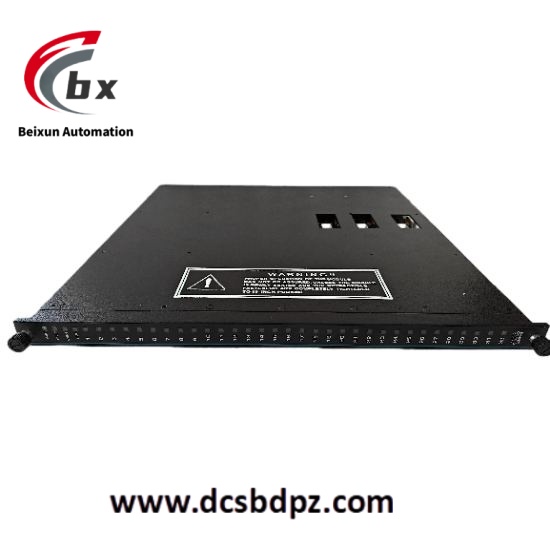

TRICONEX 3664 High reliability dual digital output module

Specific parameters
Nominal voltage: 24 VDC.
Voltage range: 16-30 VDC.
Voltage drop:<1.5 VDC (typical).
Power module: load<10 watts.
Rated current value: 2A per point, 10A surge every 10ms.
Load leakage: 2mA.
Point isolation: 1500 VDC min.
Working environment temperature: 0 ° C to 60 ° C.
Working environment humidity: 5 to 95%, non condensing.
Weight: 2.2 kilograms.

Product Performance
High reliability: The Triconex system adopts a Triple Modular Redundancy (TMR) architecture, and the 3664 module is also designed based on this architecture. Even if one module fails, the system can continue to operate, ensuring reliable output functionality in critical safety applications.
Hardware fault detection: With hardware fault detection and self diagnosis functions, it can automatically detect its own working status. Once a fault is detected, it can promptly issue an alarm or take corresponding measures, improving the automation and maintainability of the system.
Communication capability: Supports communication interfaces with other devices and systems, facilitating data exchange and integration with DCS (distributed control system), SCADA (data acquisition and monitoring control system) and other systems, enabling more complex control strategies and system architectures.
Configuration flexibility: Provides configuration flexibility by setting parameters according to specific application requirements to adapt to different process flows and control requirements.
