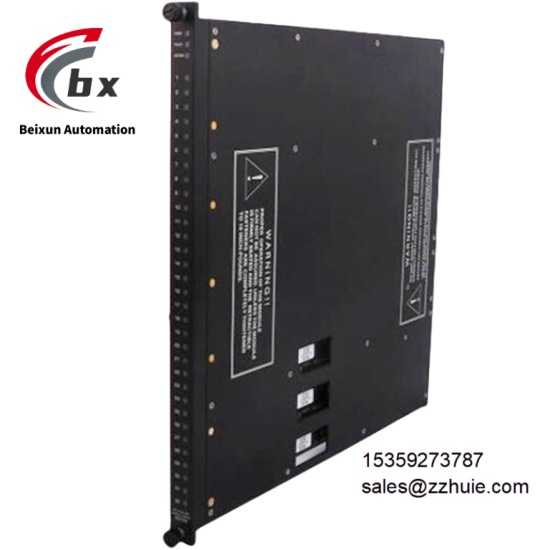

TRICONEX 3603E Analog input module
Specific Parameters
Brand TRICONEX (Original Authentic, a subsidiary of Schneider Electric), Product Series TRICONEX Tricon Series Safety Instrumented System (SIS)
Product Type Triple Modular Redundancy (TMR) Analog Input (AI) Module, Safety I/O Module, Original Authentic Spare Part
Model TRICONEX 3603E
Country of Origin United States
Compatible Devices Tricon v10/v11/v12 System Racks, 3700A/3800A Main Processor Racks, TRICONEX Main Processor Modules, TriStation 1131 Programming Software, 4-20 mA Sensors
Core Functions Analog Signal Acquisition, TMR Redundancy Control, 2-out-of-3 Voting, Channel-Level Self-Diagnosis, LED Status Indication, Online Hot Swapping, Backplane Power Supply, Signal Conditioning
Product Structure Standard rack-mounted industrial module, compact design, front multi-status LED indicators, mechanical anti-misinsertion design, industrial-grade protective shell, color is Gray
Input Channels 8 Independent Differential Analog Inputs
Input Type 4-20 mA Current Input, Supporting 0-21.2 mA Over-Range Input
Resolution 12 Bits
Input Accuracy <0.25% FSR (4-20 mA Range, 0°C to 60°C)
Isolation Method Electrical Isolation Between Channels, Dual Isolation Between Field Side / Logic Side, Isolation Voltage 500VDC
Sampling Rate 10 Samples per Second per Channel (Configurable)
Input Impedance <100Ω
Power Supply Powered by Tricon System Backplane, No External Power Required, Compatible with 24VDC System Power Specifications
System Compatibility Tricon v10, v11, v12 Safety Control Systems, TriStation 1131 Programming Software
Safety Certifications IEC 61508 SIL3, IEC 61511, UL 61010-1, CE, CSA
Maximum Power Consumption No more than 10 W
Operating Temperature Range 0°C to +70°C
Storage Temperature Range -40°C to +85°C
Relative Humidity 5% to 95%, Non-Condensing
Protection Class IP20 (Complies with IEC 60529 Standard)
Mounting Method Tricon Rack Embedded Installation, Supporting Online Hot Swapping, Occupying a Single Slot
Dimensions 127mm×102mm×38mm (Height×Width×Depth)
Weight 0.82kg
Product Performance
Adaptability Performance: Fully compatible with Tricon v10/v11/v12 systems and 3700A/3800A main processor racks, directly powered by the backplane without external power supply, seamlessly integrated with TriStation 1131 programming software, can directly connect to various 4-20 mA sensors, plug-and-play, with high integration efficiency.
Safety Performance: Adopts TMR triple modular redundancy architecture and 2-out-of-3 voting mechanism to completely eliminate single point of failure risk, dual isolation between channels and between field/logic sides, certified by IEC 61508 SIL3 and other authoritative safety standards, can quickly feedback status in case of failure, meeting the monitoring requirements of safety-critical scenarios.
Acquisition Performance: 8 channels of differential 4-20 mA current input, 12-bit resolution, accuracy <0.25% FSR, supporting over-range acquisition, stable sampling rate, perfect signal conditioning function, no drift or interference in collected data, can accurately capture changes in analog signals in industrial sites.
Operation and Maintenance Performance: Modular design, supporting online hot swapping without shutdown during maintenance, equipped with multi-status LED indicators to intuitively feedback module and channel working status, built-in channel-level self-diagnosis function can quickly locate fault points, greatly reducing downtime.
Environmental Performance: Manufactured with industrial-grade components, it has strong anti-electromagnetic interference and anti-radio frequency interference capabilities, can operate continuously and stably for a long time in a wide temperature range of 0°C to +70°C and high humidity environments, adapting to various harsh industrial sites.
