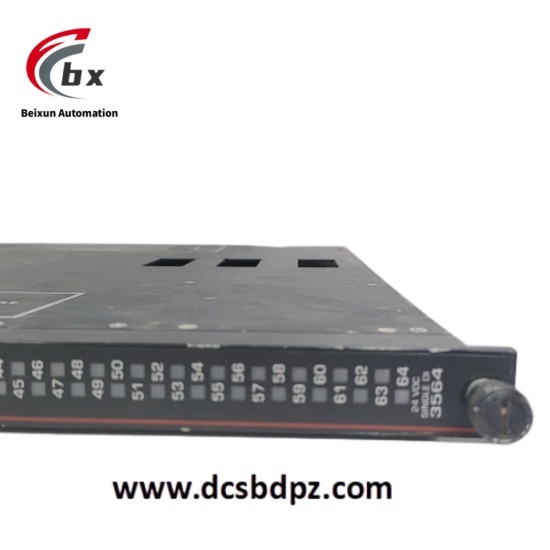

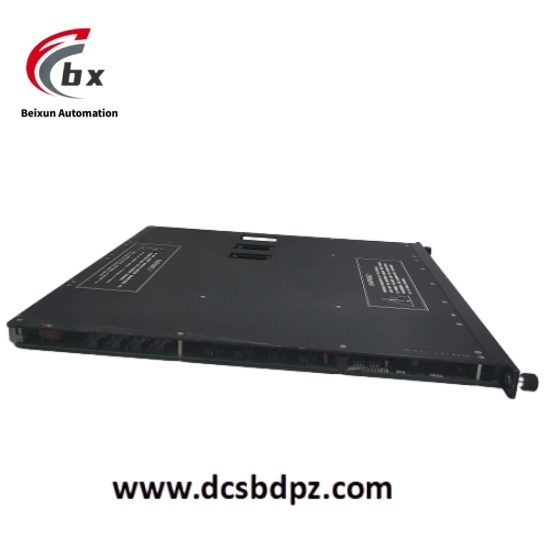

TRICONEX 3564 High performance controller module
Processor: Typically, high-performance microprocessors are used to quickly process complex control algorithms and large amounts of input and output data. For example, its computing speed may reach millions of instructions per second (MIPS), which can respond in real-time to various changes in the industrial field.
Memory: Equipped with sufficient memory for storing programs and data. Generally speaking, it may have several megabytes (MB) to tens of megabytes of flash memory for storing user programs, as well as several megabytes of random access memory (RAM) for data processing and temporary storage.
Input/output interface: It has multiple types and quantities of input/output interfaces, which can connect various field devices. For example, there may be 16 or more digital inputs (DI) used to receive switch signals; 8 or more digital outputs (DO) for controlling relays, contactors, and other equipment; It may also be equipped with analog input (AI) and analog output (AO) interfaces for connecting sensors and actuators to achieve control of continuous variables. Analog inputs typically support multiple signal types, such as 4-20mA current signals, 0-10V voltage signals, etc.
Communication interface: Supports multiple communication protocols, such as Ethernet, Profibus, Modbus, etc., for communication and data exchange with other devices. Through the Ethernet interface, it can easily connect with the upper computer monitoring system, other controllers, or remote terminals to achieve remote monitoring and distributed control.
Working temperature range: It can generally work stably within a wide temperature range, usually from -40 ℃ to+70 ℃, and is suitable for different industrial environmental conditions.
Power requirements: Typically supporting 24V DC power input, with good power stability and anti-interference ability to ensure normal operation even in the event of power fluctuations.
Performance characteristics
High reliability: Based on a triple redundant structure, the system includes three identical processors and related circuits, and compares and processes data from the three channels through a special voting mechanism. When one of the channels fails, the other two normal channels can continue to operate, ensuring the continuity and stability of the system. This redundant design greatly improves the system’s fault tolerance and reduces the risk of system crashes caused by single point failures.
Quick response capability: able to quickly process input signals and output control instructions in a timely manner, meeting the real-time requirements of industrial processes. Its response time is usually in milliseconds, which can quickly respond to changes on site and achieve precise control.
Powerful computing power: capable of executing complex control algorithms such as PID control, fuzzy control, neural network control, etc., suitable for various types of industrial control tasks. Both simple logic control and complex process control can provide accurate and stable control effects.
Flexible programming and configuration: Supports multiple programming languages such as ladder diagram (LD), instruction list (IL), function block diagram (FBD), etc., making it convenient for engineers to program according to specific needs. At the same time, it has flexible configuration options that can be configured and adjusted through software tools for input and output interfaces, communication parameters, control algorithms, etc., to adapt to different application scenarios.
