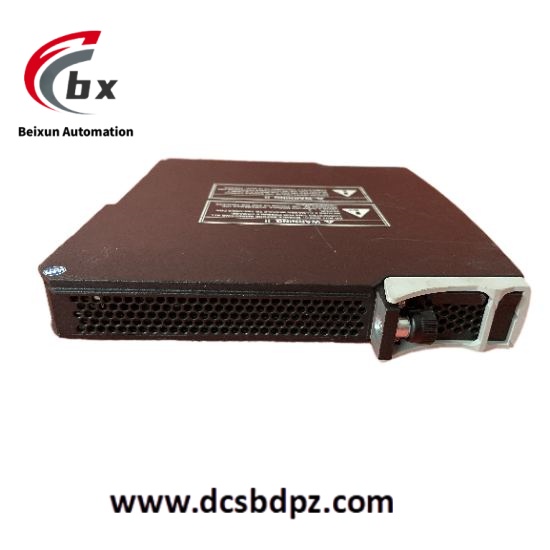

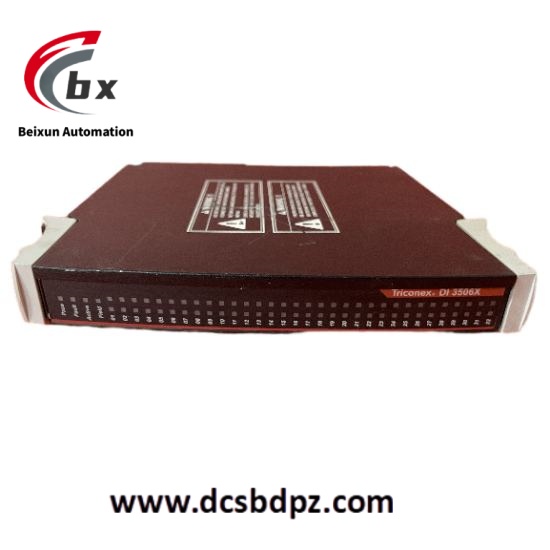

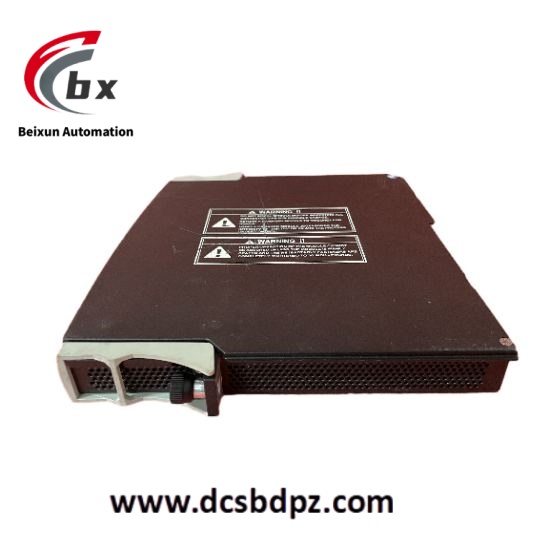

TRICONEX 3506X Multi functional hybrid I/O module
Specific parameters
Number of channels
Digital input (DI) 16 channels (independent isolation)
Analog output (AO) 8 channels (independent isolation)
signal type
Dry contact/NAMUR (± 30VDC)
4-20mA (load ≤ 750 Ω)/0-10V (load ≥ 1k Ω)
Accuracy/Response
State switching ≤ 10ms
Resolution: 16 bits, accuracy: ± 0.05% FSR
diagnosability
Wire breakage/short circuit/reverse connection detection (coverage rate>99.9%)
Open circuit/overload/overtemperature detection (coverage>99.95%)
Environmental Specifications
Working temperature: -40 ° C~+85 ° C,
Humidity 5-95% RH
Vibration resistance: 5g @ 10-500Hz (IEC 60068-2-6)
Certification standards: SIL 3 (IEC 61508/61511), IECEx/ATEX Zone 2, UL 61800-5-2
Product Performance
Dual modal intelligent switching
16 high-density DI (dry/wet contacts)+8 high-precision AO (4-20mA/0-10V) independent configurations, supporting dynamic recombination of channel level functions.
CyberSIL ™ Active Defense
Embedded hardware firewall (compliant with IEC 62443-3-3 SL2), real-time interception of abnormal instructions (such as illegal Modbus/TCP write operations).
AI-PHM Predictive Operations and Maintenance
Based on EcoStruxure ™ Asset Advisor’s lifespan degradation warning reduces maintenance costs by 40%.
