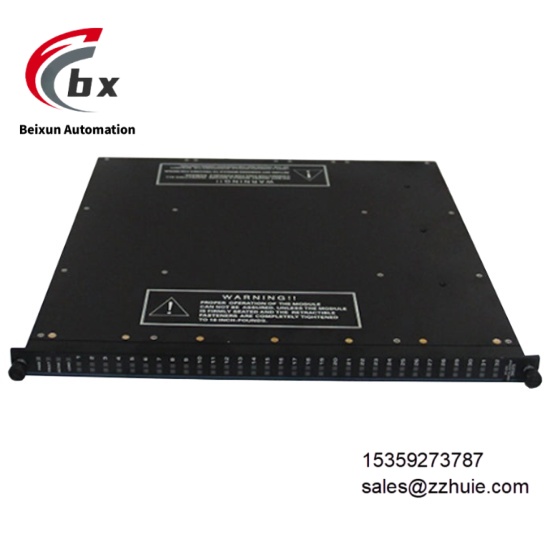

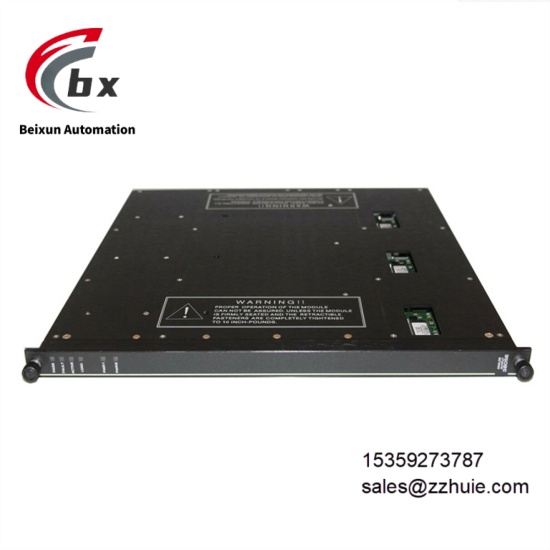

TRICONEX 3505E Analog output module

TRICONEX 3505E Analog output module

Specific Parameters

BrandTRICONEX (Original Authentic, a subsidiary of Schneider Electric), Product Series TRICONEX Tricon Series Safety Instrumented System (SIS)

Product Type Triple Modular Redundancy (TMR) Analog Output (AO) Module, Safety I/O Module, Original Authentic Spare Part

Model TRICONEX 3505E

Country of Origin United States

Compatible Devices Tricon v10/v11/v12 System Racks, 3700A/3800A Main Processor Racks, TRICONEX Main Processor Modules, TriStation 1131 Programming Software

Core Functions Safety Analog Output, TMR Redundancy Control, 2-out-of-3 Voting, Channel-Level Self-Diagnosis, LED Status Indication, Online Hot Swapping, Backplane Power Supply, Fail-Safe Output

Product Structure Standard rack-mounted industrial module, compact design, front multi-status LED indicators, mechanical anti-misinsertion design, industrial-grade protective shell, color is Pea Green

Output Channels 8 Independent Analog Outputs

Output Type 4-20 mA Current Output, Supporting +6% Over-Range (0-21.2 mA)

Resolution 12 Bits

Output Accuracy <0.25% FSR (4-20 mA Range, 0°C to 60°C)

Isolation Method Common-Loop, DC-Coupled, No Electrical Isolation Between Channels

Over-Range Protection +42.5 VDC, Continuous

Branch Fault Switching Time <10 ms (Typical)

Power Supply Powered by Tricon System Backplane, No External Power Required, Compatible with 24VDC System Power Specifications

System Compatibility Tricon v10, v11, v12 Safety Control Systems, TriStation 1131 Programming Software

Safety Certifications IEC 61508 SIL3, IEC 61511, UL 61010-1, CE, CSA

Maximum Power Consumption No more than 12 W

Operating Temperature Range 0°C to +70°C

Storage Temperature Range -40°C to +85°C

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20 (Complies with IEC 60529 Standard)

Mounting Method Tricon Rack Embedded Installation, Supporting Online Hot Swapping, Occupying a Single Slot

Dimensions 127mm×102mm×38mm (Height×Width×Depth)

Weight 0.85kg

Product Performance

Adaptability Performance: Fully compatible with Tricon v10/v11/v12 systems and 3700A/3800A main processor racks, directly powered by the backplane without external power supply, seamlessly integrated with TriStation 1131 programming software, plug-and-play, with high integration efficiency.

Safety Performance: Adopts TMR triple modular redundancy architecture and 2-out-of-3 voting mechanism to completely eliminate single point of failure risk, certified by IEC 61508 SIL3 and other authoritative safety standards, outputs safe state in case of failure, meeting the control requirements of safety-critical scenarios.

Output Performance: 8 channels of 4-20 mA current output, 12-bit resolution, accuracy <0.25% FSR, supporting +6% over-range, branch fault switching <10 ms, stable output signal without drift, which can directly drive various industrial actuators and meet the precise requirements of process control.

Operation and Maintenance Performance: Modular design, supporting online hot swapping without shutdown during maintenance, equipped with multi-status LED indicators to intuitively feedback module and channel working status, built-in channel-level self-diagnosis function can quickly locate fault points, greatly reducing downtime.

Environmental Performance: Manufactured with industrial-grade components, it has strong anti-electromagnetic interference and anti-radio frequency interference capabilities, can operate continuously and stably for a long time in a wide temperature range of 0°C to +70°C and high humidity environments, adapting to various harsh industrial sites.
