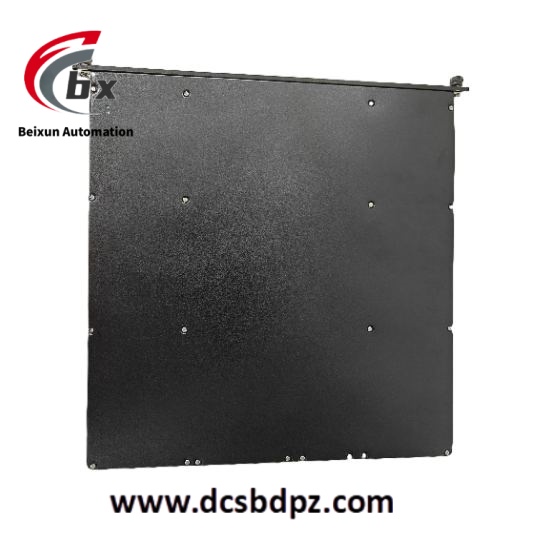

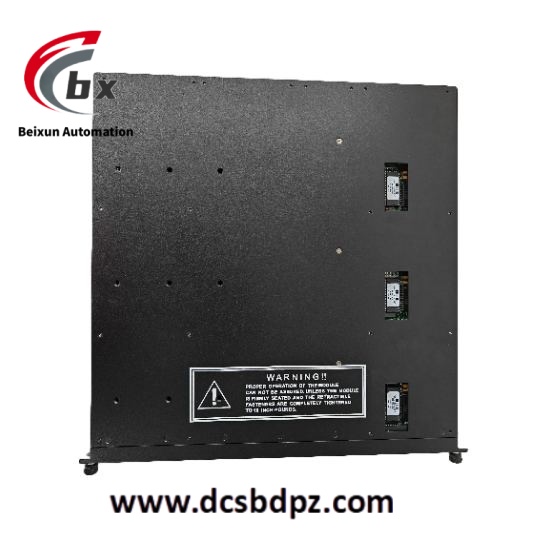

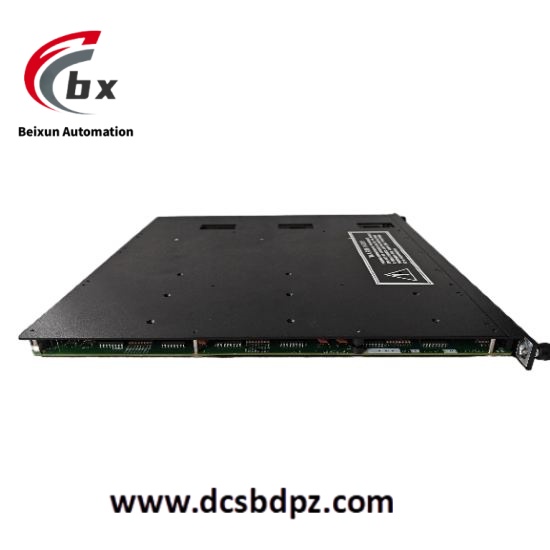

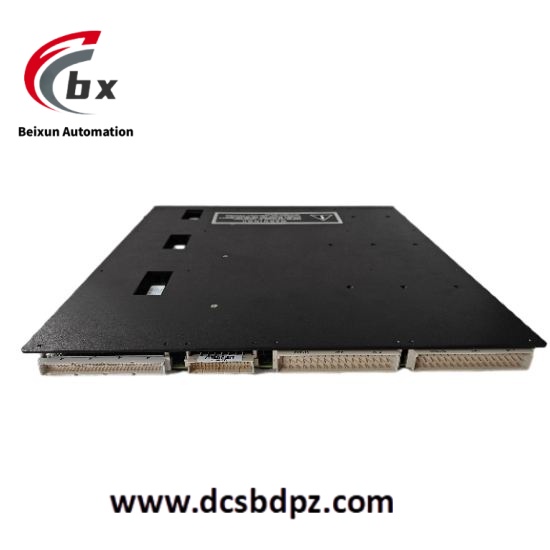

TRICONEX 3504E digital output module
Specific parameters
Input characteristics
-Signal type: 0-10V/± 10V, 0-20mA/4-20mA, RTD (Pt100/Pt1000), TC (J/K/T)
-Resolution: 24 bit ADC (effective precision of 16 bits)
-Sampling rate: 100ms/channel (full range scan)
Electrical performance
-Input impedance: ≥ 1M Ω (voltage)/250 Ω (current)
-Common mode rejection ratio: 140dB @ 50/60Hz
-Power consumption: ≤ 2.5W (full load)
Environmental adaptability
-Working temperature: -40 ° C to+85 ° C
-Humidity: 0-95% without condensation
-Vibration resistance: IEC 60068-2-6 (5g, 10-500Hz)
safety certification
– SIL 3 (IEC 61508/61511)
– ATEX/IECEx Zone 2- cFMus (UL 61800-5-2)
Product Performance
High reliability: Adopting redundant design and advanced manufacturing technology, it has excellent anti-interference ability and fault self diagnosis function, and can operate stably in harsh industrial environments, ensuring the safety and reliability of the system.
Flexible configuration: Supports multiple communication protocols and standards, seamlessly connects with different devices and systems, and facilitates system integration and expansion according to actual needs of users.
High precision output: capable of providing precise digital output signals, ensuring accurate control of external devices and meeting the control accuracy requirements of industrial processes.
