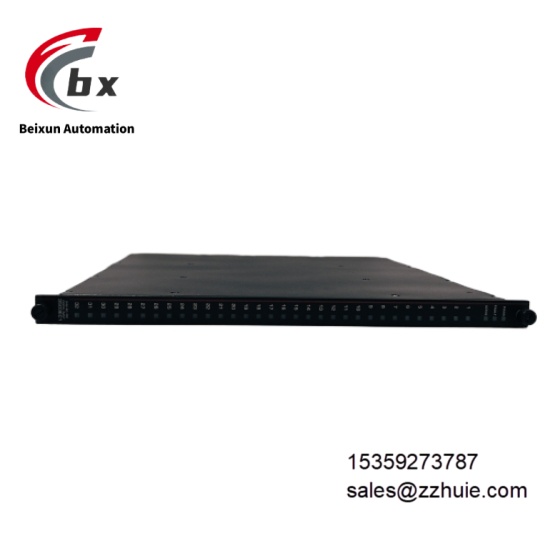

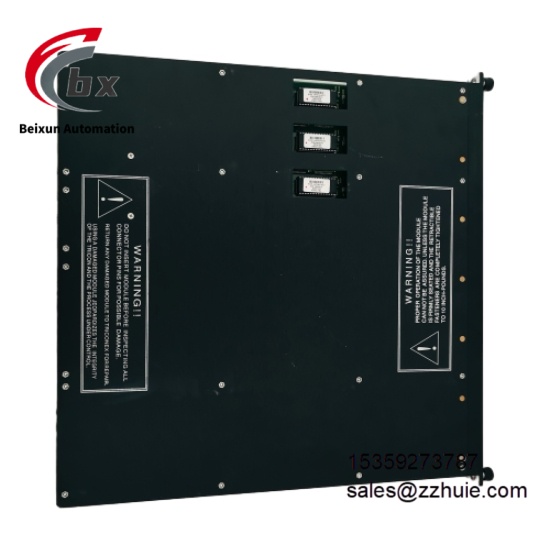

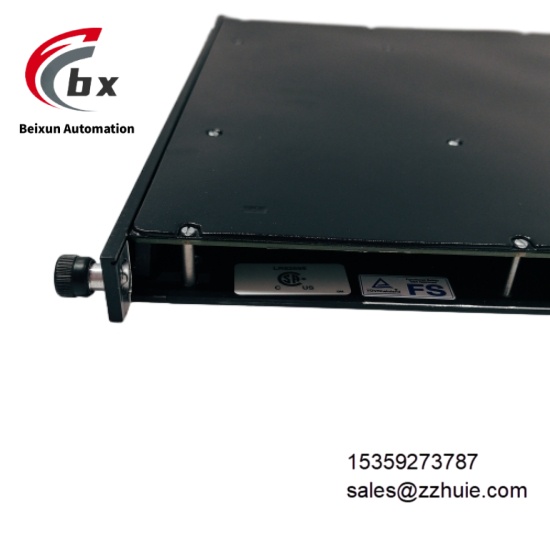

TRICONEX 3503EC1 Redundant input/output (I/O) modules

TRICONEX 3503EC1 Redundant input/output (I/O) modules

Specific Parameters​

• Electrical Parameters​

Supply Voltage: 24V DC, supporting 20-42.5V DC wide voltage input, maximum withstand voltage 42.5V AC/DC​

Input Channels: 16 analog inputs, 32 digital inputs, electrical isolation between channels​

Output Channels: 16 analog outputs, 32 digital outputs, supporting redundant switching​

Signal Types: Analog inputs compatible with 4-20mA/0-10V, digital inputs supporting normally open/normally closed/pulse signals, digital outputs supporting dry contacts/active signals​

Output Current: Maximum 500mA per analog output channel, maximum 2A per digital output channel​

Communication Interfaces: Supports Modbus TCP/IP, PROFIBUS DP, RS-485 protocols, integrates Ethernet interface, communication rate adjustable 9.6K-12Mbps​

Isolation Level: Isolation voltage ≥1500V DC between channels and between channels and backplane, insulation resistance ≥100MΩ (500V DC)​

Protection Functions: Channel short-circuit current limiting protection, power reverse connection protection, overvoltage protection (45V DC threshold)​

Power Consumption: Total module power consumption <25W​

• Environmental Parameters​

Operating Temperature: -40°C to 70°C (non-condensing)​

Storage Temperature: -40°C to 85°C​

Relative Humidity: 5% to 95% (non-condensing)​

EMC Immunity: Complies with EN 61326-1 industrial standard, ESD protection ±15kV (air discharge), ±8kV (contact discharge)​

Vibration Resistance: 10-500Hz, 1g acceleration (IEC 60068-2-6 standard)​

Protection Class: IP66 (module itself)​

Certification Standards: IEC 61508 SIL 3 certification, ATEX Zone 2 explosion-proof certification, FM certification​

• Mechanical Parameters​

Dimensions: 120mm×80mm×50mm​

Weight: Approximately 0.75kg​

Mounting Method: TRICONEX standard chassis slot mounting, supporting hot swapping​

Housing Material: Flame-retardant reinforced plastic (UL 94 V-0 grade)​

Terminal Type: Spring-loaded crimp terminals, compatible with 16-24 AWG wires​

Indicators: Power Status (PWR, green steady on), Module Operation Status (RUN, green blinking), Channel Fault (ERR, red steady on), Communication Status (COM, yellow blinking)​

Product Performance​

The module adopts Triple Modular Redundancy (TMR) architecture, with three independent channels working in parallel and executing 2oo3 voting logic. When a single channel fails, the redundant channel takes over seamlessly, with a fault isolation rate of 100%, ensuring the continuity of signal acquisition and output. It is certified to IEC 61508 SIL 3, with a safety integrity level meeting the requirements of safety-critical scenarios such as Emergency Shutdown (ESD) and Burner Management System (BMS).​

The analog signal acquisition accuracy is ≤±0.1% full scale, and the digital signal response time is <2ms, which can quickly capture on-site status changes and execute control instructions. It integrates comprehensive self-diagnosis function, which can real-time detect faults such as channel open/short circuit, power abnormality and communication interruption, with a diagnosis coverage rate of ≥99.5%. Fault information is uploaded to the controller in real time via redundant bus.​

The module supports fail-safe mode, and the output can be configured to preset safe state (such as hold/zero) when a fault occurs. The Mean Time Between Failures (MTBF) is ≥1,500,000 hours (25℃ environment), adapting to 24/7 continuous production scenarios. The modular design enables maintenance and replacement time ≤10 seconds.​
