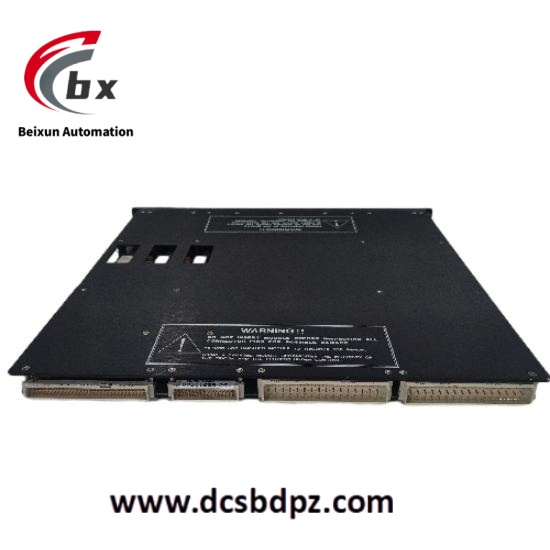

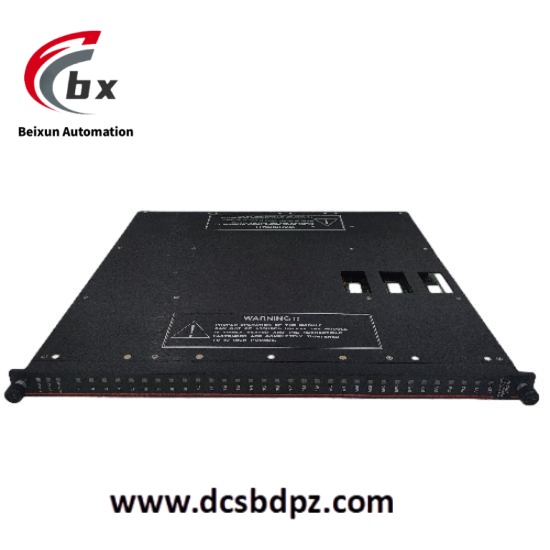

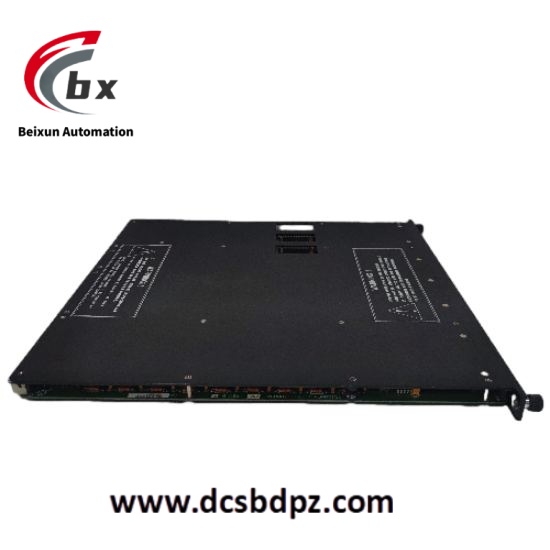

TRICONEX 3501E Digital signal processing module
Specific parameters
Channel configuration: 32 independent output channels (each with physical isolation)
Output type: Solid state relay (SSR) output, supports dry contact signal (passive contact)
Load capacity
-Continuous load current: 8A/channel (40 ° C environment)
-Peak current: 16A/100ms (transient drive)
Voltage range: 5-60V DC (compatible with 24V/48V industry standards)
Security architecture: TMR triple redundancy, 2oo3 (two out of three) voting logic
Fault response: Automatic guidance to safe state (power-off mode)
Diagnostic functions: channel level open/short circuit detection, overload protection, module temperature monitoring
Isolation strength
Channel isolation: 1500V AC;
Channel and backplane isolation: 2500V AC
Certification level: SIL 3 (IEC 61508/61511), ATEX/IECEx (explosion-proof) UL Class 1 Div 2
Working environment: -40 ° C to+70 ° C; humidity 5-95% non condensing
Product Performance
High reliability: designed for safety instrumented systems, with redundant design and fail safe functions to ensure high availability of the system. In the event of partial failures, the system can still operate normally, reducing downtime and production losses caused by failures.
Modular design: easy to install and maintain, supports flexible system configuration. It can be combined and expanded according to actual needs, facilitating system upgrades and transformations.
Multiple input types: Supports multiple digital input types, can adapt to signal output of different field devices, and has strong compatibility.
High density: A single module can provide multiple digital input channels, improving system integration, reducing module quantity and installation space, and lowering system costs.
High speed data processing capability: capable of supporting high-speed data processing, suitable for real-time monitoring and control scenarios, able to respond promptly to changes in the status of on-site equipment, ensuring the safety and stability of the system.
Compatibility: Compatible with the TRICONEX Trident security system, seamlessly integrated with other modules and systems, suitable for various industrial environments.
