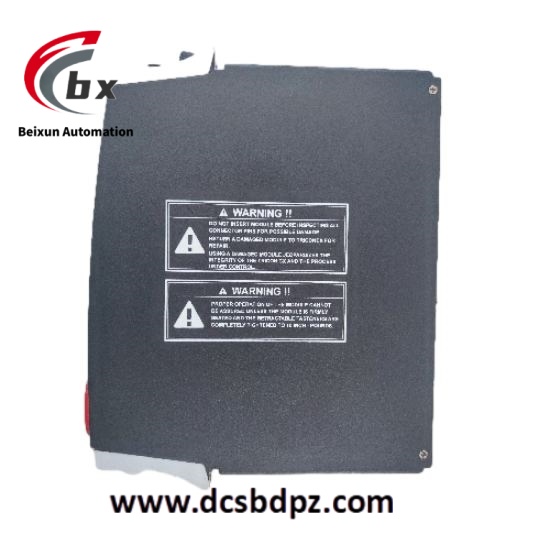

TRICONEX 3009X 32 channel digital input module
Specific parameters
Number of channels: 32 independent isolated input channels
Input type: Dry Contact or NAMUR sensor (compliant with IEC 60947 standard)
Voltage range: 5-30 V DC (typical operating voltage 24V DC)
Isolation level: Channel isolation voltage: 1500V AC/DC; Channel and system backplane isolation: 2500V AC/DC
Response time: ≤ 10ms (from signal change to logic processing completion)
Diagnostic functions: open/short circuit detection, module status self-test, communication fault alarm (real-time monitoring through Tricon diagnostic software)
Certification standards: SIL 3 (IEC 61508/61511), ATEX/IECEx (explosion-proof), CE, UL certification
Working temperature: -40 ° C to+70 ° C (industrial wide temperature range)
Compatibility: Tricon v9-v11 system rack, supports hot swappable maintenance
Product Performance
Triple Redundancy Security Architecture (TMR)
Each input signal is processed in parallel through three independent sub channels and output through a “2oo3” (two out of three) voting mechanism. Single point faults do not affect system functionality.
The hardware fault tolerance rate is 99.99%, and the MTBF (mean time between failures) is greater than 100 years (third-party certification data).
Advanced diagnostic coverage
Real time monitoring of input circuit integrity (such as cable breakage and grounding faults), with a diagnostic coverage rate of ≥ 95%, significantly reducing safety risk failure rates.
Modular thermal maintenance capability
Support module replacement during operation without downtime, ensuring continuous production safety (with redundant power supply and configuration).
anti-interference design
Compliant with IEC 61000 electromagnetic compatibility standard, with surge resistance and EFT (electrical fast transient) capability of 4kV/2kA, suitable for strong electromagnetic environments.
