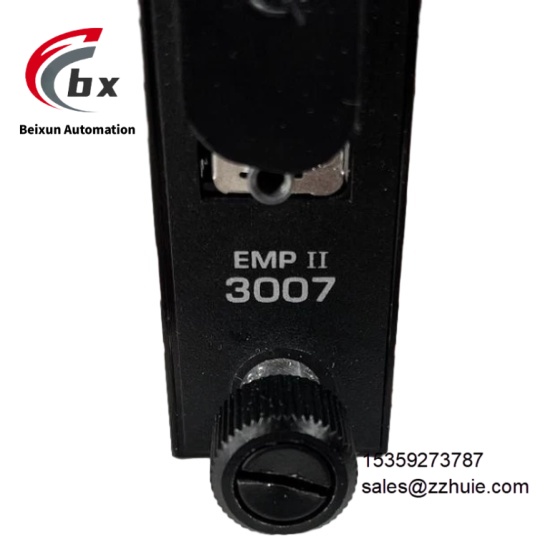

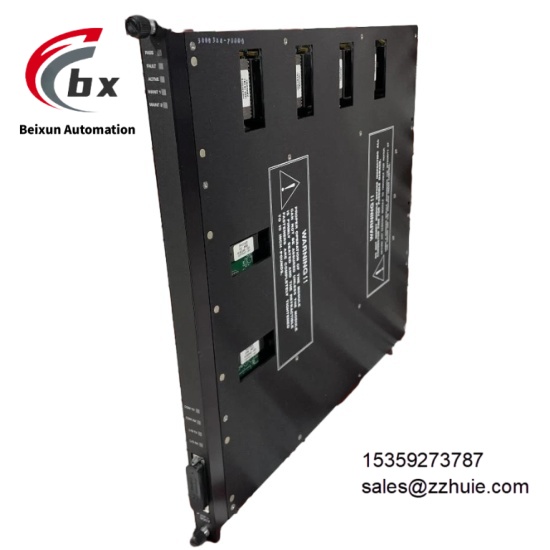

TRICONEX 3007 Redundant (TMR) main processor module

TRICONEX 3007 Redundant (TMR) main processor module

Specific Parameters

Brand TRICONEX (Original Authentic, a subsidiary of Schneider Electric), Product Series TRICONEX Tricon Series Safety Instrumented System (SIS)

Product Type Triple Modular Redundancy (TMR) Main Processor Module (MPM), Original Authentic Spare Part

Model TRICONEX 3007

Country of Origin United States

Compatible Devices Tricon Series Safety Instrumented System Racks, TRICONEX I/O Modules, Industrial Control Cabinets, Triconex Programming Software (TriStation)

Core Functions Safety Control Program Execution, I/O Data Processing, Safety Interlock Triggering, TMR Redundancy Control, Tribus Backplane Communication, Built-in Self-Diagnosis, Fault Monitoring, Program Storage and Backup

Product Structure Standard rack-mounted industrial module, compact design, front multi-status LED indicators, mechanical anti-misinsertion design, black shell

Microprocessor Motorola MPC860, 32-bit, 66 MHz

Memory 32 MB DRAM (non-battery backed), 64 KB SRAM (battery backed), 16 MB Flash PROM

Communication Speed Tribus backplane communication speed 50 Mbps

Communication Protection 32-bit CRC protection, supporting encrypted data transmission

I/O Bus 32-bit DMA, fully electrically isolated

System Compatibility Compatible with Tricon v10.0 and above systems

System Configuration Three modules need to be installed per Tricon system to achieve triple redundancy

Operating Voltage 24V DC (11VDC to 28.8VDC)

Maximum Power Consumption No more than 28W

Operating Temperature Range -40℃ to +70℃

Storage Temperature Range -40℃ to +85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20 (Complies with IEC 60529 Standard)

Mounting Method Tricon rack embedded installation, supporting online hot swapping, occupying a single slot

Dimensions 160mm×110mm×50mm (Height×Width×Depth)

Weight 1.4kg

Product Performance

Adaptability Performance: Fully compatible with Tricon Series Safety Instrumented System racks and TRICONEX I/O modules, compatible with Tricon v10.0 and above, no additional adaptation required, high integration efficiency, perfectly matching the system’s triple redundancy configuration requirements.

Processing Performance: Equipped with a 32-bit high-frequency Motorola MPC860 processor, the operation speed is superior to the basic models of the same series. Combined with large-capacity memory, it can quickly execute complex safety control programs, process massive I/O data in real time, with extremely low response delay, meeting the fast control needs of high-risk scenarios.

Stability Performance: Adopting TMR triple modular redundancy architecture and 2-out-of-3 voting mechanism, it completely eliminates the risk of single point of failure. Made of industrial-grade components, it has strong anti-electromagnetic interference and anti-radio frequency interference capabilities, and can operate continuously and uninterrupted for a long time in harsh industrial environments.

Operation and Maintenance Performance: Modular design, supporting online hot swapping, no need to shut down the machine during maintenance. Multi-status LED indicators can intuitively feedback the module operation status and fault type. The built-in self-diagnosis function can quickly locate fault points, greatly reducing downtime.

Communication Performance: Realizes 50 Mbps high-speed redundant communication through the Tribus backplane, 32-bit CRC protection + encrypted data transmission ensures safe and lossless data transmission, and can realize synchronous data interaction between modules and between modules and I/O devices, ensuring accurate synchronization of control logic.
