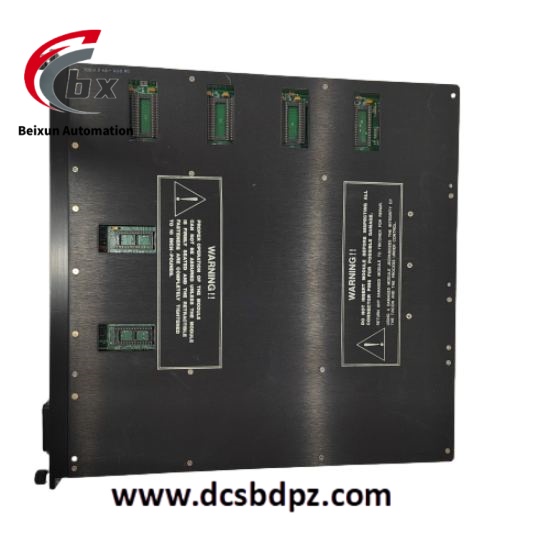

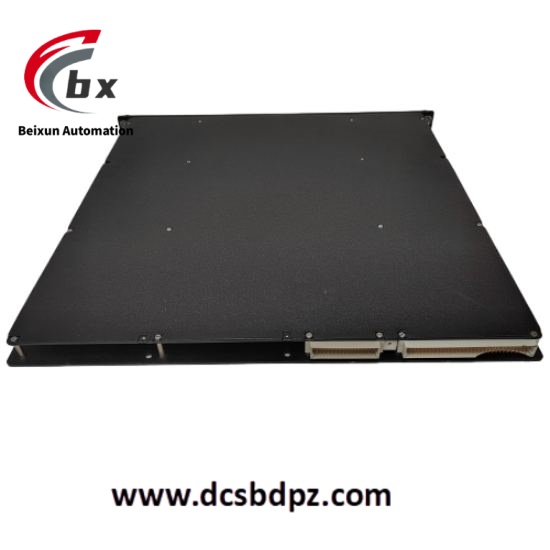

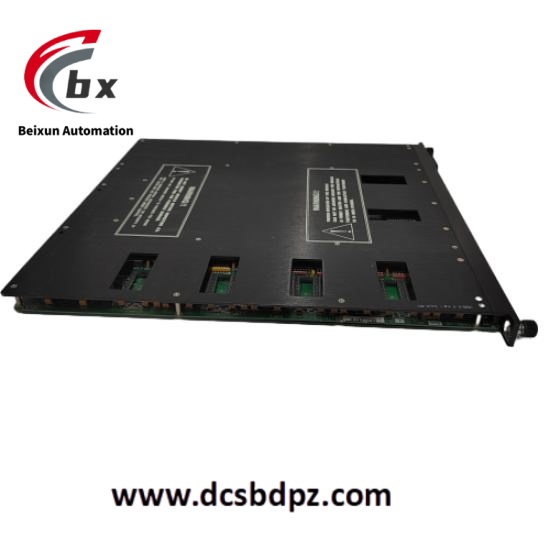

TRICONEX 3006 Triple power module
Specific parameters
Number of channels: 6.
Input/output types: digital input and digital output.
Signal isolation: Supports signal isolation.
Explosion proof grade: Exia IIB T2.
Working temperature: -40 ° C to 75 ° C.
Storage temperature: -40 ° C to 85 ° C.
Relative humidity: 5% to 95% (non coated).
Vibration: 5g to 2000Hz, peak to peak values.
Impact: 5g, duration of 22 milliseconds.
Size: 114mm x 89mm x 25mm.
Weight: 0.3 kilograms.
Installation method: DIN rail installation.
Product Performance
High reliability: Adopting a triple structure, high-quality components, and advanced manufacturing processes, supporting hot standby plugging and automatic switching functions, the system can still operate stably in the event of a single module failure. The full control system adopts comprehensive logic comparison diagnosis technology to improve the coverage of system fault self diagnosis, and the reliability and availability of I/O modules reach 99.9998%.
Strong fault tolerance: Through the Triple Modular Redundancy (TMR) architecture, the controller consists of three identical channels, each of which independently executes application programs. The on-site digital input and output, as well as analog input, follow intermediate values, and there is no single point of failure in any channel. It can operate correctly with 3, 2, or 1 main processor intact.
Flexible configuration: Provides flexible configuration options, supports multiple input/output channels and diagnostic functions, and can be customized according to different application needs.
Easy to maintain: The module design is simple and easy for installation and maintenance personnel to operate. It can be installed and adjusted on-site while the controller is online, as well as configured and debugged on-site terminal wiring.
Strong communication capability: The communication port supports MODBUS slave/master/master/slave protocols, Tristation, TSAA (including DDE, OPC), and point-to-point communication protocols. Redundant MODBUS communication and redundant high-speed Ethernet communication can also be selected, and multiple TRICONEX safety control systems can be expanded.
