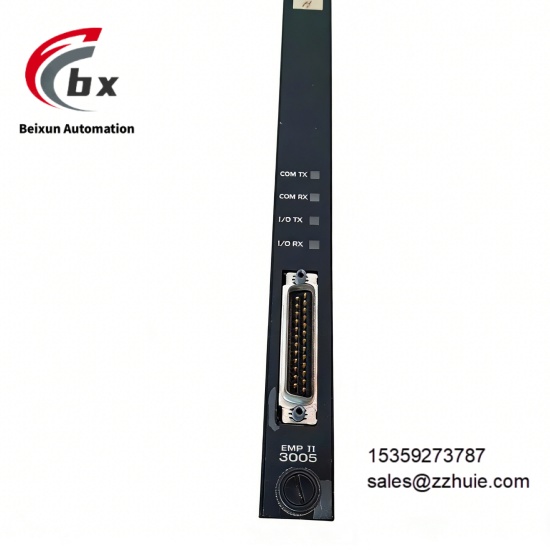

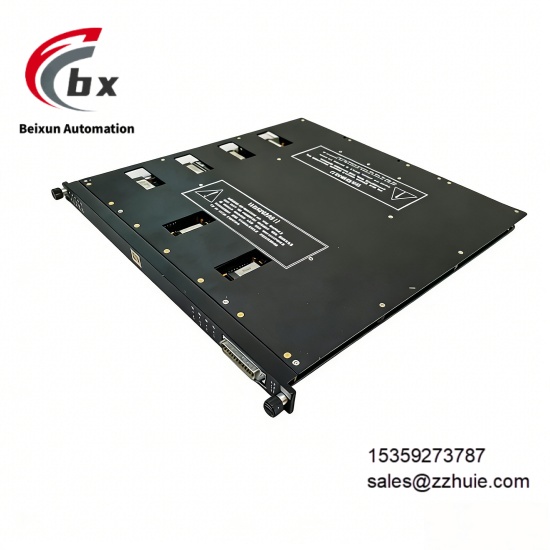

TRICONEX 3005 Microprocessor module
Specific Parameters
Module Type Microprocessor Module
Processor Type High-performance 32-bit Industrial Processor
Memory Capacity 32MB Program Memory, 64MB Data Memory
Rated Operating Voltage 24VDC
Voltage Range 18-32VDC
Processing Speed 150MHz
Response Time ＜0.6ms
Operating Temperature Range -40℃ to +70℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Class IP20
Weight Approx.1.3kg
Mounting Type Standard 35mm DIN Rail Mounting, TRICONEX System Rack Mounting
Electromagnetic Compatibility Compliant with EN 61000-6-2/6-4 Standards
Safety Integrity Level SIL3, Compliant with IEC 61508 Standard
Isolation Type Isolation between Power Supply and Signal, Isolation between Channels and System Bus, IO Link Isolation
Power Consumption ＜22W (at 24VDC)
Diagnostic Functions Processor Fault Self-diagnosis, Memory Fault Diagnosis, Power Fault Diagnosis, Communication Fault Diagnosis, Bus Fault Diagnosis, IO Link Fault Diagnosis
Product Performance
High-speed Processing Performance: Equipped with a high-performance 32-bit industrial processor, the processing speed can reach 150MHz, which can quickly execute complex control algorithms and data processing tasks without delay or freeze, meeting the strict requirements of industrial real-time control scenarios.
Large-capacity Storage Performance: Built-in 32MB program memory and 64MB data memory, which can store a large amount of program code and industrial control data, supporting users to develop complex control strategies without additional extended storage modules.
Redundant Fault-tolerant Performance: Adopts redundant design architecture, can automatically detect and isolate faults of processor, memory, communication link and IO link, and does not affect the overall operation of the system when a fault occurs, ensuring the continuity and stability of the industrial control process.
Comprehensive Diagnostic Performance: Built-in complete diagnostic functions including processor fault, memory fault, power fault, communication fault, bus fault and IO link fault, can monitor the module operation status in real time, quickly report faults to the system when faults occur, supports remote diagnosis and maintenance, and shortens fault troubleshooting time.
Anti-interference Performance: Complies with EN 61000-6-2/6-4 electromagnetic compatibility standards, possesses strong anti-interference ability, can effectively resist various interferences such as power grid harmonics, equipment start-stop impact and space electromagnetic radiation in industrial sites, no program disorder and no false command issuance during long-term operation.
Wide Temperature Adaptation Performance: Operating temperature covers -40℃ to +70℃, can work stably in extremely cold or high-temperature environments, adapts to various harsh industrial sites, no constant temperature control required, trouble-free operation all-weather.
Hot Swap Performance: Supports online hot swapping, can replace the module without stopping the system, does not affect the overall system operation, reduces unplanned downtime and improves factory production efficiency.
System Compatibility Performance: Perfectly adapts to TRICONEX Trident series and Tricon CX series control systems, can be seamlessly connected with the same series of digital input/output modules, analog modules and communication modules, supports multiple communication protocols, completes system integration without additional debugging, and has strong IO expansion capability.
