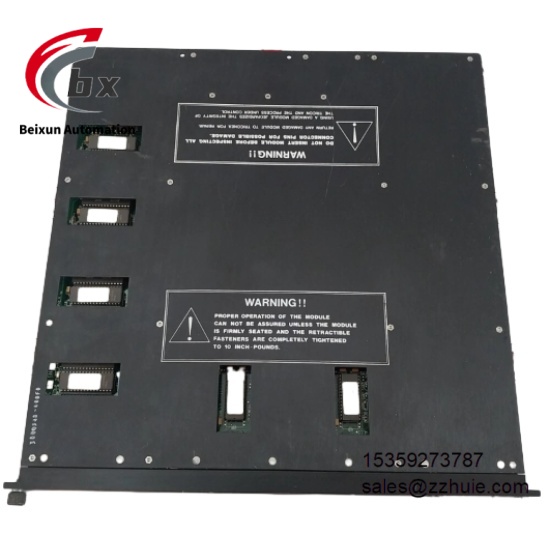

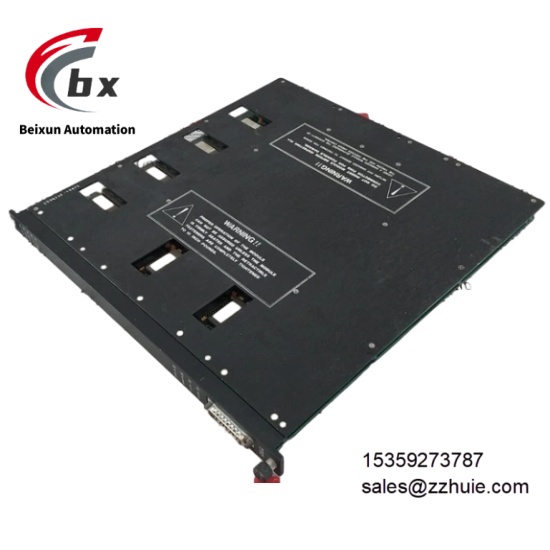

TRICONEX 3004 Redundant (TMR) main processor module

TRICONEX 3004 Redundant (TMR) main processor module

Specific Parameters

Brand TRICONEX (Original Authentic, a subsidiary of Schneider Electric), Product Series TRICONEX Tricon Series Safety Instrumented System (SIS)

Product Type Triple Modular Redundancy (TMR) Main Processor Module (MPM), Original Authentic Spare Part

Model TRICONEX 3004

Country of Origin United States

Compatible Devices Tricon Series Safety Instrumented System Racks, TRICONEX I/O Modules, Industrial Control Cabinets, Triconex Programming Software (TriStation)

Core Functions Safety Control Program Execution, I/O Data Processing, Safety Interlock Triggering, TMR Redundancy Control, Tribus Backplane Communication, Built-in Self-Diagnosis, Fault Monitoring

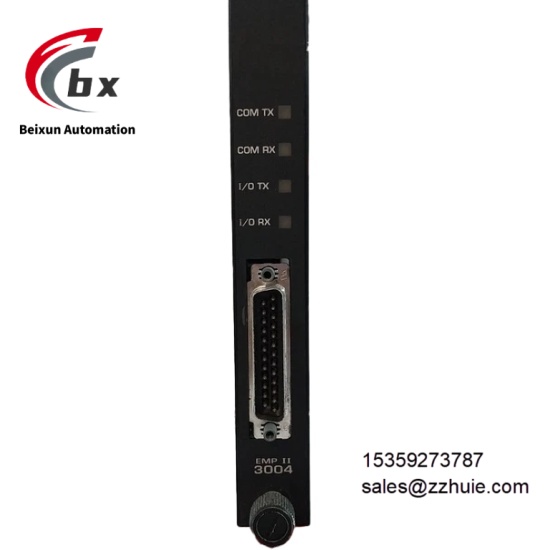

Product Structure Standard rack-mounted industrial module, compact design, front multi-status LED indicators, mechanical anti-misinsertion design, black or blue shell (depending on specific model)

Microprocessor Motorola MPC860, 32-bit, 50 MHz

Memory 16 MB DRAM (non-battery backed), 32 KB SRAM (battery backed), 6 MB Flash PROM

Communication Speed Tribus backplane communication speed 25 Mbps

Communication Protection 32-bit CRC protection

I/O Bus 32-bit DMA, fully isolated

System Compatibility Compatible with Tricon v9.6 and above systems

System Configuration Three modules need to be installed per Tricon system

Operating Voltage 24V DC (11VDC to 28.8VDC)

Maximum Power Consumption No more than 25W

Operating Temperature Range -40℃ to +70℃

Storage Temperature Range -40℃ to +85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20 (Complies with IEC 60529 Standard)

Mounting Method Tricon rack embedded installation, supporting online hot swapping, occupying a single slot

Dimensions 160mm×110mm×50mm (Height×Width×Depth)

Weight 1.3kg

Product Performance

Adaptability Performance: Fully compatible with Tricon Series Safety Instrumented System racks and TRICONEX I/O modules, compatible with Tricon v9.6 and above, no additional adaptation required, high integration efficiency, meeting the system’s triple redundancy configuration requirements.

Processing Performance: Equipped with a 32-bit Motorola MPC860 processor, with stable operation speed, combined with large-capacity memory, it can quickly execute complex safety control programs, process I/O data in real time, with low response delay, meeting the control needs of critical scenarios.

Stability Performance: Adopting TMR triple modular redundancy architecture and 2-out-of-3 voting mechanism, eliminating the risk of single point of failure, made of industrial-grade components, with strong anti-electromagnetic interference capability, and can operate continuously and uninterrupted for a long time in harsh industrial environments.

Operation and Maintenance Performance: Modular design, supporting online hot swapping, no need to shut down the machine during maintenance, multi-status LED indicators can intuitively feedback the module operation status, and the built-in self-diagnosis function can quickly troubleshoot faults, reducing downtime.

Communication Performance: Realizes 25 Mbps high-speed redundant communication through the Tribus backplane, 32-bit CRC protection ensures safe data transmission, and can realize stable data interaction between modules and between modules and I/O devices, ensuring the synchronization of control logic.
