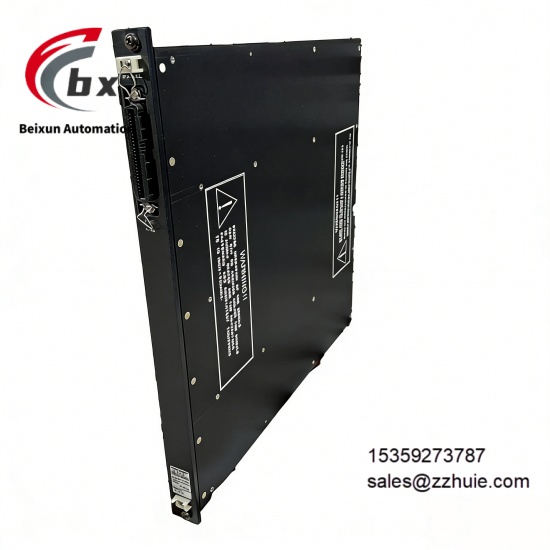

TRICONEX 2755 Digital output module
Specific Parameters
Module Type Digital Output Module (DO)
Number of Outputs 16 points, grouped common connection
Output Type Relay Output
Rated Output Voltage 24VDC/120VAC
Voltage Range 18-32VDC, 90-130VAC
Response Time ＜3ms
Operating Temperature Range -40℃ to +70℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Class IP20
Weight Approx.1.0kg
Mounting Type Standard 35mm DIN Rail Mounting, TRICONEX System Rack Mounting
Electromagnetic Compatibility Compliant with EN 61000-6-2/6-4 Standards
Safety Integrity Level SIL3, Compliant with IEC 61508 Standard
Isolation Type Optoelectronic Isolation between Channels, Isolation between Channels and System Bus
Output Current 5A (at 24VDC), 2A (at 120VAC)
Diagnostic Functions Open-circuit Detection, Short-circuit Detection, Channel Fault Self-diagnosis, Power Fault Diagnosis
Product Performance
High-precision Output Performance: Possesses high-precision digital signal output capability, can accurately output industrial on-site control signals, with no distortion and no delay in output, ensuring the accuracy of equipment control, and meeting the strict requirements for signal output precision in safety-critical scenarios.
Redundant Fault-tolerant Performance: Adopts redundant design architecture, can automatically detect and isolate faulty channels, when a single channel fails, it does not affect the normal operation of other channels, the system operates continuously and stably, no single point of failure, ensuring continuous availability of safety-critical applications.
Comprehensive Diagnostic Performance: Built-in complete diagnostic functions including open-circuit detection, short-circuit detection, channel fault self-diagnosis and power fault diagnosis, can monitor the status of output channels and power supply in real time, quickly report faults to the system when faults occur, supports remote diagnosis and maintenance, shortens fault troubleshooting time and improves system maintainability.
Anti-interference Performance: Complies with EN 61000-6-2/6-4 electromagnetic compatibility standards, possesses strong anti-interference ability, can effectively resist various interferences such as power grid harmonics, equipment start-stop impact and space electromagnetic radiation in industrial sites, no signal disorder and no false triggering during long-term operation.
Wide Temperature Adaptation Performance: Operating temperature covers -40℃ to +70℃, can work stably in extremely cold or high-temperature environments, adapts to various harsh industrial sites, no constant temperature control required, trouble-free operation all-weather.
Hot Swap Performance: Supports online hot swapping, can replace the module without stopping the system, does not affect the overall system operation, reduces unplanned downtime and improves factory production efficiency.
System Compatibility Performance: Perfectly adapts to TRICONEX Trident series and Tricon CX series safety control systems, can be seamlessly connected with the same series of digital input modules, analog modules and communication modules, completes system integration without additional debugging.
Load Compatibility Performance: Compatible with various load types, adapts to on-site executive equipment of different powers, no additional adapter components required, reducing on-site deployment cost and difficulty.
