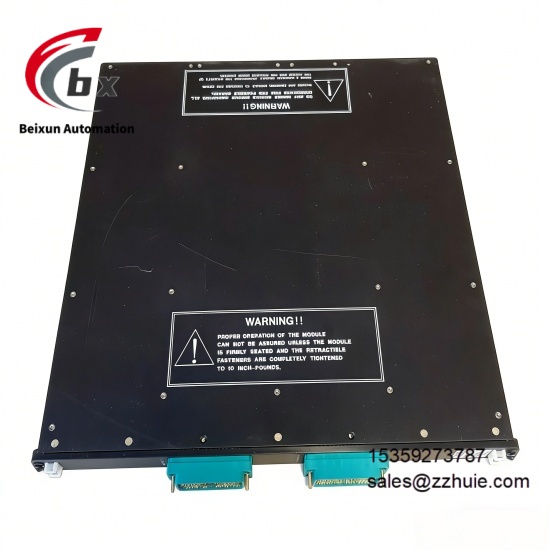

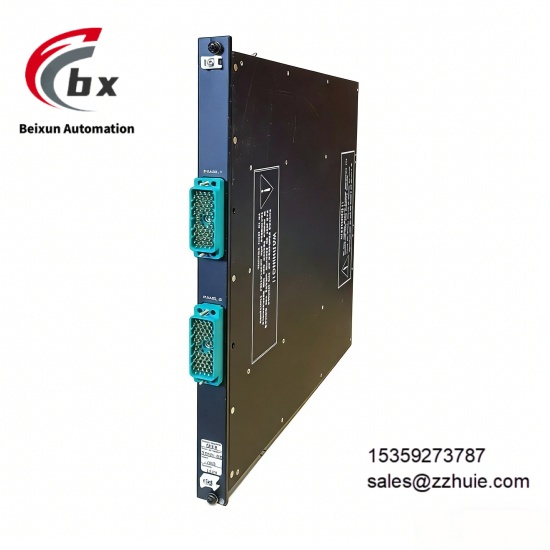

TRICONEX 2658 3000280-000 Industrial communication module

TRICONEX 2658 3000280-000 Industrial communication module

Specific Parameters

Module Type Industrial Communication Module

Communication Interfaces RS-232, RS-485, CAN Bus

Supported Protocols Modbus, Profinet

Data Processing Speed High-speed data processing, capable of quickly processing large amounts of data

Rated Supply Voltage 24VDC

Voltage Range 18-32VDC

Operating Temperature Range -40℃ to +70℃

Storage Temperature Range -40℃ to +85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20

Weight Approx.0.9kg

Mounting Type Standard 35mm DIN Rail Mounting, TRICONEX System Rack Mounting

Electromagnetic Compatibility Compliant with EN 61000-6-2/6-4 Standards

Safety Integrity Level SIL3, Compliant with IEC 61508 Standard

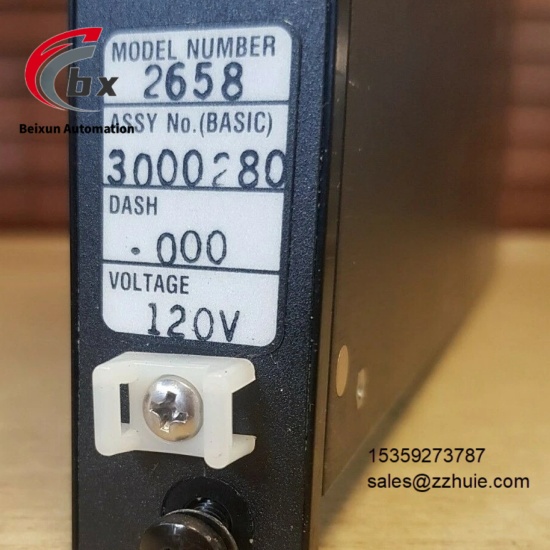

Product Number 3000280-000

Isolation Type Electrical Isolation between Channels, Isolation between Communication Interfaces and System Bus

Product Performance

High-speed Data Processing Performance: Possesses high-speed data processing capability, can quickly process a large amount of transmitted data in industrial sites, ensure the real-time performance of data interaction, and meet the strict requirements for data processing speed in industrial automation scenarios.

Multi-interface Compatibility Performance: Integrates multiple communication interfaces including RS-232, RS-485 and CAN Bus, supports mainstream communication protocols such as Modbus and Profinet, can achieve seamless communication with equipment from different manufacturers, and adapts to various industrial application scenarios.

Reliable Transmission Performance: Adopts reliable communication protocols and data transmission mechanisms, built-in data verification and error correction functions, ensures the accuracy and integrity of data transmission, and avoids data loss or disorder.

Anti-interference Performance: Complies with EN 61000-6-2/6-4 electromagnetic compatibility standards, possesses strong anti-interference ability, can effectively resist various interferences such as power grid harmonics, equipment start-stop impact and space electromagnetic radiation in industrial sites, and no signal abnormality during long-term operation.

Wide Temperature Adaptation Performance: Operating temperature covers -40℃ to +70℃, can work stably in extremely cold or high-temperature environments, adapts to various harsh industrial sites, no constant temperature control required, trouble-free operation all-weather.

Hot Swap Performance: Supports online hot swapping, can replace the module without stopping the system, does not affect the overall system operation, reduces unplanned downtime and improves factory production efficiency.

System Compatibility Performance: Perfectly adapts to TRICONEX Trident series and Tricon CX series safety control systems, can be seamlessly connected with the same series of digital input modules, analog input modules and output modules, completes system integration without additional debugging.

Easy Operation Performance: Provides simple and easy-to-use programming interfaces and user interfaces, facilitating users’ development, debugging and maintenance, reducing operation difficulty and improving work efficiency.
