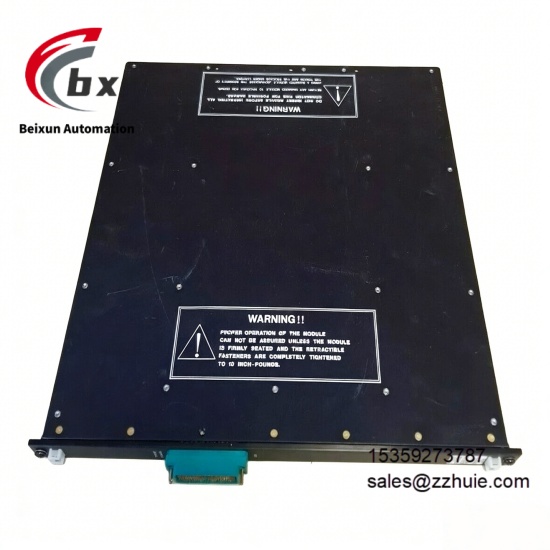

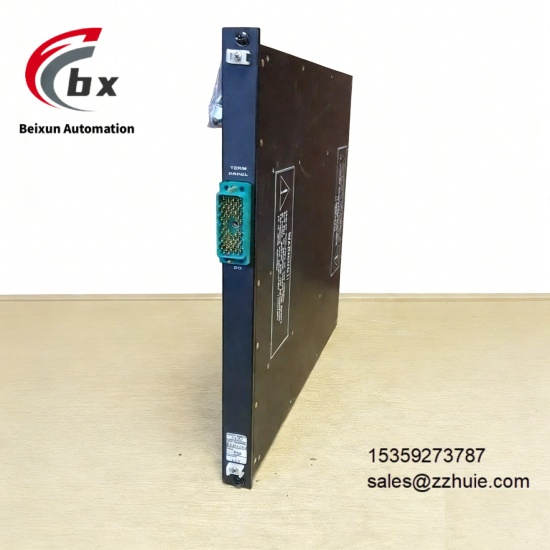

TRICONEX 2652 3000107-350 Redundant digital output module

TRICONEX 2652 3000107-350 Redundant digital output module

Specific Parameters

Output Type Digital Output (DO)

Number of Outputs 8 points, grouped common connection

Rated Voltage 24VDC

Voltage Range 18-32VDC

Output Contact Type Form A (Normally Open)

Contact Rating 250VAC/3A, Resistive Load; 24VDC/3A, Resistive Load

Architecture Type Redundant Architecture

Isolation Type Optoelectronic Isolation between Channels, Isolation between Channels and System Bus

Diagnostic Functions Short-circuit Protection, Open-circuit Detection, Load Fault Detection, Channel Fault Self-diagnosis

Response Time ＜4ms

Operating Temperature Range -40℃ to +70℃

Storage Temperature Range -40℃ to +85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20

Weight Approx.0.85kg

Mounting Type Standard 35mm DIN Rail Mounting, TRICONEX System Rack Mounting

Safety Integrity Level SIL3, Compliant with IEC 61508 Standard

Electromagnetic Compatibility Compliant with EN 61000-6-2/6-4 Standards

Supply Voltage 24VDC±10%

Product Number 3000107-350

Product Performance

Redundant Fault-tolerant Performance: Adopts redundant mechanism and professional fault-tolerant technology, can automatically detect and isolate faults, when a single channel or component fails, the system can still maintain normal operation without single point of failure, ensuring continuous availability of safety-critical applications.

Safety Guarantee Performance: Meets SIL3 Safety Integrity Level requirements, strictly complies with IEC 61508 international safety standards, equipped with complete electrical isolation design, effectively prevents fault propagation, ensures reliable execution of safety interlock actions under hazardous working conditions, and reduces accident risks.

Comprehensive Diagnostic Performance: Built-in complete diagnostic functions including short-circuit protection, open-circuit detection, load fault detection and channel fault self-diagnosis, can monitor the status of output channels and loads in real time, quickly report faults to the system when faults occur, supports remote diagnosis and maintenance, shortens fault troubleshooting time and improves system maintainability.

High-speed Response Performance: Response time is less than 4ms, can quickly execute control commands, ensure timely start and stop of relevant equipment under emergency working conditions, prevent accident expansion, and meet strict requirements for response speed in safety-critical applications.

Wide Temperature Adaptation Performance: Operating temperature covers -40℃ to +70℃, can work stably in extremely cold or high-temperature environments, adapts to various harsh industrial sites, no constant temperature control required, trouble-free operation all-weather.

Electromagnetic Compatibility Performance: Complies with EN 61000-6-2/6-4 electromagnetic compatibility standards, possesses strong anti-interference ability, can effectively resist various interferences such as power grid harmonics, equipment start-stop impact and space electromagnetic radiation in industrial sites, no signal disorder and no misoperation during long-term operation.

Hot Swap Performance: Supports online hot swapping, can replace the module without stopping the system, does not affect the overall system operation, reduces unplanned downtime and improves factory production efficiency.

System Compatibility Performance: Perfectly adapts to TRICONEX Trident series and Tricon CX series safety control systems, can be seamlessly connected with the same series of digital input modules, analog input modules and communication modules, completes system integration without additional debugging, compatible with mainstream industrial safety control standards.
