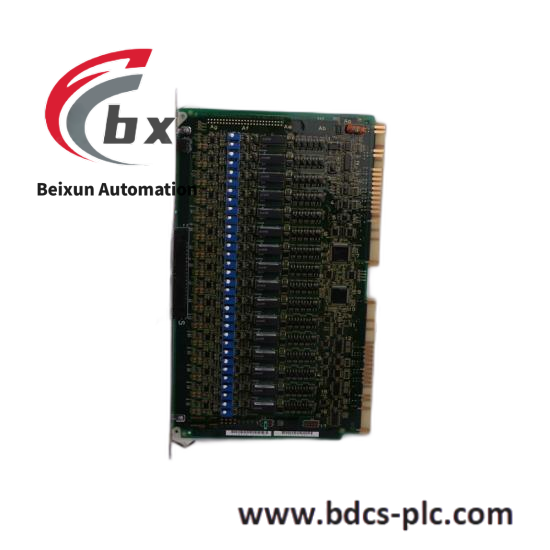

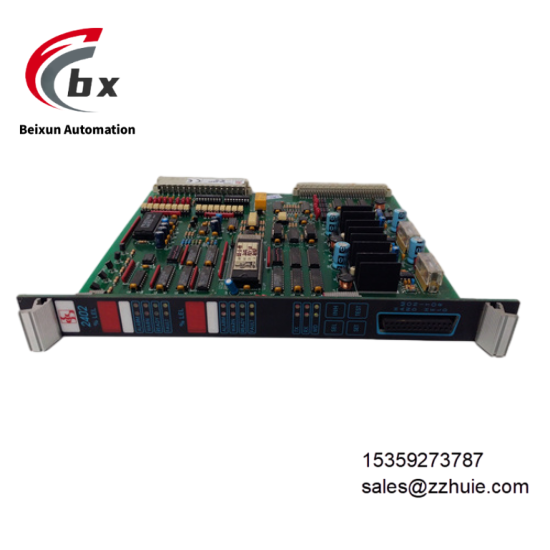

TRICONEX 2402 Digital output basic board module
Specific Parameters
Brand TRICONEX (Original Authentic, a subsidiary of Schneider Electric), Product Series TRICONEX Trident Series Safety Instrumented System (SIS)
Product Type High-Voltage Digital Output Baseplate Kit, Safety System Supporting Component, Original Authentic Spare Part, Compatible with High-Voltage Digital Output Modules
Model TRICONEX 2402
Country of Origin United States
Compatible Devices TRICONEX Trident Series Safety Control System Racks, High-Voltage Relay Output Modules, Tricon Control Processors, Motors, Heaters, Circuit Breakers, Large-Scale Lighting Equipment
Core Functions Provide Electrical Connection and Signal Conversion, Realize High-Voltage Isolation, Support High-Voltage Load Driving, Simplify On-site Wiring, Support Fault Diagnosis Signal Transmission
Product Structure Standard rack-mounted kit, including I/O baseplate (Model 3000764-300), Relay Output External Terminal Panel (Model 3000763-110), I/O Interconnection Assembly (2921), Slot Cover (2900), and 10-foot Interface Cable (Model 9106-310), industrial-grade protective shell, clear terminal identification, mechanical anti-misinsertion design, color is Gray
Compatible Modules Various specifications of relay output modules, supporting 2A/75-264VAC Solid State Relays, 2A/4-60VDC Solid State Relays, 1.5A/40-200VDC Solid State Relays and Dry Contact Relays
Output Voltage Range Supports driving loads up to 440VAC or 125VDC
Isolation Method Electrical Isolation, Dual Isolation between Low-Voltage Control Circuit and High-Voltage Power Circuit, Isolation Performance Complies with Industrial High-Voltage Safety Standards
Response Time Depends on the supporting relay module, solid state relays have fast response speed, and dry contact relays have stable response
Surge Voltage Protection Equipped with high-voltage surge protection capability to ensure the safety of modules and loads
Power Supply No Independent Power Supply Required, Indirectly Powered by Trident System Rack and Supporting Relay Modules
System Compatibility TRICONEX Trident Series Safety Control Systems, TriStation 1131 Programming Software, Supporting TMR HDLC I/O Bus Protocol
Safety Certifications IEC 61131-2, CE, UL, RoHS, NFPA 85, SEMI S2
Maximum Power Consumption No more than 3W (excluding power consumption of supporting relay modules)
Operating Temperature Range -20°C to +70°C
Storage Temperature Range -40°C to +85°C
Relative Humidity 5% to 95%, Non-Condensing
Protection Class IP20 (Complies with IEC 60529 Standard, Suitable for Cabinet Installation)
Vibration Resistance Frequency 10-500Hz, Acceleration 15g (Sine Wave); Frequency 500-2000Hz, Acceleration 10g (Random Wave), Complies with IEC 60068-2-6 Standard
Shock Resistance Peak Acceleration 50g, Duration 11ms (Half-Sine Wave), Complies with IEC 60068-2-27 Standard
Mounting Method Trident Standard Rack Slot Installation, Supporting Online Hot Swapping, Occupying a Single Slot, Wiring Method is Terminal Wiring
Dimensions 178mm×249mm×38mm (Width×Length×Depth), Conforming to Trident System Standard Dimensions
Weight Approximately 0.9kg (Including Full Set of Components)
Interface Cable 10-foot Shielded Interface Cable, Supporting Stable Long-Distance Signal Transmission, Length Can Be Customized According to Requirements
Product Performance
Adaptability Performance: Fully compatible with the TRICONEX Trident Series Safety Control System, supporting mixed use of various specifications of relay output modules, no independent power supply required, clear terminal identification simplifies on-site wiring process, seamlessly integrated with TriStation 1131 programming software, can directly configure output parameters, plug-and-play, high integration efficiency, adapting to various high-voltage load control scenarios.
Safety Performance: Certified by multiple authoritative safety standards, adopting multi-layer high-voltage isolation design, effectively isolating low-voltage control circuits and high-voltage power circuits, equipped with surge voltage protection capability, preventing high-voltage interference from damaging the control system, providing double safety guarantee for maintenance personnel and equipment, complying with high-voltage industrial safety specifications.
Transmission and Driving Performance: Supports driving up to 440VAC high-voltage loads, can directly drive high-power industrial equipment such as motors, heaters, and circuit breakers, stable signal transmission without crosstalk or signal loss, the supporting interface cable adopts shielding design to ensure the stability and anti-interference ability of long-distance control signal transmission.
Operation and Maintenance Performance: Modular kit design, supporting online hot swapping, supporting relay modules can be replaced individually without shutdown during maintenance, component status indicators intuitively feedback operation status, built-in comprehensive diagnosis function, which can monitor relay coil status, contact action and load current, quickly locate fault points, simplifying the operation and maintenance process.
Environmental Performance: Manufactured with industrial-grade high-stability components, it has strong anti-electromagnetic interference and anti-radio frequency interference capabilities, can operate continuously and stably for a long time in a wide temperature range of -20°C to +70°C and high humidity environments, has excellent vibration and shock resistance, adapting to various harsh industrial sites such as power and heavy industry manufacturing.
