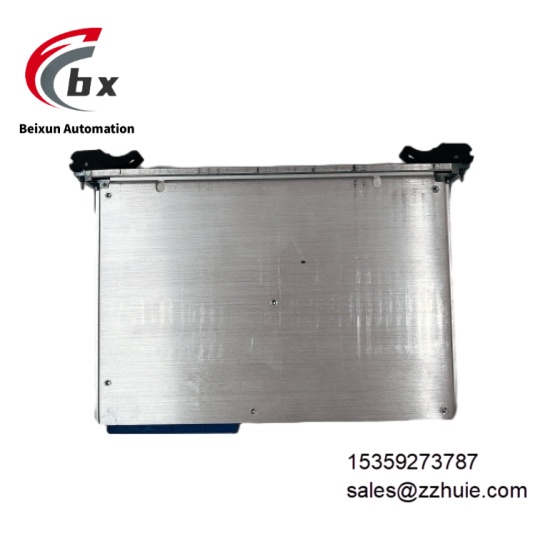

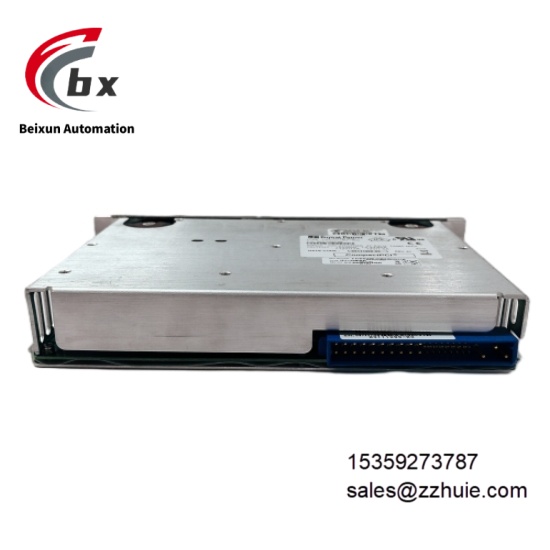

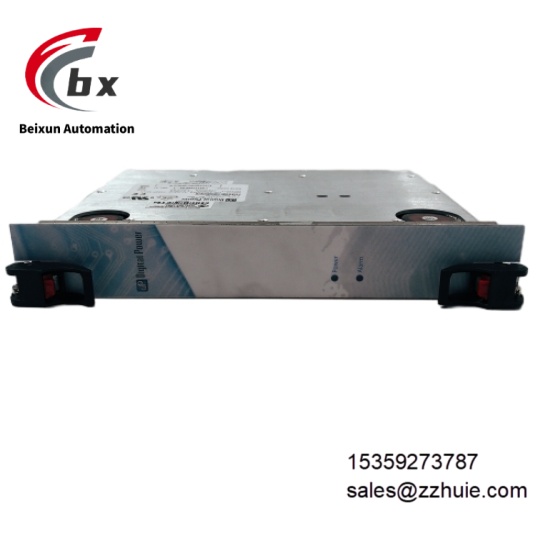

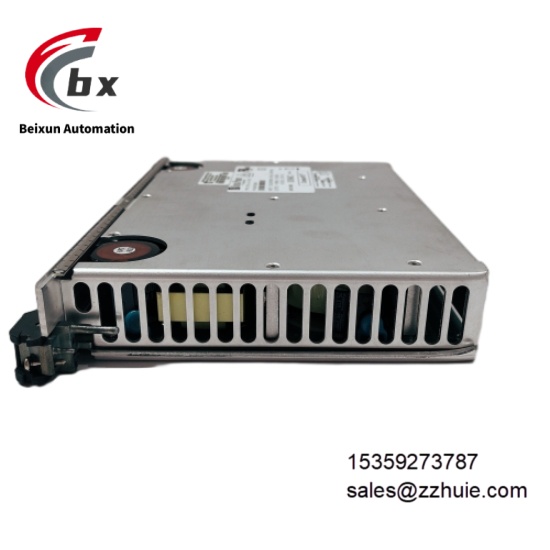

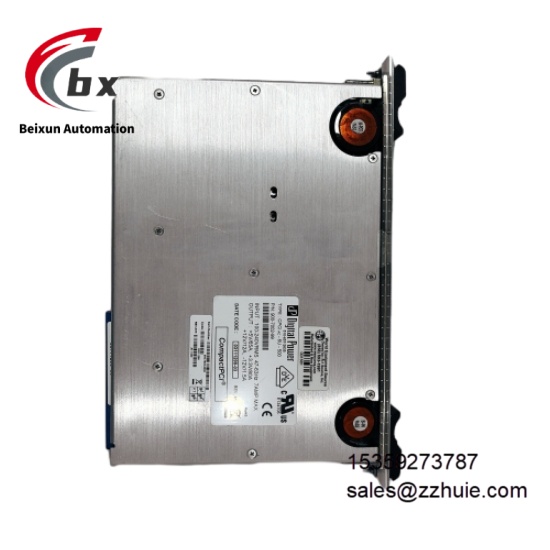

Telkoor CPCI-AC-6U-500 900-7002-99 power module

Telkoor CPCI-AC-6U-500 900-7002-99 power module

Specific Parameters

• Electrical ParametersInput Voltage: 85-264Vac, single-phase auto-rangingInput Frequency: 47-435HzPower Factor: Typical 0.98 at 230Vac full load, 0.99 at 115Vac full loadRated Power: 500W continuous outputOutput Voltage: Multiple DC outputs including +3.3V, +5V, +12V, -12VOutput Current: 3.3V output up to 80AConversion Efficiency: >80% at 230Vac full load, >76% at 120Vac full loadInput Protection: 10A 250Vac slow-blow IEC fuse, varistor transient suppressionOutput Protection: Overvoltage, undervoltage, overcurrent, short-circuit, overtemperature protectionInterface Type: 47-pin Positronic or equivalent standard connectorRedundancy Support: Integrated ORing FET/diode, supporting N+1 redundancy mode and parallel current sharing
• Environmental ParametersOperating Temperature: -20℃ to 55℃, derated output from 55℃ to 70℃Storage Temperature: -40℃ to 85℃Relative Humidity: 5% to 95% (non-condensing)Protection Rating: IP20 (module itself)Anti-interference Performance: Complies with Mil STD 461E, EN 55022 A standards
• Mechanical ParametersOverall Dimensions: 6U×8HP×160mm (compliant with CPCI mechanical specifications)Housing Material: Aluminum case, with both heat dissipation and RFI shielding functionsWeight: Approximately 1.8kgMounting Method: Vertical insertion installation in 19-inch rackStatus Indication: Front-panel LED indicators, showing power operation and fault status

Product Performance

High power density: 500W power output in 6U size, with a power density of 83.3 watts per cubic inch, adapting to the layout needs of compact CPCI systems.

Excellent conversion efficiency: Maintains high-efficiency output within a wide input voltage range, with efficiency exceeding 80% at 230Vac full load, reducing energy consumption and heat dissipation burden.

Strong output stability: Dual-converter parallel design ensures high-current supply for 3.3V and 5V channels; combined with synchronous rectification technology, it features low output ripple and voltage accuracy controlled within ±1%.

Superior system compatibility: Fully compliant with the PICMG 2.11 standard, the 47-pin standard interface directly adapts to CPCI 2.0/3.0 architecture devices without additional adapter modules.

High operational reliability: Integrated with multiple electrical protections and electromagnetic shielding design, it operates stably in a wide temperature range of -20℃ to 55℃, with Mean Time Between Failures (MTBF) ≥1×10⁵ hours.

Optimal maintenance convenience: Supports hot-swap function, allowing module replacement without system shutdown; front-panel LED indicators provide real-time status feedback, simplifying troubleshooting processes.
