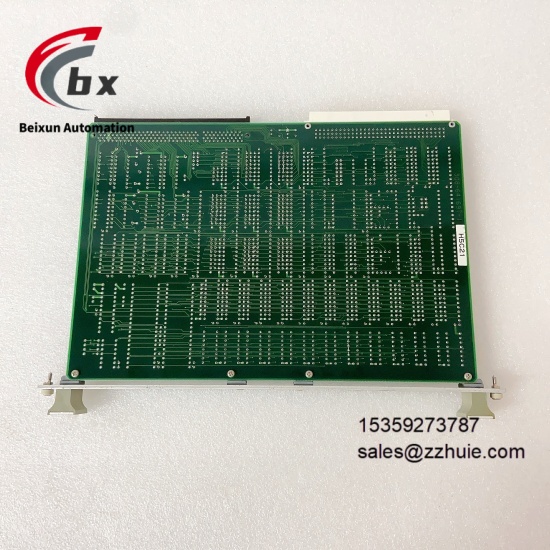

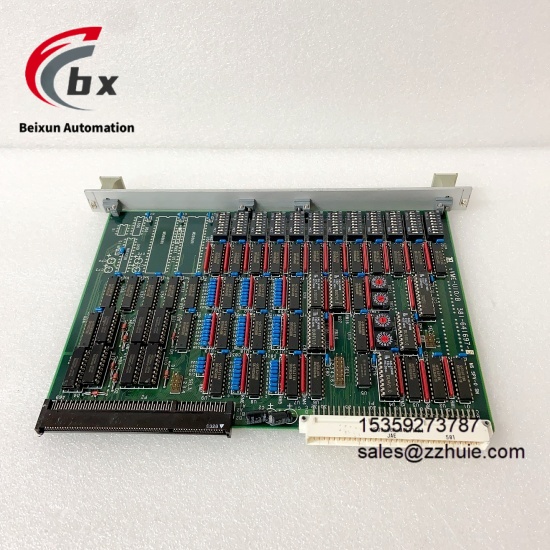

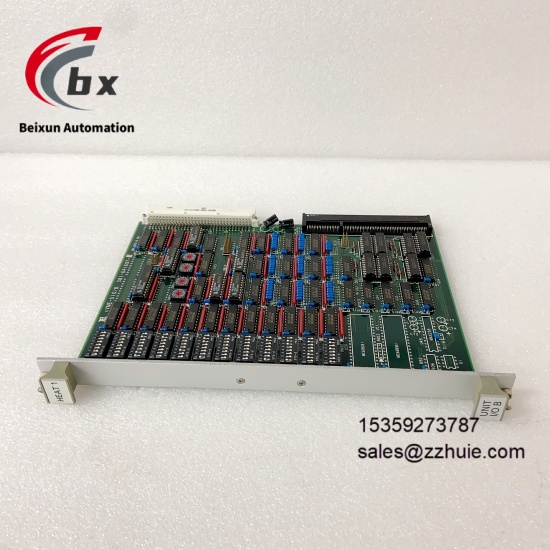

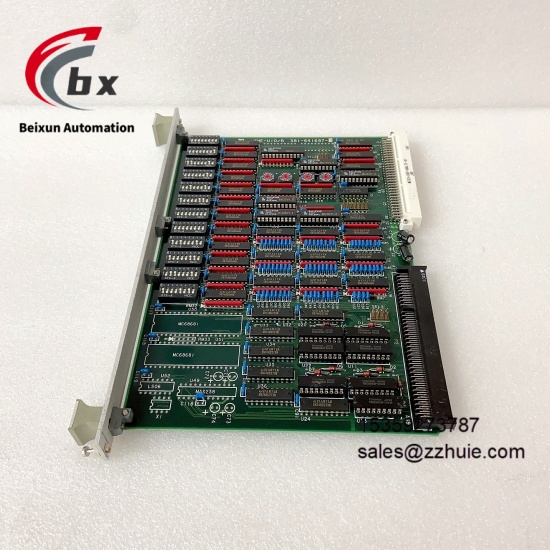

TEL VME-U10/B 381-641697-5 Temperature control and signal output module
Specific Parameters
Brand TEL (Tokyo Electron, Japanese Brand)
Product Series TEL TVB Series Temperature Control and Signal Output Module
Product Type Dedicated Temperature Control and Signal Output Module for Semiconductor and Industrial Automation
Model TVB6003-1/EIMC 1381-648241-12
Supply Voltage 24VDC±10%, rated power consumption ≤15W
Channel Configuration 8-channel logic signal processing and output
Temperature Control Accuracy ±0.1℃, temperature detection range -50℃ to +200℃
Communication Protocols Supports RS485 bus protocol, Ethernet protocol
Bus Transmission Speed Up to 80Mbps
Communication Controller Enhanced Serial Communication Controller (Zilog Z85230 ESCC)
Communication Ports Two synchronous/asynchronous serial communication ports
Output Type PWM output, analog output, digital output
Operating Temperature Range -20℃ to +65℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, No Condensation
Alarm Methods Pop-up window alarm, voice alarm
Installation Method Standard DIN rail mounting, compatible with DCS system rack
Physical Weight Approximately 1.2kg
Product Performance
With ±0.1℃ high-precision temperature control capability and fast response mechanism, it can real-time capture subtle temperature changes and complete adjustment, maintain stable target temperature, and meet the strict temperature control requirements of semiconductors and precision equipment.
Integrated with 8-channel logic signal processing unit, it supports PWM, analog and digital multi-type outputs, can flexibly connect heating, cooling equipment and various sensors, adapting to diverse industrial control scenarios.
Equipped with an enhanced serial communication controller, the two serial communication ports can realize signal routing. The bus transmission speed reaches 80Mbps, and with multi-protocol compatibility, it realizes high-speed data interaction and remote monitoring with DCS system.
Supports dual alarm functions of pop-up window and voice. When the temperature exceeds the preset range, it triggers an alarm immediately, quickly reminding staff to handle abnormalities, avoiding equipment damage and production losses.
It has programmable characteristics, allowing configuration of temperature thresholds, control algorithms and alarm conditions through software to adapt to different process requirements. The modular design facilitates integration and later maintenance, reducing system operation and maintenance costs.
Industrial-grade anti-interference design can resist electromagnetic interference, temperature fluctuation and humidity impact, operate stably for a long time in complex industrial environments, and its reliability is verified by strict tests.
